Name: SS8550DTA
Brand: ON Semiconductor
SKU: SS8550DTA
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor SS8550DTA

Part No.:: SS8550DTA

Manufacturer:: ON Semiconductor

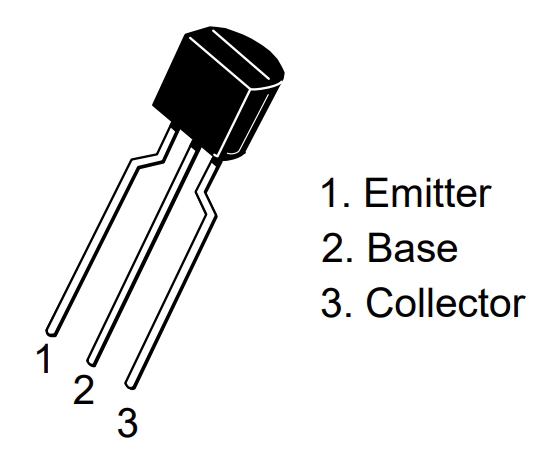

Package:: TO-226-3, TO-92-3 (TO-226AA) Formed Leads

Datasheet:: SS8550DTA.pdf

Description:: TRANS PNP 25V 1.5A TO92-3

In Stock:: 2204

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SS8550DTA Specifications

Packaging:
Cut Tape (CT),Tape & Box (TB)
Series:
-
ProductStatus:
Active
TransistorType:
PNP
Current-Collector(Ic)(Max):
1.5 A
Voltage-CollectorEmitterBreakdown(Max):
25 V
VceSaturation(Max)@IbIc:
500mV @ 80mA, 800mA
Current-CollectorCutoff(Max):
100nA
DCCurrentGain(hFE)(Min)@IcVce:
160 @ 100mA, 1V
Power-Max:
1 W
Frequency-Transition:
200MHz
OperatingTemperature:
150°C (TJ)
MountingType:
Through Hole
