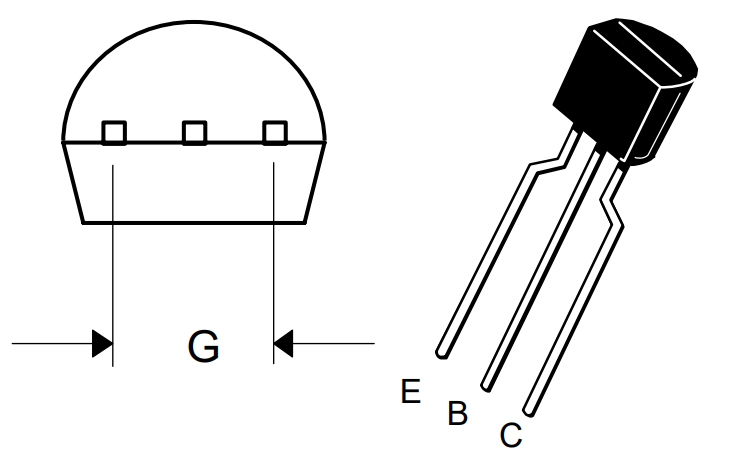

Micro Commercial Co SS8550-D-AP

Part No.:: SS8550-D-AP

Manufacturer:: Micro Commercial Co

Package:: TO-226-3, TO-92-3 (TO-226AA) Formed Leads

Datasheet:: SS8550-D-AP.pdf

Description:: TRANS PNP 25V 1.5A TO92

In Stock:: 2740

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SS8550-D-AP Specifications

Packaging:
Tape & Box (TB)
Series:
-
ProductStatus:
Obsolete
TransistorType:
PNP
Current-Collector(Ic)(Max):
1.5 A
Voltage-CollectorEmitterBreakdown(Max):
25 V
VceSaturation(Max)@IbIc:
800mV @ 80mA, 800mA
Current-CollectorCutoff(Max):
100nA
DCCurrentGain(hFE)(Min)@IcVce:
160 @ 100mA, 1V
Power-Max:
1 W
Frequency-Transition:
190MHz
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Through Hole

SS8550-D-AP this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SS8550-D-AP price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SS8550-D-AP to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SS8550-D-AP information

Views：

SS8550-D-AP Typical application Circuitry

SS8550-D-AP

SS8550-D-AP is a specific type of semiconductor device, characterized by its unique functionality and used in various electronic circuits. This component plays a crucial role due to its distinct features and application versatility.

Functionality of SS8550-D-AP

A PNP bipolar junction transistor (BJT) is the SS8550-D-AP. It's mainly used for amplification and switching functions. The PNP designation indicates that this transistor is active when the base is negatively charged relative to the emitter.

Application Scenarios for SS8550-D-AP

1. Audio Amplifiers: Widely used in amplifying audio signals in various devices.

2. Switching Operations: Ideal for use in switching circuits, such as those in power regulators.

3. Driver Stages: Commonly used in the driver stages of complex electronic amplifiers.

Parameter Features of SS8550-D-AP

- Collector-Base Voltage (VCBO): -40V

- Voltage at Collector-Emitter (VCEO): -25V

- VEBO, or Emitter-Base Voltage: -6V

- -1.5A for Collector Current (IC)

- Power Dissipation (P): 1W

Detailed Circuit Connection for Audio Amplifier Application

The use of SS8550-D-AP in an audio amplifier circuit is a typical application.

Here's how it can be connected:

1. Setting Up Transistor Biasing

- Base Resistance Connection: A resistor must be connected between the base of SS8550-D-AP and the input signal source. This resistor controls the base current and sets the operating point of the transistor.

2.Emitter Circuit Configuration

- Emitter Resistor Inclusion: A resistor in the emitter circuit is necessary for thermal stability and to set the gain of the amplifier.

3.Output Signal Development

-Collector Resistor Configuration: A resistor in the collector circuit is important for forming the output signal and managing the collector current.

4.AC Signal Handling

- Input and Output Coupling Capacitors: Use capacitors at the input (Ci) and output (Co) to filter DC components and pass AC signals.

5.Power Supply Arrangement

- Voltage Supply and Grounding: Connect the collector of SS8550-D-AP to a positive voltage supply (VCC) and the emitter to the ground through an emitter resistor.

Circuit Design Considerations

- Biasing Accuracy: Ensuring accurate transistor biasing for stable performance.

- Heat Dissipation: In high-power applications in particular, implementing appropriate cooling for thermal management.

- Reducing Distortion: Selecting the right component values to minimize signal distortion.

Incorporating SS8550-D-AP into an audio amplifier involves careful consideration of these aspects. The circuit configuration and component selection should be optimized to fulfill the specific demands of the audio amplification application, ensuring the transistor's efficient and reliable operation.
