NXP USA Inc. SA602AD,602

Part No.:: SA602AD,602

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: SA602AD,602.pdf

Description:: IC MIXER 500MHZ UP CONVRT 8SO

In Stock:: 2256

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SA602AD,602 Specifications

Packaging:
Tube
Series:
SA602
ProductStatus:
Obsolete
RFType:
Cellular, HF, UHF, VHF
Frequency:
500MHz
NumberofMixers:
1
Gain:
17dB
NoiseFigure:
5dB
SecondaryAttributes:
Up Converter
Current-Supply:
2.4mA
Voltage-Supply:
4.5V ~ 8V
MountingType:
Surface Mount

SA602AD,602 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SA602AD,602 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SA602AD,602 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SA602AD,602 information

Views：

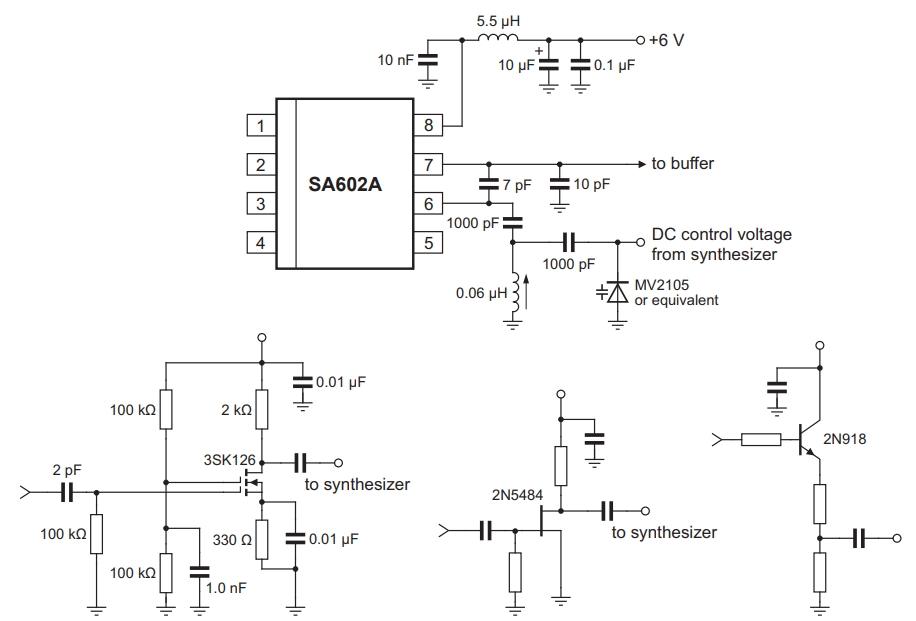

SA602AD,602 Typical application Circuitry

SA602AD,602

The SA602AD,602 is a low-power, high-performance monolithic double-balanced mixer with integrated oscillator, designed for use in radio frequency (RF) and intermediate-frequency (IF) applications.

Application Scenarios: The SA602AD,602 is commonly used in RF applications such as cellular phones, wireless communication devices, radio receivers, and other electronic devices where signal mixing or frequency conversion is required. It is particularly well-suited for uses where performance, size, and power consumption are crucial.

Important Details: Strong resistance to interference and exceptional sensitivity are features of the SA602AD,602. It includes an on-chip oscillator and can operate over a wide voltage range. The chip provides high gain and has a low noise figure, making it effective for receiving weak signals in noisy environments.

Designing an RF Receiver Circuit:

1. Power Supply Connection: Start by connecting the power supply to pin 8 (VCC) of the SA602AD,602. Ensure the supply voltage is within the recommended range for the chip to function optimally.

2. RF Input Matching: Connect the RF input signal to pin 1 (RF IN). It's crucial to match the impedance of the RF source with the input impedance of the SA602AD,602 to ensure maximum signal transfer and minimal reflection.

3. Local Oscillator (LO) Configuration: If you're using the integrated oscillator, connect an inductor or a resonant circuit to pin 7 (OSC). Alternatively, for an external LO, connect it to pin 6 (LO IN). The LO frequency determines the mixing products and should be chosen according to the desired IF.

4. Intermediate Frequency (IF) Output: The IF output is available at pin 4 (IF OUT). This pin should be connected to subsequent stages of your receiver, such as filters or amplifiers. Proper impedance matching is essential to maintain signal integrity.

5. Biasing and Decoupling: Apply proper biasing to pin 5 (BIAS) and use decoupling capacitors on the power supply line close to the VCC pin to minimize noise and stabilize the operation.

6. Grounding: Ensure that all ground pins (pins 2 and 3) are connected to a common ground. A good grounding scheme is crucial to minimize noise and potential ground loops.

Design Considerations: When designing with the SA602AD,602, it's essential to consider the layout carefully, especially for high-frequency signals. Keep the signal paths short and use proper shielding techniques to prevent interference. Additionally, the choice of external components, such as inductors and capacitors for the oscillator and IF sections, should be made carefully to match the desired frequencies and to ensure stability of the circuit.

In conclusion, the SA602AD,602 is a versatile and efficient choice for RF and IF applications, offering a mix of performance, power efficiency, and integration. Careful design and layout, along with proper component selection, are key to harnessing its full potential in any application.
