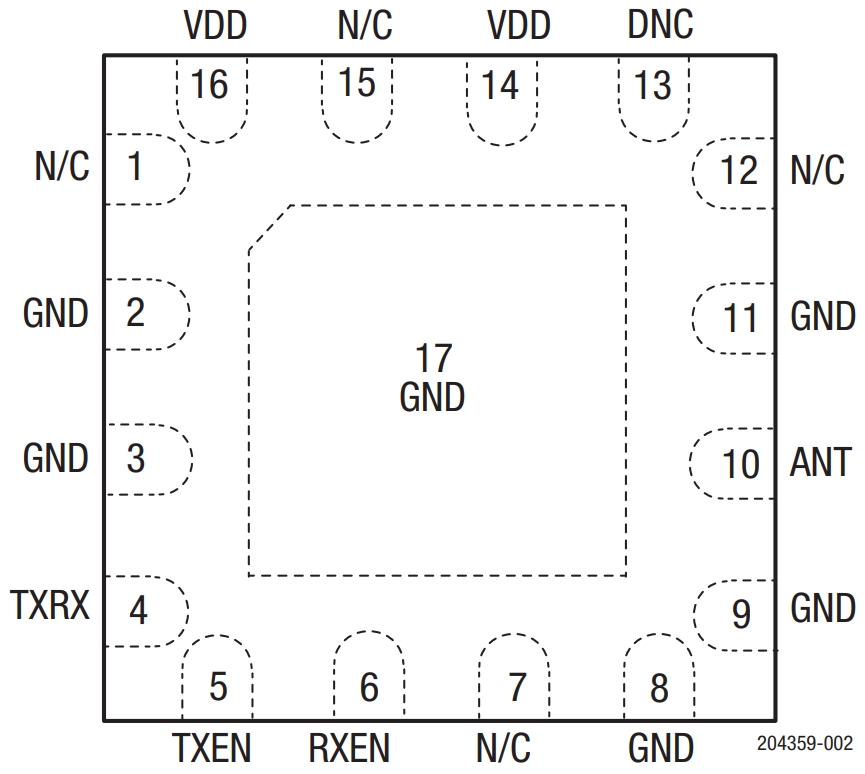

RFX2401C Typical application Circuitry

RFX2401C

The RFX2401C is a Radio Frequency (RF) Front-End Integrated Circuit (IC), primarily designed for use in wireless communication applications. It is commonly used in systems requiring RF amplification, signal filtering, and up/down-conversion, making it suitable for applications such as wireless routers, RF transceivers, and IoT (Internet of Things) devices. The chip is known for its versatility and performance in RF applications.

Key Features of RFX2401C:

- RF Amplification: The RFX2401C is capable of amplifying RF signals, which is essential in wireless communication for enhancing signal strength.

- Integrated Filters: It includes integrated filters for signal clarity, reducing noise and interference in the transmitted and received signals.

- Frequency Conversion: The chip can perform frequency up/down-conversion, crucial for matching the frequencies of different stages in a communication system.

Application Scenario: Use in an IoT Device RF Module

In an IoT device's RF module, the RFX2401C can be used for signal amplification and processing. Here's a detailed guide on integrating it into such a module:

- Power Supply Connection:

- Attach the power supply to the RFX2401C's VDD pin. This pin requires a stable voltage source within the chip's operating range.

- RF Input Connection:

- The RF_IN pin is where the RF signal to be processed is input. This pin ought to be linked to the output of the stage that came before it, such as an antenna or a receiver.

- RF Output Connection:

- The RF_OUT pin provides the processed RF signal. It should be connected to the next stage in the RF chain, such as an amplifier or a transceiver module.

- Grounding:

- Ensure that the GND pin is connected to the system ground. In order to reduce noise and RF interference, proper grounding is essential.

- Control Pins:

- The RFX2401C may have control pins for adjusting the operation modes, like gain control or filter selection. These should be connected to the controlling unit, like a microcontroller or a processor.

Design Considerations:

When designing a circuit with the RFX2401C, several factors should be considered:

- Stable Power Supply:

- The power supply to the RFX2401C must be stable, as fluctuations can affect RF performance.

- Impedance Matching:

- Proper impedance matching is crucial in RF circuits to ensure maximum signal transfer and reduce reflections.

- Thermal Management:

- RF circuits can generate significant heat, so it's important to consider thermal management to maintain the performance of the RFX2401C.

- Signal Integrity:

- Especially in high-frequency applications, the PCB's routing and layout should be planned to preserve signal integrity.

Incorporating the RFX2401C into an IoT device's RF module involves careful attention to power supply stability, impedance matching, thermal management, and signal integrity, leveraging the chip's capabilities in RF amplification and signal processing to enhance the overall system performance.

RFX2401C information

RFX2401C Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
RFType:
802.15.4, Zigbee®
Frequency:
2.4GHz ~ 2.5GHz
Features:
-
