Texas Instruments REF3320AIDCKR

Part No.:: REF3320AIDCKR

Manufacturer:: Texas Instruments

Package:: SC-70, SOT-323

Datasheet:: REF3320AIDCKR.pdf

Description:: IC VREF SERIES 0.15% SC70-3

In Stock:: 3814

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

REF3320AIDCKR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
2.048V
Voltage-Output(Max):
-
Current-Output:
5 mA
Tolerance:
±0.15%
TemperatureCoefficient:
30ppm/°C
Noise-01Hzto10Hz:
55µVp-p
Noise-10Hzto10kHz:
-
Voltage-Input:
2.248V ~ 5.5V
Current-Supply:
8.5µA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

REF3320AIDCKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including REF3320AIDCKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for REF3320AIDCKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

REF3320AIDCKR information

Views：

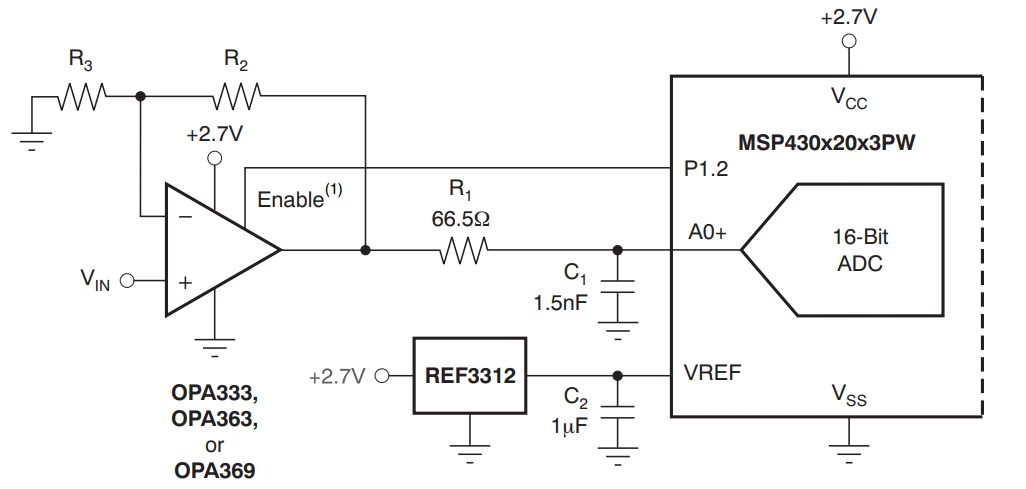

REF3320AIDCKR Typical application Circuitry

REF3320AIDCKR

The REF3320AIDCKR is a precision, low-power, low-dropout voltage reference. It's known for its stability and accuracy, making it an essential component in applications requiring precise voltage for calibration or as a reference point.

Characteristics of the REF3320AIDCKR

- High Precision: Offers a stable and precise reference voltage, crucial for applications where accuracy is paramount.

- Low Dropout Voltage: Increases overall system efficiency by operating effectively even with a small variation between the input and reference voltages.

- Low Power Consumption: Perfect for portable and battery-operated applications where power economy is essential.

Applications

The REF3320AIDCKR is suitable for a variety of scenarios, notably:

- Precision Measurement Devices: Providing a stable reference voltage for ADCs and DACs in devices like digital multimeters and oscilloscopes.

- Portable Medical Instruments: Ensuring accurate readings in critical healthcare equipment like portable ECGs or blood glucose monitors.

- Industrial Control Systems: Serving as a precise reference point in PLCs and other automation systems.

Detailed Circuit Integration for Precision Measurement Devices

1. Power Input Configuration: Start by connecting the supply voltage to the VIN pin (pin 1) of the REF3320AIDCKR. It's essential to ensure that the input voltage exceeds the reference voltage by at least the dropout voltage to maintain accurate output. A capacitor (typically 1µF) should be connected close to the VIN pin to stabilize the voltage and filter out noise.

2. Reference Voltage Output: The REF3320AIDCKR provides a fixed reference voltage at the VOUT pin (pin 3). It's advisable to connect a decoupling capacitor (value around 1µF) between this pin and ground to minimize noise and stabilize the reference voltage, especially under varying load conditions.

3. Ground Connection: Ensure the GND pin (pin 2) is properly connected to the system ground. A secure ground connection is crucial for minimizing noise and ensuring the accuracy of the REF3320AIDCKR.

4. Thermal Considerations: Although the REF3320AIDCKR is designed for low power consumption, it's still important to consider thermal factors. Ensure that the layout allows for adequate heat dissipation to maintain temperature stability, which is critical for precision components.

Circuit Design Considerations

While designing a circuit with the REF3320AIDCKR, several key factors need consideration:

- Voltage Stability: Ensure the supply voltage is stable and within the specified range for the REF3320AIDCKR to avoid fluctuations in the reference voltage.

- Load Regulation: Understand the load characteristics to ensure the REF3320AIDCKR can deliver a stable reference under all operating conditions without significant voltage deviations.

- Environmental Factors: Consider the operating temperature range and ensure the REF3320AIDCKR is used within its specified limits to maintain accuracy.

In summary, the REF3320AIDCKR is a highly precise and reliable voltage reference, ideal for applications where accuracy is critical. When integrating the REF3320AIDCKR, especially in precision measurement devices, careful consideration of power input, voltage stability, and environmental factors is essential to leverage its capabilities fully and ensure accurate, stable performance.
