Texas Instruments REF3130AIDBZRG4

Part No.:: REF3130AIDBZRG4

Manufacturer:: Texas Instruments

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: REF3130AIDBZRG4.pdf

Description:: IC VREF SERIES 0.2% SOT23-3

In Stock:: 3861

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

REF3130AIDBZRG4 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
3V
Voltage-Output(Max):
-
Current-Output:
10 mA
Tolerance:
±0.2%
TemperatureCoefficient:
20ppm/°C
Noise-01Hzto10Hz:
39µVp-p
Noise-10Hzto10kHz:
57µVrms
Voltage-Input:
3.05V ~ 5.5V
Current-Supply:
135µA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

REF3130AIDBZRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including REF3130AIDBZRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for REF3130AIDBZRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

REF3130AIDBZRG4 information

Views：

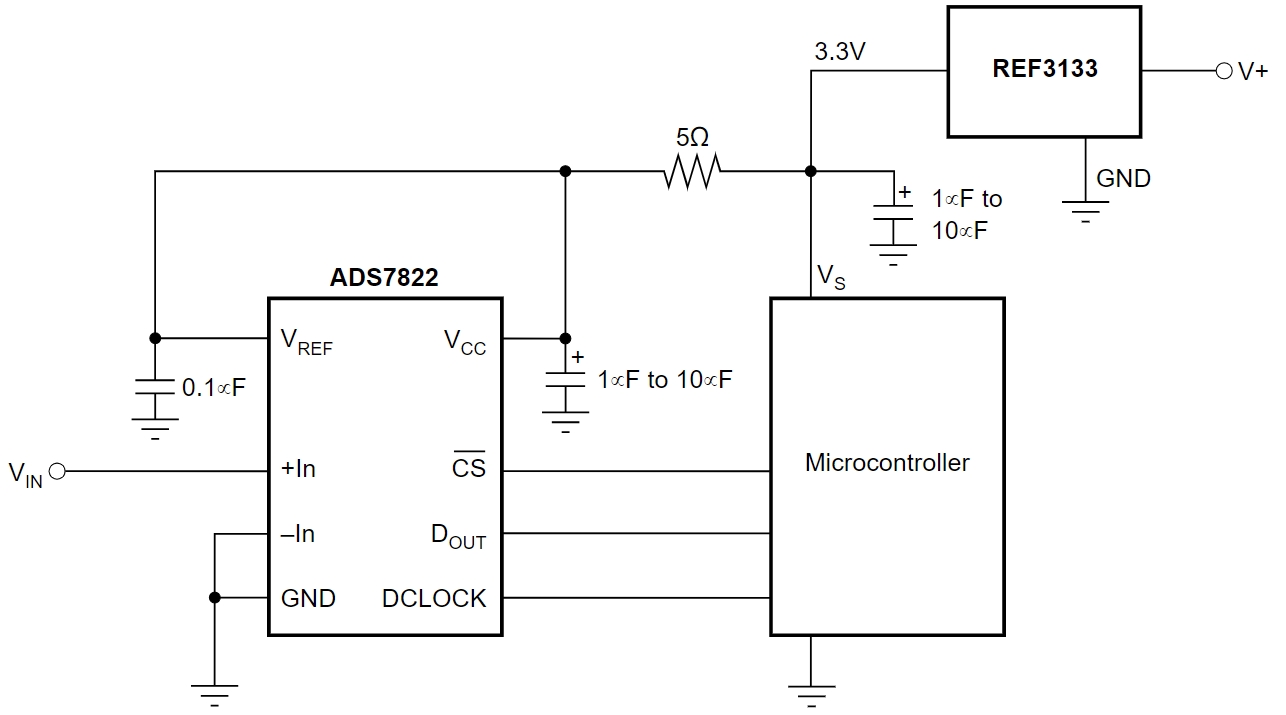

REF3130AIDBZRG4 Typical application Circuitry

REF3130AIDBZRG4

The REF3130AIDBZRG4 is a series voltage reference IC designed by Texas Instruments, notable for its precision, low power consumption, and stability. This IC is part of the REF31xx family and is packaged in a small 3-pin SOT-23 form.

Features and Specifications:

- Output Voltage (VO): Fixed at 3V with a maximum initial accuracy of 0.2%.

- Temperature Coefficient: Maximum of 20 ppm/°C, ensuring stability over temperature variations.

- Input Voltage Range (Vin): Minimum of 3.05V and maximum of 5.5V.

- Supply Current (Iq): Typically 0.1 mA.

- Output Current Capability (Iout/Iz): Up to ±10 mA.

- Operating Temperature Range: From -40°C to 125°C.

- Package: SOT23-3, optimized for small size and low power applications.

Applications:

The REF3130AIDBZRG4 is ideal for portable and battery-powered applications due to its small size and low power requirement. It is also suitable for precision voltage regulation in various electronic circuits.

Example Circuit: Battery-Powered Precision Sensor:

In a battery-powered precision sensor application, the REF3130AIDBZRG4 can be integrated as follows:

1. Power Supply Connection:

- V_IN Pin: Connect a power source between 3.05V and 5.5V.

- Ground: Attach the ground pin to the system ground.

2. Output Voltage:

- V_OUT Pin: Provides the regulated 3V output. Connect this to the sensor circuit requiring a stable reference voltage.

3. Current Handling:

- Ensure the load does not exceed the IC's output current capability of ±10 mA.

4. Temperature Considerations:

- Design the circuit to operate efficiently within the IC's temperature range of -40°C to 125°C.

5. Mounting and Packaging:

- Utilize the compact SOT23-3 package for space-saving in the circuit design.

Design Considerations:

- Input Voltage Range: Ensure the input voltage is within the specified range for stable operation.

- Load Current: The circuit should not demand more than 10 mA from the IC.

- Temperature Range: Consider the operating temperature range for reliable performance in different environments.

In summary, the REF3130AIDBZRG4 is a high-precision, low-power voltage reference IC, well-suited for portable applications and precision voltage regulation in a variety of electronic circuits. Its robust performance parameters, combined with its small footprint, make it a versatile choice for designers.
