What is the Additional Feature ?

Name: REF3120AIDBZRG4
Brand: Texas Instruments
SKU: REF3120AIDBZRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments REF3120AIDBZRG4

Part No.:: REF3120AIDBZRG4

Manufacturer:: Texas Instruments

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: REF3120AIDBZRG4.pdf

Description:: IC VREF SERIES 0.2% SOT23-3

In Stock:: 3912

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

REF3120AIDBZRG4 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
2.048V
Voltage-Output(Max):
-
Current-Output:
10 mA
Tolerance:
±0.2%
TemperatureCoefficient:
20ppm/°C
Noise-01Hzto10Hz:
27µVp-p
Noise-10Hzto10kHz:
39µVrms
Voltage-Input:
2.098V ~ 5.5V
Current-Supply:
135µA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

REF3120AIDBZRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including REF3120AIDBZRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for REF3120AIDBZRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

REF3120AIDBZRG4 information

Views：

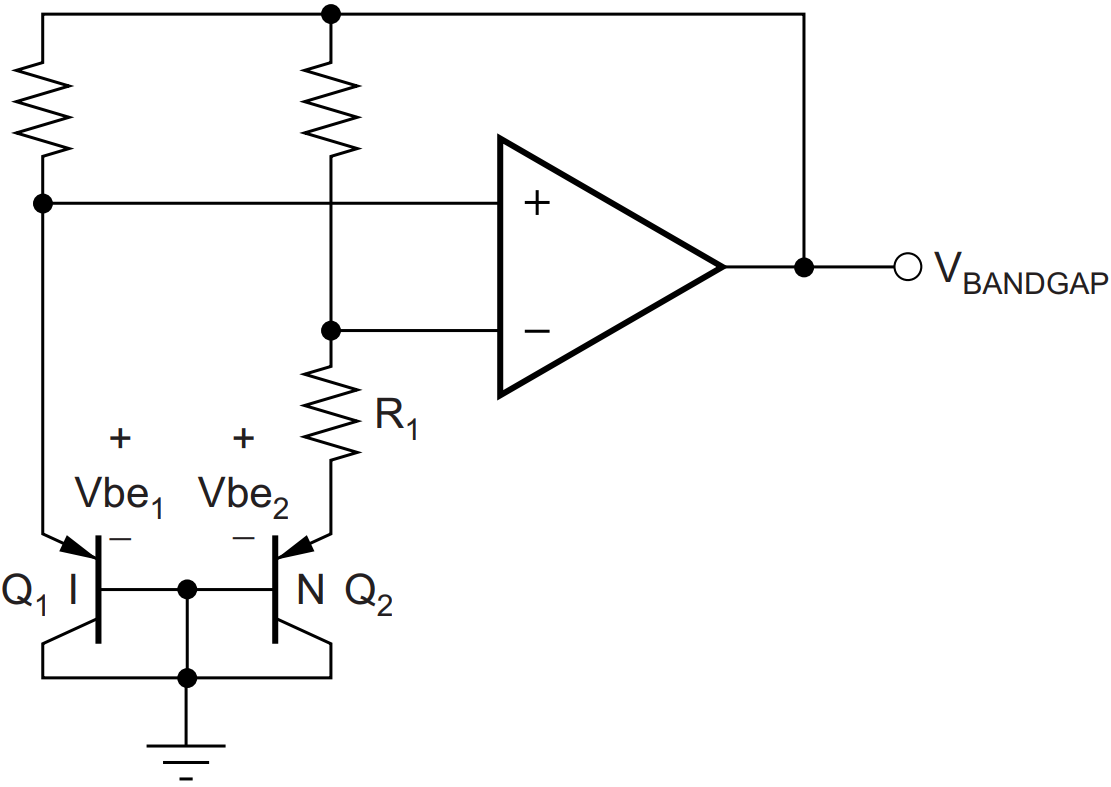

REF3120AIDBZRG4 Typical application Circuitry

REF3120AIDBZRG4

The REF3120AIDBZRG4 is a prominent member of the REF3120 series, produced by Texas Instruments, celebrated for its high accuracy in voltage reference applications. This series is expertly crafted to cater to a wide range of electronic needs, including but not limited to test equipment, precision measurement devices, and industrial controls. The REF3120AIDBZRG4 is particularly noted for its ability to provide a stable and precise voltage reference, a critical aspect in electronics where measurement accuracy is paramount.

1. Connection Methodology and Voltage Stability: The REF3120AIDBZRG4 is designed to function optimally within an input voltage range of 2.7V to 5.5V, accommodating a variety of power sources. The device includes a VDD pin for the input voltage connection and a GND pin for establishing a ground connection. For the device to perform at its best, it is essential to maintain a consistent input voltage within this range. It is recommended to place bypass capacitors near the VDD pin to ensure voltage level stability and to diminish any potential electrical noise.

2. Pin Layout and Functional Design: The REF3120AIDBZRG4 features a thoughtfully arranged pin structure for specific roles. It consists of a VOUT pin for outputting the reference voltage, an NC (No Connect) pin that is not used in standard operation, and a GND pin for grounding. This arrangement ensures a dependable and accurate voltage reference output, which is vital in applications that rely on high precision.

3. Integration in Advanced Voltage Systems: In typical use cases, the REF3120AIDBZRG4 acts as an essential element in advanced voltage reference systems. Its ability to deliver a consistent and accurate voltage reference is crucial for the functionality and reliability of these systems.

4. Operational Characteristics and Versatility: The REF3120AIDBZRG4 is lauded for its low dropout voltage and efficient power usage, making it an ideal choice for energy-sensitive applications like battery-powered devices. Its compatibility with diverse electronic configurations allows for its incorporation into custom designs and applications.

5. Circuit Design and Considerations for PCB Layout: Developing a PCB for the REF3120AIDBZRG4 necessitates a focus on mitigating noise interference, ensuring signal integrity, and managing heat efficiently. These considerations are vital for maintaining the accuracy and dependability of the voltage reference, especially in precision-critical environments.

6. Adherence to Electronic Standards: The REF3120AIDBZRG4 meets rigorous electronic standards, validating its reliability and appropriateness for a vast spectrum of precision voltage reference applications.

7. Installation and Handling Protocols: Due to its sensitivity to ESD and thermal conditions, handling the REF3120AIDBZRG4 requires caution. Following ESD-safe procedures and accurate soldering methods is crucial during the installation process to maintain the device's functionality and lifespan.

In summary, the REF3120AIDBZRG4 from the REF3120 series is a high-precision voltage reference component, ideal for a range of electronic applications. Effective use of this device involves proper connection methods, precise pin layout, integration into advanced voltage systems, leveraging its energy-efficient characteristics, strategic PCB design, compliance with electronic standards, and careful handling and installation. These steps ensure the REF3120AIDBZRG4 performs effectively in its intended roles.

REF3120AIDBZRG4 FAQ

1. How to order REF3120AIDBZRG4 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that REF3120AIDBZRG4 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the REF3120AIDBZRG4. All suppliers must pass our qualification reviews before they can publish their products including REF3120AIDBZRG4 on icwhale.com; we pay more attention to the channels and quality of REF3120AIDBZRG4 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the REF3120AIDBZRG4 price and inventory displayed accurate?

The price and inventory of REF3120AIDBZRG4 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of REF3120AIDBZRG4?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the REF3120AIDBZRG4 we delivered, we will accept the replacement or return of the REF3120AIDBZRG4 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of REF3120AIDBZRG4.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
