Texas Instruments REF3030AIDBZT

Part No.:: REF3030AIDBZT

Manufacturer:: Texas Instruments

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: REF3030AIDBZT.pdf

Description:: IC VREF SERIES 0.2% SOT23-3

In Stock:: 2125

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

REF3030AIDBZT Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
3V
Voltage-Output(Max):
-
Current-Output:
25 mA
Tolerance:
±0.2%
TemperatureCoefficient:
75ppm/°C
Noise-01Hzto10Hz:
33µVp-p
Noise-10Hzto10kHz:
94µVrms
Voltage-Input:
3.05V ~ 5.5V
Current-Supply:
50µA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

REF3030AIDBZT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including REF3030AIDBZT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for REF3030AIDBZT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

REF3030AIDBZT information

Views：

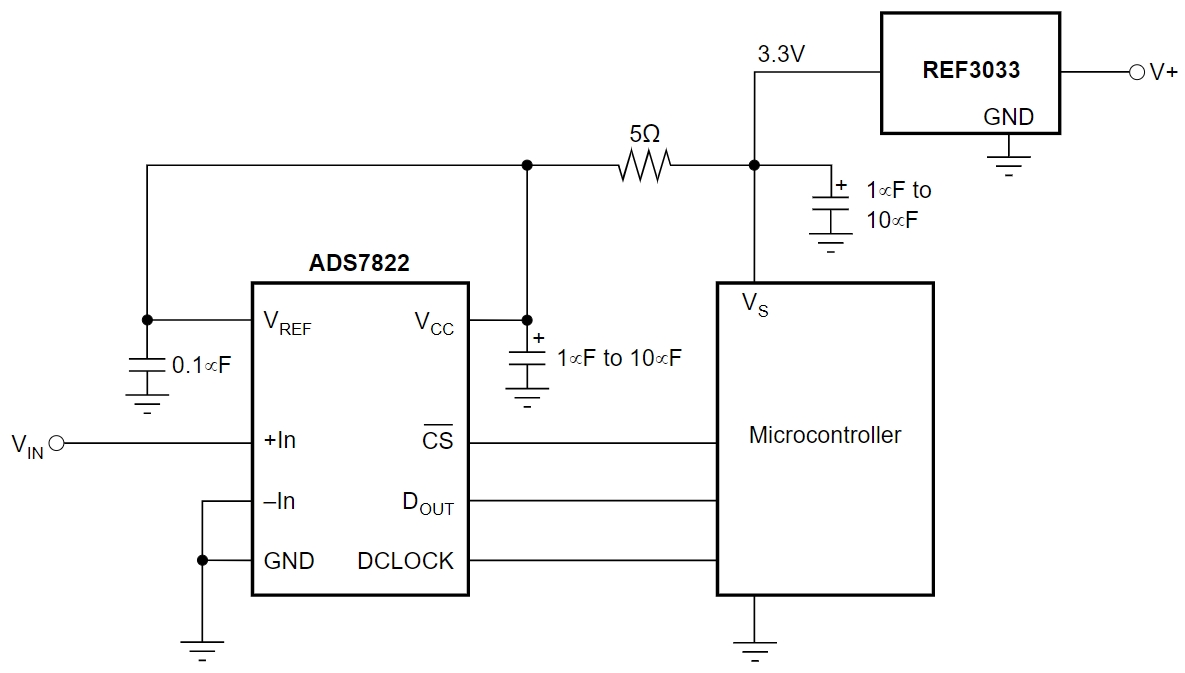

REF3030AIDBZT Typical application Circuitry

REF3030AIDBZT

The REF3030AIDBZT is a precision, low-dropout, fixed-voltage reference IC. It's highly regarded for its stability, low noise, and low power consumption, making it an excellent choice for applications that require a stable reference voltage, such as in analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and portable/battery-powered devices.

Applications:

A common application for the REF3030AIDBZT is in Portable Medical Devices, where precise and stable voltage references are crucial for accurate sensor readings and signal processing.

Circuit Connection for Portable Medical Devices:

1. Power Supply Connection: The V_IN pin of the REF3030AIDBZT (generally Pin 3) should be connected to a stable power source. This voltage source must be within the IC's specified input range.

2. Stable Voltage Output: Connect the V_OUT pin (usually Pin 2) to the reference voltage input of the medical device, such as an ADC. This pin provides a precise output voltage.

3. Grounding the Device: The GND pin (typically Pin 1) needs to be connected to the system's ground. Proper grounding is essential for the stability and accuracy of the voltage reference.

4. Decoupling Capacitors: Place a decoupling capacitor between the V_IN and GND pins, close to the IC. This capacitor will help stabilize the input voltage and filter out supply noise. Additionally, a capacitor between V_OUT and GND can enhance the output voltage's stability.

5. Minimizing Electromagnetic Interference (EMI): It's important to minimize EMI around the REF3030AIDBZT, especially in medical devices where precision is critical.

Design Considerations:

- Input Voltage Range: Ensure the supply voltage for the REF3030AIDBZT falls within its operational range.

- Load Regulation: The load on the output voltage should be managed to maintain the accuracy and stability of the reference voltage.

- Thermal Management: Keep the IC within its specified temperature range to prevent overheating and ensure reliable operation.

- Environmental Factors: In portable medical devices, the impact of environmental factors like temperature and humidity should be considered.

Conclusion:

The REF3030AIDBZT is highly suitable for portable medical devices, providing a stable and accurate voltage reference essential for the precision and reliability of these devices. Careful circuit design, focusing on factors like power stability, load management, and EMI minimization, is crucial for maximizing the performance of this voltage reference IC.
