lmages are for reference only See Product Specifications
Analog Devices Inc. REF195ESZ
- Part No.:
- REF195ESZ
- Manufacturer:
- Analog Devices Inc.
- Package:
- 8-SOIC (0.154, 3.90mm Width)
- Datasheet:
-
REF195ESZ.pdf
- Description:
- IC VREF SERIES 0.04% 8SOIC
- In Stock:
- 2389
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
REF195ESZ Specifications
- Packaging:Tube
- Series:REF19
- ProductStatus:Active
- ReferenceType:Series
- OutputType:Fixed
- Voltage-Output(Min/Fixed):5V
- Voltage-Output(Max):-
- Current-Output:30 mA
- Tolerance:±0.04%
- TemperatureCoefficient:5ppm/°C
- Noise-01Hzto10Hz:50µVp-p
- Noise-10Hzto10kHz:-
- Voltage-Input:5.1V ~ 15V
- Current-Supply:45µA
- Current-Cathode:-
- OperatingTemperature:-40°C ~ 85°C (TA)
- MountingType:Surface Mount
REF195ESZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including REF195ESZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for REF195ESZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
REF195ESZ information
Views：

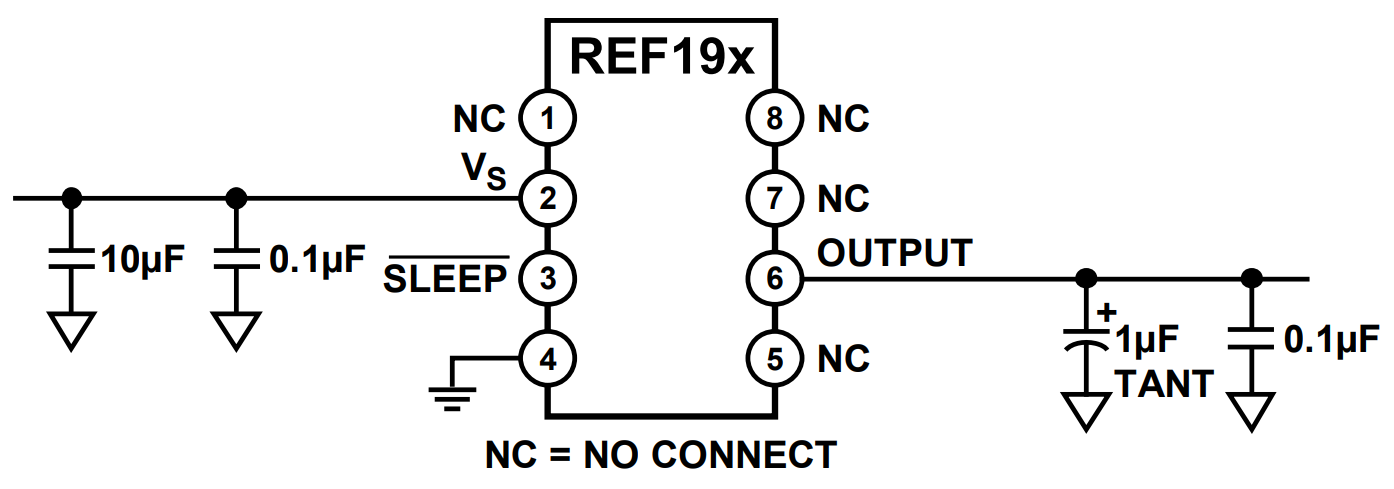

REF195ESZ Typical application Circuitry
The REF195ESZ is an Analog Devices chip, specifically, it's a series voltage reference chip. The functionality of the REF195ESZ is to provide a constant voltage output, despite changes in temperature, load conditions, and time. Voltage references like the REF195ESZ are essential in numerous electronic applications for ensuring precision and reliability.
Key features of the REF195ESZ include:
1. High Precision Output: The REF195ESZ offers a 5.0V output with an initial accuracy of 0.04% and low temperature drift.
2. Low Dropout: The REF195ESZ has a low dropout voltage of 600 mV, meaning it can operate effectively with a smaller voltage difference between its input and output.
3. Low Noise: The REF195ESZ features a low noise output, contributing to its high precision.
4. Supply Current Monitoring: The REF195ESZ has a feature that allows it to monitor supply current in a range of applications.
Typical application scenarios for the REF195ESZ include precision data systems, high-quality analog-to-digital converters (ADCs) and digital-to-analog converters (DACs), and industrial instrumentation.
In the case of using the REF195ESZ for a high-quality ADC, the connection might be as follows:
1. Supply Voltage (Pin 8, VCC): This pin is connected to the input supply voltage. The supply voltage should typically be slightly higher than the reference output voltage, i.e., more than 5.0V for reliable operation.
2. Reference Output (Pin 6, VOUT): This pin provides the 5.0V reference voltage, which can be directly connected to the reference voltage input of the ADC.
3. Ground Connection (Pin 4, GND): This pin should be connected to the system ground.
4. Sense Connection (Pin 7, SENSE): The SENSE pin is usually tied directly to the VOUT pin in most applications. It helps in maintaining the precision of the output voltage in the presence of voltage drop in the leads.
5. Trim Connection (Pin 5, TRIM): This pin allows users to adjust the output voltage if needed. However, for most applications, this pin can be left open.
Design considerations when using the REF195ESZ:
1. Input Voltage: Always ensure that the supply voltage is within the specified operating range to prevent damage to the chip.
2. Decoupling Capacitors: Place decoupling capacitors near the REF195ESZ pins to maintain stability.
3. Operating Temperature: The REF195ESZ performance varies slightly with temperature, so ensure the operating environment is within the specified range.
4. PCB Layout: For precision devices like the REF195ESZ, care should be taken with the printed circuit board (PCB) layout. Noise, temperature gradients, and long trace lengths can affect performance.
