Analog Devices Inc. REF192FSZ-REEL7

Part No.:: REF192FSZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: REF192FSZ-REEL7.pdf

Description:: IC VREF SERIES 0.2% 8SOIC

In Stock:: 3293

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

REF192FSZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
REF19
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
2.5V
Voltage-Output(Max):
-
Current-Output:
30 mA
Tolerance:
±0.2%
TemperatureCoefficient:
10ppm/°C
Noise-01Hzto10Hz:
25µVp-p
Noise-10Hzto10kHz:
-
Voltage-Input:
3V ~ 15V
Current-Supply:
45µA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

REF192FSZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including REF192FSZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for REF192FSZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

REF192FSZ-REEL7 information

Views：

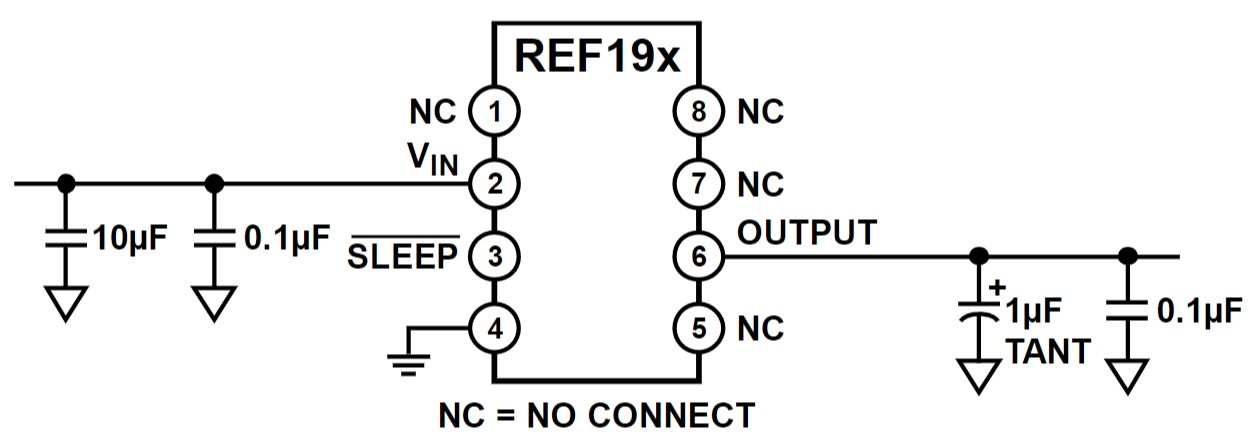

REF192FSZ-REEL7 Typical application Circuitry

REF192FSZ-REEL7

The REF192FSZ-REEL7 is a variant of the REF192 precision voltage reference chip, packaged in a reel format designed for use with automated assembly machines, specifically in a quantity that typically fits a 7-inch reel. This chip is known for its high accuracy, low dropout voltage, and low power consumption, making it an excellent choice for a wide range of applications, including portable devices, medical instrumentation, energy management systems, and precision data acquisition systems.

Key Features of REF192FSZ-REEL7:

- High Accuracy and Stability: The REF192FSZ-REEL7 provides a very stable and accurate output voltage, which is crucial for precision measurement applications.

- Low Power Consumption: Its low power consumption makes it ideal for battery-operated devices, helping to extend battery life without sacrificing performance.

- Low Dropout Voltage: The low dropout feature ensures the REF192FSZ-REEL7 can maintain output voltage accuracy even with minimal differences between the input and output voltages, enhancing its efficiency in low-voltage operations.

- Wide Operating Temperature Range: Suitable for applications that operate across a broad range of temperatures, maintaining its precision across its entire operating temperature range.

Application Scenario: Portable Medical Instrumentation

In portable medical instrumentation, such as patient monitoring systems, the REF192FSZ-REEL7 serves as a critical component for ensuring the accuracy and reliability of measurements.

Detailed Circuit Connection for REF192FSZ-REEL7:

- Power Supply to Input Pin: Connect the positive terminal of the power supply to the input pin of the REF192FSZ-REEL7. This pin powers the voltage reference. Ensuring that the power supply is stable and within the recommended range is crucial for the optimal operation of the REF192FSZ-REEL7.

- Ground Connection: Join the system ground to the ground pin of the REF192FSZ-REEL7. This common ground is vital for the stability of the voltage reference and the accuracy of the system.

- Output Voltage Utilization: The output pin provides the reference voltage. This pin should be connected to any part of the medical instrumentation that requires a precise voltage reference, such as the analog-to-digital converter (ADC) input.

- Input Bypass Capacitor: Near the REF192FSZ-REEL7, place a bypass capacitor (usually 1 µF) between the input pin and ground. This capacitor filters input noise and stabilizes the input voltage, ensuring the REF192FSZ-REEL7 operates correctly.

- Output Decoupling Capacitor: A decoupling capacitor, often 10 µF, between the output pin and ground can help stabilize the output voltage and reduce noise, which is especially important in sensitive medical applications where accuracy is paramount.

Design Considerations:

When designing circuits with the REF192FSZ-REEL7, several key factors must be considered:

- Power Supply Quality: The REF192FSZ-REEL7 requires a clean and stable power source to ensure the accuracy of its output voltage. Power supply fluctuations may have a negative impact on performance.

- Thermal Management: Although the REF192FSZ-REEL7 is designed to operate across a wide temperature range, it's essential to consider the thermal environment of the application. Excessive heat can impact long-term stability and accuracy.

- Load Regulation: It is best to reduce how much load variations affect the output voltage. The REF192FSZ-REEL7 is capable of driving capacitive loads, but sudden changes in load can affect output stability.

- Environmental Conditions: Consider the operating environment, including potential exposure to humidity, chemicals, or physical shock, which could affect the performance of the REF192FSZ-REEL7.

- Electromagnetic Interference (EMI): Shielding and proper layout techniques should be employed to protect the REF192FSZ-REEL7 from EMI, which can disrupt the precision of voltage reference output.

Incorporating the REF192FSZ-REEL7 into portable medical instrumentation or any other precision application not only requires attention to its electrical connections but also to the overall design considerations that impact its performance. The REF192FSZ-REEL7's features make it a versatile choice for ensuring accuracy and reliability in demanding applications.
