Name: REF192FSZ-REEL
Brand: Analog Devices Inc.
SKU: REF192FSZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. REF192FSZ-REEL

Part No.:: REF192FSZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: REF192FSZ-REEL.pdf

Description:: IC VREF SERIES 0.2% 8SOIC

In Stock:: 2293

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

REF192FSZ-REEL Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
REF19
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
2.5V
Voltage-Output(Max):
-
Current-Output:
30 mA
Tolerance:
±0.2%
TemperatureCoefficient:
10ppm/°C
Noise-01Hzto10Hz:
25µVp-p
Noise-10Hzto10kHz:
-
Voltage-Input:
3V ~ 15V
Current-Supply:
45µA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

REF192FSZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including REF192FSZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for REF192FSZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

REF192FSZ-REEL information

Views：

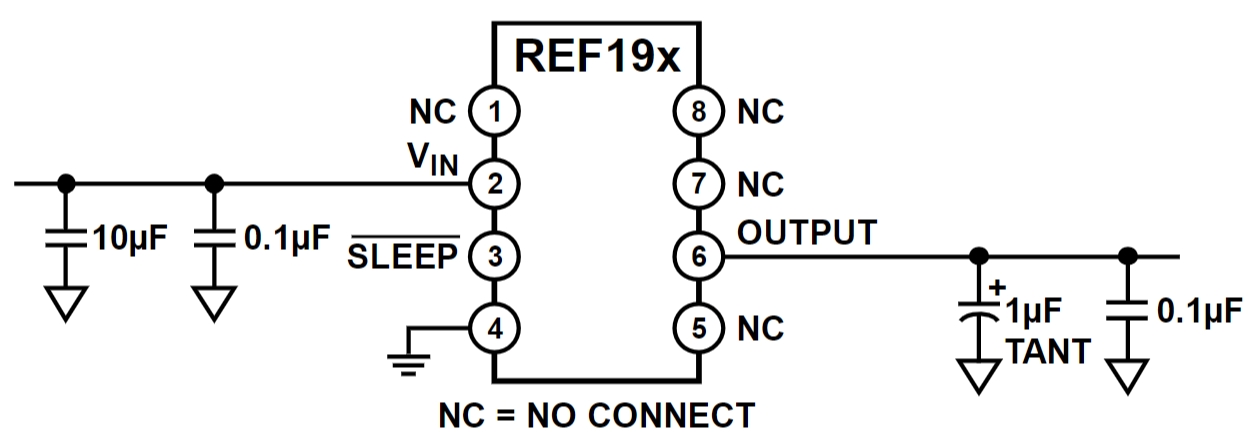

REF192FSZ-REEL Typical application Circuitry

REF192FSZ-REEL

The REF192FSZ-REEL chip functions as a precision voltage reference, instrumental in applications that demand high accuracy and stability in voltage supply. It's a critical component in the realm of electronic circuits where a stable reference voltage is pivotal, such as in analog-to-digital conversions, power supply regulation, and precision instrumentation.

Application Environments:

The REF192FSZ-REEL shines in environments like medical equipment, precision measurement tools, and any system requiring battery-powered operation. Its high accuracy and low power consumption are key for applications where power efficiency and precise voltage regulation are paramount.

Characteristic Parameters:

This component is notable for its high output voltage accuracy and stability, low temperature coefficient, and minimal output noise. Such features make the REF192FSZ-REEL highly reliable across different temperatures and operating conditions.

Detailed Circuit Design for a Medical Device Application:

- Establishing Power Requirements: First, determine the medical device's specific reference voltage needs. The REF192FSZ-REEL provides a stable output voltage of 2.5V, suitable for numerous medical applications requiring precision.

- Power Source Connection: Attach the REF192FSZ-REEL's V_IN pin to a stable, regulated power source. The source must slightly exceed the chip's minimum operating voltage to account for the dropout voltage, without surpassing the maximum input voltage threshold to prevent chip damage.

- Stabilization with a Decoupling Capacitor: Implement a decoupling capacitor (suggested value: 0.1µF) adjacent to the REF192FSZ-REEL's V_IN pin. This capacitor acts to suppress noise, ensuring the REF192FSZ-REEL operates with maximum stability, which is crucial in sensitive medical applications.

- Output Voltage Application: Direct the REF192FSZ-REEL's V_OUT pin to the reference voltage input of the medical device. This configuration supplies a precise voltage reference, essential for the accurate performance of medical instrumentation.

- Effective Grounding Techniques: Secure a connection from the REF192FSZ-REEL's GND pin to the system's ground. Adequate grounding is vital to mitigate noise and enhance the reference voltage's stability.

- Considering Load Dynamics: In circuit design, it's critical to evaluate the REF192FSZ-REEL's load-driving capability. Ensure the connected load does not exceed the chip's maximum output current specification to maintain accurate voltage output.

Circuit Design Considerations:

Incorporating the REF192FSZ-REEL into a circuit necessitates attention to the quality of the power supply, environmental variables, and the impact of load on the output voltage. Optimal performance hinges on maintaining the input voltage within specified ranges and deploying effective decoupling to minimize supply line disturbances. Moreover, thermal factors must be considered, as temperature variations can affect voltage reference stability.

In essence, the REF192FSZ-REEL emerges as a pivotal component for achieving precision in voltage reference across diverse applications. By carefully planning the circuit design with a focus on power stability, decoupling techniques, and proper load management, the REF192FSZ-REEL can be leveraged to enhance accuracy and stability in electronic designs, especially in critical applications such as those found in the medical field.
