Texas Instruments REF102CPG4
- Part No.:
- REF102CPG4
- Manufacturer:
- Texas Instruments
- Package:
- 8-DIP (0.300, 7.62mm)
- Datasheet:
-
REF102CPG4.pdf
- Description:
- IC VREF SERIES 0.025% 8DIP
- In Stock:
- 3729
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
REF102CPG4 Specifications
- Packaging:Tube
- Series:-
- ProductStatus:Last Time Buy
- ReferenceType:Series
- OutputType:Fixed
- Voltage-Output(Min/Fixed):10V
- Voltage-Output(Max):-
- Current-Output:10 mA
- Tolerance:±0.025%
- TemperatureCoefficient:2.5ppm/°C
- Noise-01Hzto10Hz:5µVp-p
- Noise-10Hzto10kHz:-
- Voltage-Input:11.4V ~ 36V
- Current-Supply:1.4mA
- Current-Cathode:-
- OperatingTemperature:-25°C ~ 85°C (TA)
- MountingType:Through Hole
REF102CPG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including REF102CPG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for REF102CPG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
REF102CPG4 information
Views：

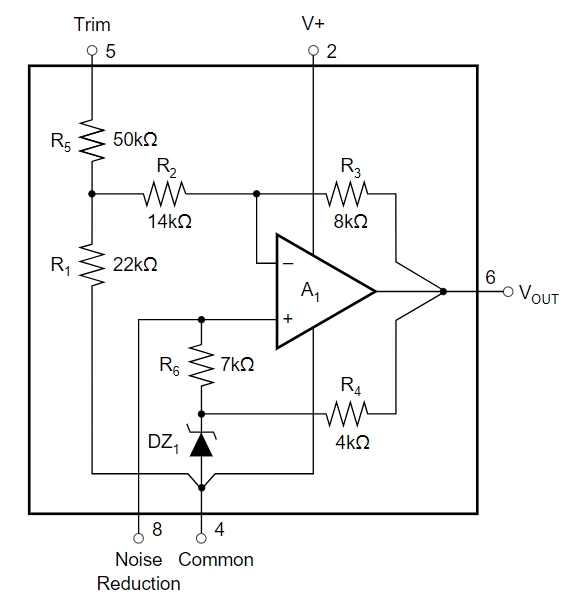

REF102CPG4 Typical application Circuitry
The REF102CPG4 is an enhanced version of the REF102CP precision voltage reference chip, sharing many of the same core features and applications but with specific improvements or variations in packaging or performance specifications tailored for more demanding environments or specific requirements.
Key Features of REF102CPG4:
- Enhanced Stability: Offers high precision and stability, with a typical output voltage of 10V, tailored for applications requiring reliable reference voltages over time and across temperature variations.
- Improved Temperature Coefficient: The REF102CPG4 may feature an improved temperature coefficient, enhancing its performance in environments with significant temperature fluctuations.
- Low Noise: It maintains a low noise output, crucial for applications where electronic noise can significantly impact performance, such as in precision measurement equipment.
- Robust Package Options: The "G4" designation might indicate a specific type of packaging or compliance with global standards, making it suitable for a wide range of industrial and commercial applications.
Application Scenario: Calibration System for Precision Sensors
In this application, the REF102CPG4 is utilized to calibrate precision sensors in a laboratory environment, requiring utmost accuracy and stability in the reference voltage to ensure the sensors' output is meticulously accurate.
Circuit Connection Overview:
- Power Connections: Connect the V+ pin (pin 7) of the REF102CPG4 to a +15V power source, and the GND pin (pin 4) to the system ground, providing the necessary operating power.
- Output Voltage Setup: The output pin (pin 6) delivers the 10V reference. A decoupling capacitor, ideally around 10µF, should be placed between this output and ground close to the REF102CPG4. This capacitor stabilizes the output voltage and helps filter out noise.
- Sensor Calibration Interface: The 10V reference from the REF102CPG4 is used as the benchmark in calibrating precision sensors. This setup ensures that the sensors are calibrated against a stable and accurate reference, enhancing the reliability of sensor readings.
Key Design Considerations:
- Stable Power Supply: Ensure the power supply to the REF102CPG4 is stable. Fluctuations in the power source can directly affect the accuracy of the reference voltage.
- Thermal Management: Implement measures to minimize thermal gradients on the REF102CPG4, such as strategic placement away from heat sources and considering thermal paths on the PCB.
- Noise Mitigation: Incorporate strategies to minimize noise affecting the REF102CPG4's output, such as using low-pass filters or shielding techniques, to preserve signal integrity.
- Load Impact: Carefully consider the load connected to the REF102CPG4's output. Excessive loading can lead to voltage drop and impact performance.
In deploying the REF102CPG4 in a calibration system for precision sensors, it's crucial to maintain a stable and noise-free environment for the reference voltage. This ensures that the calibration process is both accurate and reliable, underpinning the precision of the entire measurement system. Attention to power stability, thermal management, and noise reduction are paramount in leveraging the REF102CPG4's capabilities to enhance system accuracy and reliability.
