ON Semiconductor QRE1113GR

Part No.:: QRE1113GR

Manufacturer:: ON Semiconductor

Package:

Datasheet:: QRE1113GR.pdf

Description:: SENSOR OPTO TRANS REFL SMD PHOTO

In Stock:: 3874

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

QRE1113GR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including QRE1113GR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for QRE1113GR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

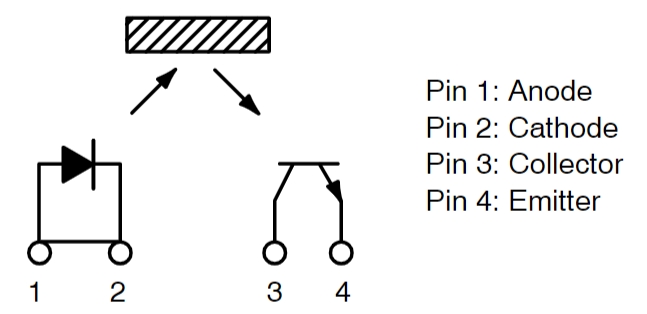

QRE1113GR Typical application Circuitry

QRE1113GR

The QRE1113GR is an infrared reflective sensor primarily used for object detection and distance sensing. It combines an infrared emitter and a phototransistor receiver within a compact surface-mount package. Its applications include line-following robots, detection of the presence of paper or other objects, and item counting in automation systems.

Example Application Scenario: In a line-following robot, the QRE1113GR can be used to sense the path beneath the robot. Multiple such sensors installed at the bottom of the robot help it navigate by detecting different colored surfaces, such as a black line on a white background.

Parameter Features: The QRE1113GR is characterized by its small package size, low power consumption, the ability to emit and receive infrared wavelengths, and high sensitivity to surface-reflected light. It typically operates at a 5V power supply and has good resistance to ambient light interference.

Detailed Circuit Connection:

1. Power Supply Connection: Attach the QRE1113GR's Vcc pin, which is often pin 3, to a 5V power supply.

2. Ground Connection: Attach the QRE1113GR's GND pin, which is often pin 2, to the ground of the circuit.

3. Output Signal: Connect the output pin of the QRE1113GR (usually pin 1) to an analog input of a microcontroller. This allows the reflected light intensity detected by the sensor to be converted into an electrical signal for processing by the microcontroller.

4. Current Limiting Resistor: Place an appropriate current-limiting resistor (e.g., 220Ω) between Vcc and GND of the QRE1113GR to protect the infrared LED.

5. Filter Capacitor: Add a small capacitor (e.g., 0.1μF) between Vcc and GND to filter out noise on the power line.

Considerations When Designing the Circuit:

- Power Supply Stability: Ensure a stable 5V power supply, as instability can affect the performance of the QRE1113GR.

- Ambient Light Interference: Consider the potential impact of ambient light on the sensor and take measures, such as adding a light shield.

- Signal Processing: Consider how to process the analog signal output from the sensor and convert it into a digital signal for effective data processing by the microcontroller.

- Physical Layout: In the robot design, consider the placement and angle of the sensors to maximize the accuracy of path detection.

QRE1113GR information

QRE1113GR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SensingDistance:
0.039 (1mm)
SensingMethod:
Reflective
Voltage-CollectorEmitterBreakdown(Max):
30 V
Current-Collector(Ic)(Max):
20 mA
Current-DCForward(If)(Max):
50 mA
OutputType:
Phototransistor
ResponseTime:
20µs, 20µs
MountingType:
Surface Mount
