Texas Instruments PTH08T230WAD

Part No.:: PTH08T230WAD

Manufacturer:: Texas Instruments

Package:: 10-DIP Module

Datasheet:: PTH08T230WAD.pdf

Description:: DC DC CONVERTER 0.69-5.5V

In Stock:: 3958

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PTH08T230WAD Specifications

Package/Case:
10-DIP Module
Packaging:
Bulk,Tray
Series:
PTH08T230W
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
14V
Voltage-Output1:
0.69 ~ 5.5V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
6A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
-
OperatingTemperature:
-40°C ~ 85°C
Efficiency:
95%
MountingType:
Through Hole
Size/Dimension:
0.75 L x 0.62 W x 0.34 H (19.1mm x 15.7mm x 8.6mm)
ControlFeatures:
ApprovalAgency:

PTH08T230WAD this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PTH08T230WAD price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PTH08T230WAD to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PTH08T230WAD information

Views：

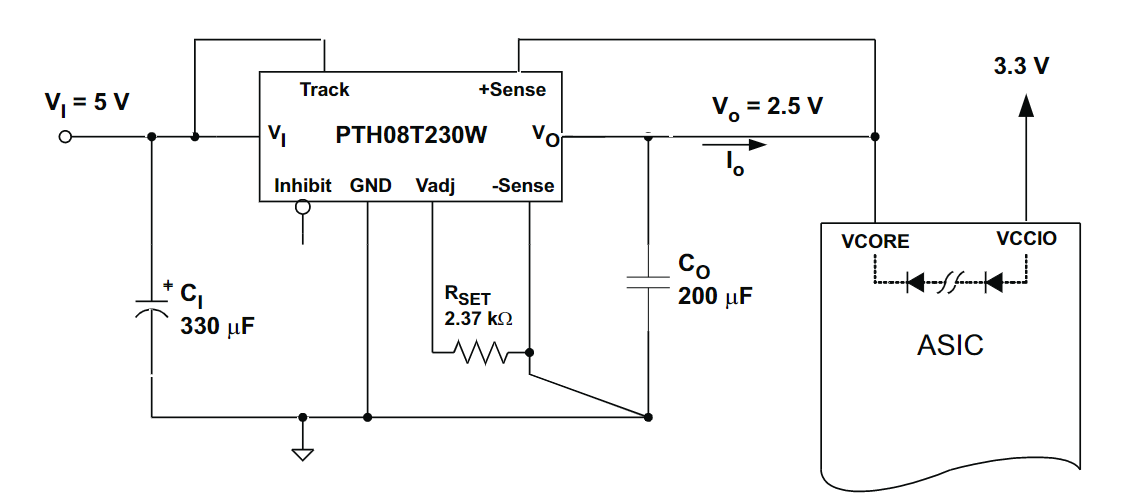

PTH08T230WAD Typical application Circuitry

PTH08T230WAD

Texas Instruments offers a high-performance, non-isolated power module with a 16-A rating. It's part of the PTH series and is widely used in distributed power architectures. This module operates with an input voltage range from 4.5V to 14V and delivers an adjustable output voltage from 0.7V to 5.5V.

1. Input Voltage: Connect the input voltage to the VIN pin (pin 2). The voltage should be between 4.5V and 14V. The negative or return of your input voltage supply should be connected to GND (pin 10).

2. Output Voltage: The output voltage is taken from the VO pin (pin 4). The return or negative side of the load should be connected to GND (pin 5).

3. Output Voltage Adjustment: The output voltage is set by connecting a resistor (Set) between the ADJ pin (pin 3) and GND (pin 5). The value of this resistor can be calculated based on the desired output voltage, as described in the PTH08T230WAD data sheet.

4. Enable Control: The PTH08T230WAD can be turned on or off using the EN pin (pin 1). Applying a logic high signal (2.0V to VIN) turns on the module, and a low signal (0V to 0.8V) turns it off. The EN pin can be connected to VIN if it is not in use to guarantee that the module is always activated.

5. It is advisable to place an excellent ceramic input capacitor as near to VIN and GND as feasible. This reduces noise and stabilizes the input voltage.

6. Similarly, it is advised to position a premium ceramic output capacitor as closely as feasible between VO and GND.

The output voltage is stabilized as a result, and transient responsiveness is enhanced.The PTH08T230WAD is an efficient power module that simplifies the design and implementation of a distributed power architecture. Always remember to follow good PCB layout practices and consider thermal management during design, as detailed in the PTH08T230WAD data sheet.
