Texas Instruments PTH08080WAD

Part No.:: PTH08080WAD

Manufacturer:: Texas Instruments

Package:: 5-DIP Module

Datasheet:: PTH08080WAD.pdf

Description:: DC DC CONVERTER 0.9-5.5V

In Stock:: 3260

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PTH08080WAD Specifications

Package/Case:
5-DIP Module
Packaging:
Tray
Series:
PTH08080W
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
18V
Voltage-Output1:
0.9 ~ 5.5V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
2.25A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
-
OperatingTemperature:
-40°C ~ 85°C
Efficiency:
93.5%
MountingType:
Through Hole
Size/Dimension:
0.60 L x 0.50 W x 0.32 H (15.2mm x 12.7mm x 8.1mm)
ControlFeatures:
ApprovalAgency:

PTH08080WAD this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PTH08080WAD price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PTH08080WAD to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PTH08080WAD information

Views：

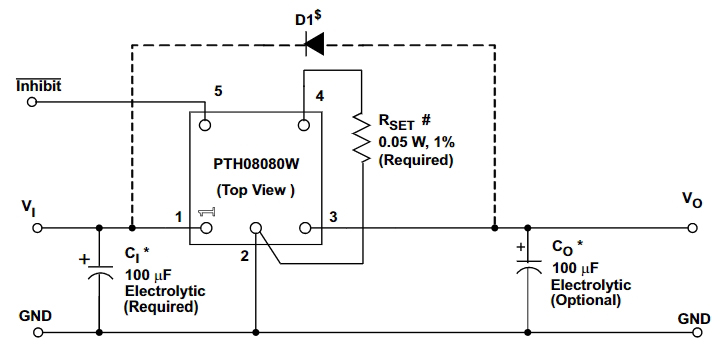

PTH08080WAD Typical application Circuitry

PTH08080WAD

The PTH08080WAD is a versatile, high-efficiency, non-isolated power module that offers adjustable output voltage, accommodating a wide input voltage range. It is engineered for applications requiring a compact, flexible power supply solution that can provide a stable and adjustable voltage to a variety of loads.

Application Scenario: Power Supply for FPGA on a Development Board

Introduction: In this application, the PTH08080WAD is utilized to supply power to an FPGA on a development board, where precise and stable voltage is crucial for the FPGA's performance during prototyping and testing phases.

Key Parameters and Features:

- Wide Input Voltage Range: Ensures compatibility with various power sources, enabling flexible usage across different development settings.

- Adjustable Output Voltage: Allows for fine-tuning of the power supplied to the FPGA, ensuring it operates within its optimal voltage range for maximum efficiency and reliability.

- High Efficiency: Minimizes energy loss and reduces heat generation, critical in maintaining the performance of the FPGA and the overall stability of the development board.

- Compact Design: The module's small footprint enables integration into space-constrained development boards without compromising layout flexibility.

- Integrated Protection Features: Provides under-voltage lockout, over-current, and over-temperature protection to protect the FPGA from power-related abnormalities.

In-depth Circuit Diagram:

- Input Power Connection: Attach the PTH08080WAD's "VIN" pin to the main power supply of the development board, making sure the voltage supplied is within the input range specified for the module.

- To change the output voltage, attach a resistor divider by connecting the "VOUT" pin to the "ADJ" pin and the second resistor to "GND."Select resistor values based on the required output voltage for the FPGA, as detailed in the module's datasheet.

- FPGA Power Supply: Directly connect the "VOUT" pin to the FPGA's power input. It's essential to ensure that the module's output current capacity meets or exceeds the power requirements of the FPGA.

- Grounding Strategy: Ensure that the "GND" pin is properly connected to the development board's ground plane. Effective grounding is vital for minimizing noise and ensuring stable operation of both the power module and the FPGA.

Design Considerations:

- Thermal Management: Implement appropriate cooling solutions for the PTH08080WAD, especially if the FPGA or other components on the board generate significant heat.

- Input Voltage Stability: Stability in the input voltage is crucial for consistent output voltage. Use filtering or regulation techniques on the input if necessary to mitigate fluctuations.

- Load Dynamics: Consider the dynamic power demands of the FPGA, particularly during different stages of operation. Ensure the power module can adequately respond to changes in load without voltage dips or spikes.

By meticulously planning the integration of the PTH08080WAD into a development board for FPGA power supply, designers can achieve a reliable, efficient, and adjustable power solution that supports the critical development and testing of FPGA-based projects.
