Name: PTH04000WAH
Brand: Texas Instruments
SKU: PTH04000WAH
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments PTH04000WAH

Part No.:: PTH04000WAH

Manufacturer:: Texas Instruments

Package:: 6-DIP Module

Datasheet:: PTH04000WAH.pdf

Description:: DC DC CONVERTER 0.9-3.6V

In Stock:: 2542

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PTH04000WAH Specifications

Package/Case:
6-DIP Module
Packaging:
Bulk,Tray
Series:
PTH04000W
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
3V
Voltage-Input(Max):
5.5V
Voltage-Output1:
0.9 ~ 3.6V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
3A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
-
OperatingTemperature:
-40°C ~ 85°C
Efficiency:
92%
MountingType:
Through Hole
Size/Dimension:
0.75 L x 0.50 W x 0.34 H (19.1mm x 12.7mm x 8.6mm)
ControlFeatures:
ApprovalAgency:

PTH04000WAH this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PTH04000WAH price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PTH04000WAH to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PTH04000WAH information

Views：

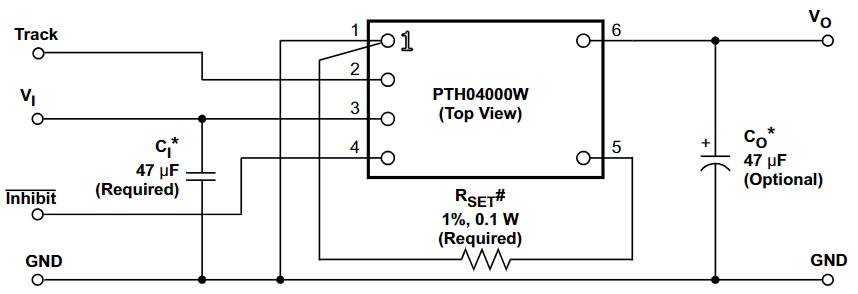

PTH04000WAH Typical application Circuitry

PTH04000WAH

The PTH04000WAH is a high-performance, non-isolated power module designed to provide adjustable output voltage and high efficiency in power conversion applications. This module is particularly suited for telecommunications, computing, and industrial systems where space is limited and efficiency is critical.

Application Scenario: Powering a Microprocessor in a Computing System

Introduction: In this application, the PTH04000WAH is utilized to supply power to a microprocessor within a computing system, requiring a precise and stable voltage supply for optimal operation.

Key Parameters and Features:

- Wide Input Voltage Range: This feature allows the module to accept various input voltages, making it adaptable to different power supply standards.

- Adjustable Output Voltage: Provides the flexibility to fine-tune the voltage supplied to the microprocessor, ensuring compatibility with its operational voltage range.

- High Efficiency: Ensures that the power conversion process minimizes energy loss, which is crucial for reducing heat generation in the computing system.

- Compact Design: The small footprint of the module is ideal for use in systems where space is at a premium, such as compact computing devices.

- Protection Mechanisms: Offers features such as over-temperature protection, under-voltage lockout, and over-current protection, enhancing the reliability of the power supply and the safety of the system.

Detailed Circuit Connection:

- Connecting the Power Source: The "VIN" pin of the PTH04000WAH should be connected to the computing system's power supply, ensuring that the voltage level falls within the module's input voltage range.

- Adjusting the Output Voltage: To set the desired output voltage, a resistor divider is connected from the "VOUT" pin to the "ADJ" pin, and the other end of the divider is tied to "GND." The resistance values are chosen based on the required output voltage as per the calculation formula provided in the datasheet.

- Supplying Power to the Microprocessor: The "VOUT" pin is connected to the power input of the microprocessor. It is vital to ensure that the output current capability of the PTH04000WAH matches or exceeds the microprocessor's current demand.

- Ensuring Proper Grounding: The "GND" pin must be connected to the computing system's ground plane to provide a stable and noise-free ground reference for both the power module and the microprocessor.

Design considerations:

- Thermal management: The heat produced by the PTH04000WAH should be well managed, especially when there is a high load. Using thermal pads or heat sinks may be part of this.

- Input Voltage Stability: Variations in the input voltage have the potential to affect the output voltage's stability. Making sure the input voltage is steady and within the module's designated range is crucial.

- Load Variations: The power demands of the microprocessor can vary depending on its operational state. The design should account for these variations to ensure that the power module can provide a stable output under different load conditions.

By carefully following these guidelines and considering the operational requirements of the microprocessor, the PTH04000WAH can be effectively integrated into computing systems, providing a reliable and efficient power solution that meets the needs of high-performance microprocessors.
