What is the Additional Feature ?

Name: PTH03050WAH
Brand: Texas Instruments
SKU: PTH03050WAH
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments PTH03050WAH

Part No.:: PTH03050WAH

Manufacturer:: Texas Instruments

Package:: 6-DIP Module

Datasheet:: PTH03050WAH.pdf

Description:: DC DC CONVERTER 0.8-2.5V 6A

In Stock:: 319

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PTH03050WAH Specifications

Package/Case:
6-DIP Module
Packaging:
Tray
Series:
PTH03050W
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
2.95V
Voltage-Input(Max):
3.65V
Voltage-Output1:
0.8 ~ 2.5V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
6A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
-
OperatingTemperature:
-40°C ~ 85°C
Efficiency:
94%
MountingType:
Through Hole
Size/Dimension:
0.87 L x 0.50 W x 0.34 H (22.1mm x 12.7mm x 8.6mm)
ControlFeatures:
ApprovalAgency:

PTH03050WAH this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PTH03050WAH price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PTH03050WAH to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PTH03050WAH information

Views：

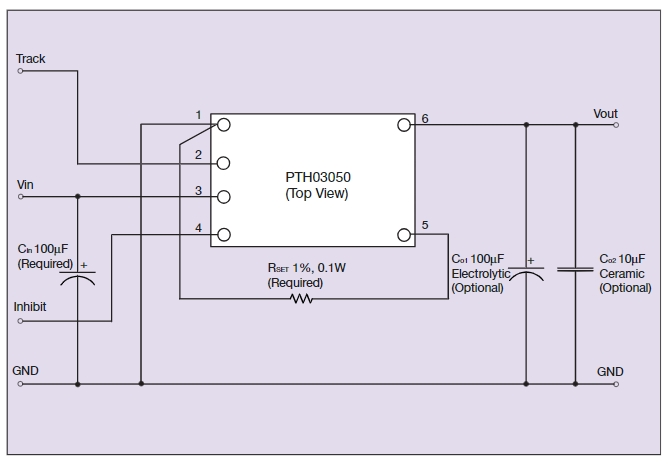

PTH03050WAH Typical application Circuitry

PTH03050WAH

The PTH03050WAH power module has an adjustable output voltage and a wide input voltage range, making it an effective power conversion device in a small package. This type of module is especially suited for applications requiring high efficiency, reliability, and flexibility, such as telecommunications equipment, industrial controls, and computing systems.

Application Scenario: Powering a Field Programmable Gate Array (FPGA) in Industrial Applications

Overview: In this scenario, the PTH03050WAH is used to power an FPGA on an industrial control board, providing it with a stable and adjustable voltage supply critical for its operation.

Key Parameters and Features:

- Wide Input Voltage Range: This allows the module to accommodate fluctuations in the power supply while still providing a stable output.

- Adjustable Output Voltage: Gives the flexibility to match the specific voltage requirements of the FPGA, enhancing performance and reliability.

- High Efficiency: Minimizes power loss and heat generation, critical in densely packed industrial control systems.

- Compact Size: Perfect for integration on industrial control boards or other systems with limited space.

- Integrated Protection Features: These guard against power-related problems for the FPGA by including over-current, under-voltage lockout, and over-temperature protection.

In-depth Circuit Diagram:

- Input Power Supply Connection: Connect the "VIN" pin of the PTH03050WAH to the industrial board's power supply, ensuring the voltage is within the specified range for the module.

- Output Voltage Adjustment: A resistor divider network should be connected from the "VOUT" pin to the "ADJ" pin, with the other end tied to "GND." The values of these resistors are selected based on the desired output voltage for the FPGA, as determined from the datasheet's formula.

- Powering the FPGA: The "VOUT" pin is directly connected to the power input of the FPGA, supplying the adjusted voltage. Ensure the current draw does not exceed the module's maximum output capacity.

- Grounding: The "GND" pin must be connected to the industrial control board's ground plane. A proper grounding strategy is essential for minimizing noise and ensuring stable operation.

Design Considerations:

- Thermal Management: Considering the PTH03050WAH can generate heat, especially under heavy load, plan for adequate heat dissipation. This might involve using heat sinks or ensuring sufficient airflow around the module.

- Input Voltage Stability: Maintain stability in the input voltage to prevent fluctuations from affecting the output voltage and, consequently, the FPGA's performance.

- Dynamic Load Response: FPGAs can have varying power demands based on their operational state. It's important to account for these variations to ensure the power module can maintain a stable output under all conditions.

Incorporating the PTH03050WAH into industrial applications to power an FPGA requires attention to the power module's specifications, the FPGA's power needs, and the operational environment. Adhering to best practices in circuit design and layout, as well as considering thermal management and power stability, will ensure reliable and efficient operation of both the power module and the FPGA.
