NXP USA Inc. PN7150B0HN/C11006Y

Part No.:: PN7150B0HN/C11006Y

Manufacturer:: NXP USA Inc.

Package:: 40-VFQFN Exposed Pad

Datasheet:

Description:: PN7150 HVQFN REEL

In Stock:: 2963

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PN7150B0HN/C11006Y this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PN7150B0HN/C11006Y price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PN7150B0HN/C11006Y to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

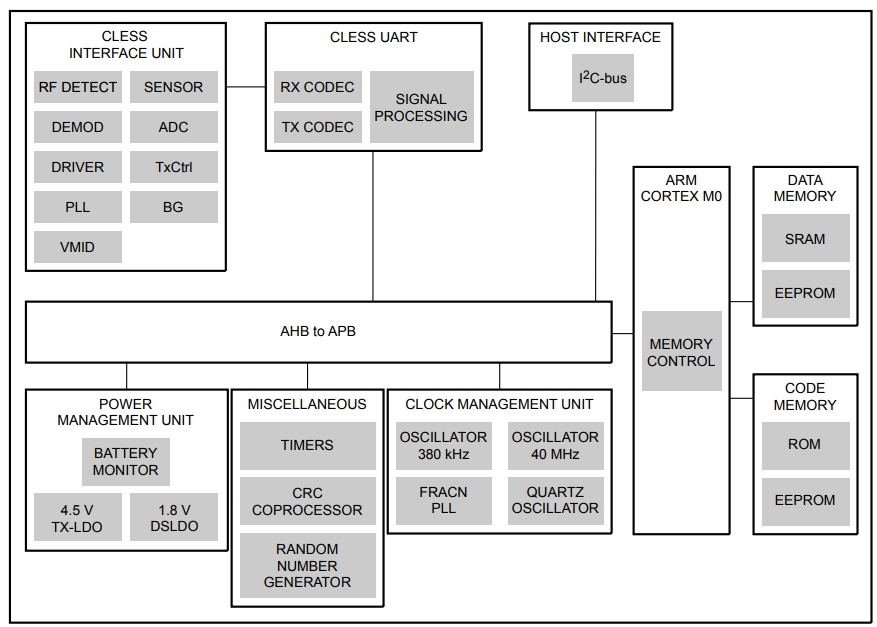

PN7150B0HN/C11006Y Typical application Circuitry

PN7150B0HN C11006Y

The PN7150B0HN/C11006Y is an advanced NFC (Near Field Communication) controller chip designed for facilitating seamless NFC integration into a myriad of consumer electronics, including but not limited to smartphones, tablets, wearables, and devices tailored for smart home applications.

Applications Across Various Sectors

The versatility of the PN7150B0HN/C11006Y is evident through its application in numerous sectors such as mobile payments, smart home control, access management, and data sharing. A particularly compelling application to explore is its use within mobile payment terminals.

Key Features and Specifications

- Embedded NFC Capability: Significantly eases the NFC application development process.

- Extensive Protocol Support: Offers compatibility with a wide range of NFC standards, including ISO/IEC 14443 A/B, FeliCa, and NFC Forum tags.

- High-Speed Data Transfer: Enables data exchange rates of up to 424 kbit/s, promoting efficient communication.

- Power Efficiency: The chip's design emphasizes low power consumption, an essential trait for portable and battery-dependent devices.

- Compact Design: Its small size facilitates easy incorporation into devices with limited space.

Implementing in Mobile Payment Terminals

Deploying the PN7150B0HN/C11006Y in a mobile payment terminal allows for the facilitation of contactless payments. Here is a detailed breakdown of how to integrate the chip with a microcontroller (MCU) in such a scenario:

1.Power Configuration:

- VDD Supply Connection: Link the VDD pin of the PN7150B0HN/C11006Y to the 3.3V power output from the MCU, providing the necessary power for the chip.

- Grounding: Connect the GND pin to the MCU's ground to establish a common ground.

2.Communication Interface:

- I2C Communication: Attach the SDA (Serial Data) and SCL (Serial Clock) pins to their respective I2C counterparts on the MCU to enable bidirectional communication between the NFC controller and the MCU.

3.Interrupt Handling:

- IRQ Connectivity: Wire the IRQ (Interrupt Request) pin to an available digital input on the MCU to allow the PN7150B0HN/C11006Y to signal the MCU upon detecting NFC tags.

4.Antenna Integration:

- Antenna Linkage: Connect the antenna pins of the PN7150B0HN/C11006Y to a suitably designed NFC antenna, critical for establishing communication with NFC-enabled devices.

Circuitry Design Considerations

Designing a circuit with the PN7150B0HN/C11006Y necessitates careful consideration of several critical factors:

- Antenna Specifications: Proper antenna configuration is paramount for achieving optimal NFC communication range and performance. Following recommended guidelines for antenna design is advised.

- Stable Power Source: Ensuring a stable and clean power supply is crucial to prevent operational issues.

- Firmware Maintenance: Regularly updating the chip's firmware is vital for leveraging the latest functionalities and maintaining compatibility.

- I2C Line Integrity: Implementing suitable pull-up resistors on the I2C lines is essential for reliable data communication.

- Interference Minimization: Taking steps to minimize interference from electromagnetic and radio frequency sources is key to ensuring uninterrupted NFC communications.

Integrating the PN7150B0HN/C11006Y into mobile payment terminals showcases the chip's capability to revolutionize contactless payment solutions. By meticulously addressing the detailed pin connections and overarching design principles highlighted above, developers can harness the full potential of the PN7150B0HN/C11006Y, leading to the development of innovative, NFC-enabled applications across various industries.

PN7150B0HN/C11006Y information

PN7150B0HN/C11006Y Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
RFID Reader
Frequency:
13.56MHz
Standards:
FeliCa, ISO 14443, ISO 15693, Mifare, NFC
Interface:
I²C, UART
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-30°C ~ 85°C (TA)
MountingType:
Surface Mount

PN7150B0HN/C11006Y FAQ

1. How to order PN7150B0HN/C11006Y on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that PN7150B0HN/C11006Y is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the PN7150B0HN/C11006Y. All suppliers must pass our qualification reviews before they can publish their products including PN7150B0HN/C11006Y on icwhale.com; we pay more attention to the channels and quality of PN7150B0HN/C11006Y products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the PN7150B0HN/C11006Y price and inventory displayed accurate?

The price and inventory of PN7150B0HN/C11006Y fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of PN7150B0HN/C11006Y?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the PN7150B0HN/C11006Y we delivered, we will accept the replacement or return of the PN7150B0HN/C11006Y only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of PN7150B0HN/C11006Y.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
