NXP USA Inc. PN7150B0HN/C11004Y

Part No.:: PN7150B0HN/C11004Y

Manufacturer:: NXP USA Inc.

Package:: 40-VFQFN Exposed Pad

Datasheet:

Description:: IC NFC CONTROLLER 40HVQFN

In Stock:: 3656

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PN7150B0HN/C11004Y Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
Type:
RFID Reader
Frequency:
13.56MHz
Standards:
ISO 14443, ISO 15693, FeliCa, Mifare, NFC
Interface:
I²C
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-30°C ~ 85°C (TA)
MountingType:
Surface Mount

PN7150B0HN/C11004Y this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PN7150B0HN/C11004Y price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PN7150B0HN/C11004Y to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PN7150B0HN/C11004Y information

Views：

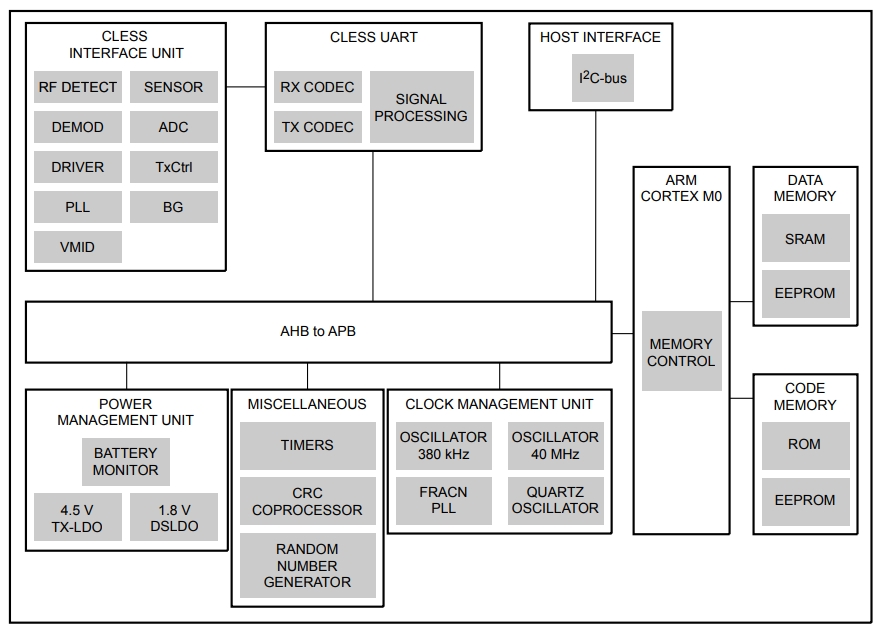

PN7150B0HN/C11004Y Typical application Circuitry

PN7150B0HN C11004Y

The PN7150B0HN/C11004Y is a high-performance, full NFC (Near Field Communication) controller chip, designed to enable various NFC applications in consumer electronics, such as smartphones, tablets, wearables, and home automation systems.

Applications

The PN7150B0HN/C11004Y finds its utility in numerous applications, notably in contactless payment systems, access control, peer-to-peer communication, and NFC tagging. One specific application scenario we can delve into is its use in a smart door lock system.

Parameters and Features

- Integrated Firmware: It simplifies NFC application development.

- Supported Protocols: ISO/IEC 14443 A/B, FeliCa, NFC Forum tags.

- High Data Rate: Offers up to 424 kbit/s, enabling quick data exchange.

- Low Power Consumption: Crucial for battery-powered devices.

- Small Form Factor: Facilitates integration into compact devices.

Application Scenario: Smart Door Lock System

In a smart door lock system, the PN7150B0HN/C11004Y can be utilized to enable access control via NFC-enabled smartphones or NFC tags. Here's how you can connect it to a microcontroller (e.g., an Arduino) to create such a system:

1.Power Connection:

- VDD: Connect the VDD pin of the PN7150B0HN/C11004Y to a 3.3V source from the microcontroller. This powers up the chip.

- GND: The ground pin should be connected to the microcontroller's ground.

2.Data communication:

- SDA/SCL (I2C communication): Attach the microcontroller's SDA and SCL pins to their respective I2C pins. This facilitates communication between the NFC chip and the microcontroller.

3.IRQ (Interrupt Request):

- IRQ Pin: The microcontroller's digital pin needs to be linked to it. This is used by the PN7150B0HN/C11004Y to notify the microcontroller of NFC events such as tag detection.

4.Antenna Connection:

- ANT: The antenna pins on the PN7150B0HN/C11004Y should be connected to an NFC antenna. This is crucial for communicating with NFC tags or devices.

Design Considerations

When designing a circuit with the PN7150B0HN/C11004Y, several factors need to be considered:

- Antenna Design: Proper antenna design is critical for optimal NFC performance and range. Follow the guidelines provided by NXP for the antenna dimensions and layout.

- Power Supply Stability: Make sure the power supply is clean and steady, as variations may have an impact on the chip's functionality.

- Firmware Integration: Integrating and updating the firmware for the PN7150B0HN/C11004Y requires attention, as it dictates the features and capabilities available.

- I2C Pull-up Resistors: Appropriate pull-up resistors for the I2C lines are necessary to ensure reliable data communication.

- EMI and RFI Considerations: Take action to reduce radio frequency interference and electromagnetic interference, as these may have an impact on NFC transmission.

Incorporating the PN7150B0HN/C11004Y into a smart door lock system illustrates its versatility in NFC applications. By considering the detailed connection and design considerations, one can leverage the PN7150B0HN/C11004Y's features to create efficient, innovative solutions for a wide range of NFC-enabled products.
