What is the Additional Feature ?

Name: PN5321A3HN/C106;55
Brand: NXP USA Inc.
SKU: PN5321A3HN/C106;55
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. PN5321A3HN/C106;55

Part No.:: PN5321A3HN/C106;55

Manufacturer:: NXP USA Inc.

Package:: 40-VFQFN Exposed Pad

Datasheet:: PN5321A3HN/C106;55.pdf

Description:: IC RFID RDR/TRAN 13.56MZ 40HVQFN

In Stock:: 3509

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PN5321A3HN/C106;55 Specifications

Packaging:
Tray
Series:
MIFARE®
ProductStatus:
Active
Type:
RFID Reader/Transponder
Frequency:
13.56MHz
Standards:
FeliCa, ISO 14443, MIFARE, NFC
Interface:
I²C, SPI, UART
Voltage-Supply:
2.7V ~ 5.5V
OperatingTemperature:
-30°C ~ 85°C
MountingType:
Surface Mount

PN5321A3HN/C106;55 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PN5321A3HN/C106;55 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PN5321A3HN/C106;55 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PN5321A3HN/C106;55 information

Views：

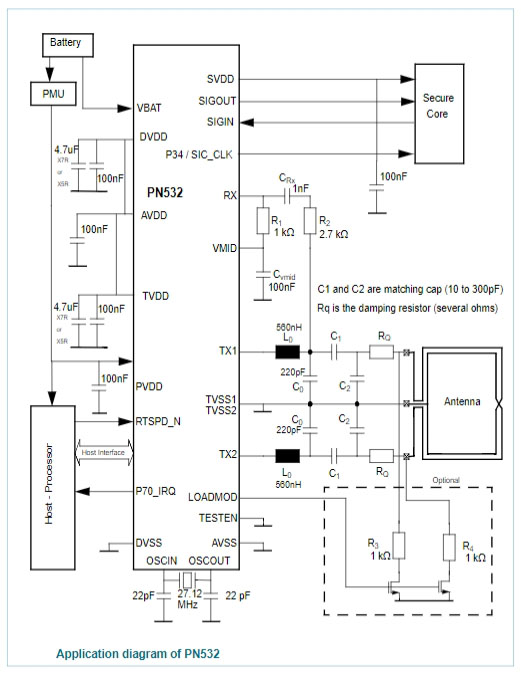

PN5321A3HN/C106;55 Typical application Circuitry

PN5321A3HN C106;55

The PN5321A3HN/C106;55 is a versatile chip utilized for Near Field Communication (NFC), capable of operating in multiple modes such as card emulation, reader/writer, and peer-to-peer communication. It's commonly found in systems for contactless payment, smart advertising, and identity verification.

Core Functionality:

This chip facilitates NFC communication by serving as a highly integrated transceiver module, interacting with NFC tags, smart cards, and NFC-enabled devices.

Typical Applications:

A typical application for the PN5321A3HN/C106;55 is a point-of-sale (POS) system for contactless payment.

Parametric Characteristics:

- 13.56 MHz operation for NFC communication.

- Supports ISO/IEC 14443 A/B, FeliCa, and MIFARE.

- Integrated RF field detector and data mode detector.

- UART, SPI, and I2C communication interfaces.

- Internal voltage regulators and clock generator.

Designing a Contactless Payment POS System:

1. Power Management:

For stable operation, connect VDD (pin 1) to a 3.3V supply, ensuring the use of decoupling capacitors, as per the datasheet recommendations, to minimize power supply noise. Ground is connected to pin 22 (GND).

2. Communication Protocol:

Selecting UART for communication, connect TX (pin 18) and RX (pin 19) to the corresponding RX and TX pins of the controlling microprocessor. If additional control is required, use HSU (High-Speed UART), connecting pin 28 (HSU) to the designated control pin on the microprocessor.

3. External Interface Connections:

For interfacing with external NFC devices, ensure that TX1 (pin 31), TX2 (pin 32), RX (pin 35), and RX (pin 36) are correctly connected to an NFC antenna, following the reference design for impedance matching.

4. Firmware and Boot Settings:

To enable proper firmware boot-up, connect SEL0 (pin 2) and SEL1 (pin 3) to GND for the default I2C interface mode. For alternative interfaces, refer to the datasheet to set the correct logic levels.

5. Host Controller Interface:

I2C is recommended for simplicity. Connect SDA (pin 11) and SCL (pin 12) to the microcontroller's corresponding I2C bus lines. Include pull-up resistors as per the I2C standard specifications.

Circuit Design Considerations:

- Ensure the PCB layout follows best practices for NFC designs, including antenna placement and trace minimization to avoid signal degradation.

- The power supply must be well-regulated, and filtering should be applied to manage noise.

- Incorporate ESD protection on interface lines, especially those exposed to user access.

- Be aware of the thermal management requirements, as defined in the PN5321A3HN/C106;55 datasheet.

- Validate the communication interface timing and protocol settings to match the host microcontroller.

Employing the PN5321A3HN/C106;55 in such a manner enables efficient contactless communication for rapid and secure transactions in a point-of-sale system. Always refer to the datasheet and application notes provided by the manufacturer to confirm the exact configuration for your specific use case.
