Name: PMBT3904M,315
Brand: Nexperia USA Inc.
SKU: PMBT3904M,315
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. PMBT3904M,315

Part No.:: PMBT3904M,315

Manufacturer:: Nexperia USA Inc.

Package:: SC-101, SOT-883

Datasheet:: PMBT3904M,315.pdf

Description:: TRANS NPN 40V 0.2A SOT883

In Stock:: 3019

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PMBT3904M,315 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101
ProductStatus:
Active
TransistorType:
NPN
Current-Collector(Ic)(Max):
200 mA
Voltage-CollectorEmitterBreakdown(Max):
40 V
VceSaturation(Max)@IbIc:
300mV @ 5mA, 50mA
Current-CollectorCutoff(Max):
50nA (ICBO)
DCCurrentGain(hFE)(Min)@IcVce:
100 @ 10mA, 1V
Power-Max:
590 mW
Frequency-Transition:
300MHz
OperatingTemperature:
150°C (TJ)
MountingType:
Surface Mount

PMBT3904M,315 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PMBT3904M,315 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PMBT3904M,315 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PMBT3904M,315 information

Views：

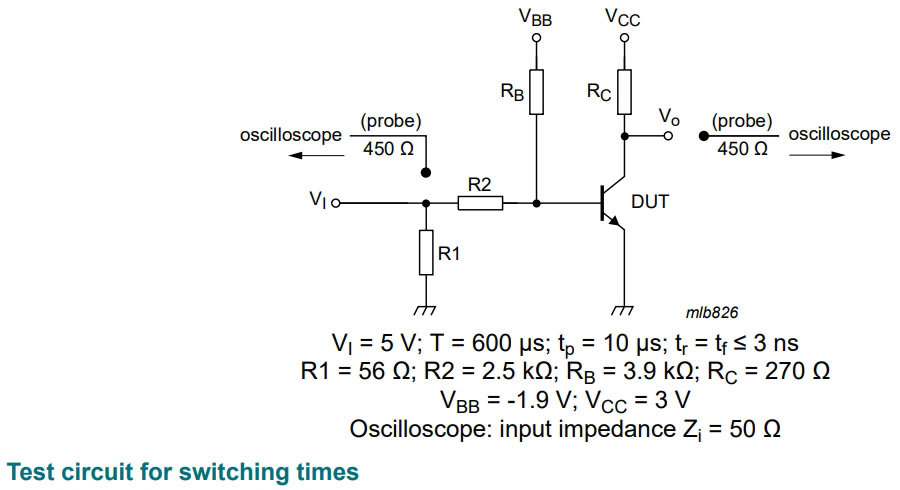

PMBT3904M,315 Typical application Circuitry

PMBT3904M,315

The PMBT3904M,315 is a variant of the widely used PMBT3904 transistor, which is a general-purpose NPN bipolar junction transistor (BJT) used for amplification and switching purposes.

Function of the Chip: The PMBT3904M,315 functions as a switch or amplifier within a circuit. It controls current flow between the collector and emitter, based on the current at the base terminal.

Application Scenarios: Common applications include driving small loads, digital logic switches, signal amplification, and as a switch for LEDs, motors, and other small electronic components.

Parameter Characteristics: The PMBT3904M,315, similar to the standard PMBT3904, typically features a maximum collector current (Ic) of about 200 mA, a maximum collector-emitter voltage (Vce) of 40V, and a collector-base voltage (Vcb) of 60V. It also has a maximum power dissipation around 625 mW, with varying gain (hFE) depending on the exact specifications of the variant.

Example Circuit Connection: An example circuit using the PMBT3904M,315 could be a simple LED driver.

Power Supply Requirements: Begin by determining the supply voltage $ V_{CC} $ required for the circuit, ensuring it is sufficient to drive the LED and the PMBT3904M,315.

Calculating the Current-Limiting Resistor: Calculate the value of the current-limiting resistor $ R_L $ to protect the LED. Use $ R_L = \frac{V_{CC} - V_{LED}}{I_{LED}} $, where $ V_{LED} $ is the forward voltage of the LED and $ I_{LED} $ is the desired current through the LED.

Connecting the LED: Connect the anode of the LED to $ V_{CC} $ and its cathode to one end of $ R_L $, with the other end of $ R_L $ going to the collector (C, pin 3) of the PMBT3904M,315.

Grounding the Emitter: Attach the emitter (E, pin 2) of the PMBT3904M,315 to the ground of the circuit.

Adding a Base Resistor: Add a base resistor $ R_B $ to the base (B, pin 1) of the PMBT3904M,315 to control the base current. $ R_B $ can be determined using $ R_B = \frac{V_{CC} - V_{BE}}{I_B} $, with $ V_{BE} $ typically around 0.7V for silicon BJTs and $ I_B $ calculated to ensure the transistor is in saturation when the LED is supposed to be on.

Input Signal: Apply the input signal to the base resistor $ R_B $. When the input signal is high, the transistor should saturate and allow current to flow from the collector to the emitter, thus lighting the LED.

Design Considerations: The design of the circuit with PMBT3904M,315 needs to account for the current gain (hFE) of the transistor to ensure proper saturation. Additionally, the power dissipation within the PMBT3904M,315 should be checked, especially if the transistor is expected to switch frequently or drive higher currents.

In conclusion, when using the PMBT3904M,315 in a circuit, careful attention must be given to the calculation of resistors and the power dissipation. Proper use of the PMBT3904M,315 in accordance with its specifications will ensure a reliable and efficient design.
