Powerex Inc. PM50RL1A120

Part No.:: PM50RL1A120

Manufacturer:: Powerex Inc.

Package:

Datasheet:: PM50RL1A120.pdf

Description:: MOD IPM 7-PAC L1 50A 1200V

In Stock:: 2923

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PM50RL1A120 Specifications

Package/Case:
Packaging:
Bulk
Series:
Intellimod™
Product Status:
Discontinued at Mosen
Type:
IGBT
Configuration:
3 Phase
Current:
50 A
Voltage:
1.2 kV
Voltage-Isolation:
2500Vrms
MountingType:
Chassis Mount

PM50RL1A120 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PM50RL1A120 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PM50RL1A120 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PM50RL1A120 information

Views：

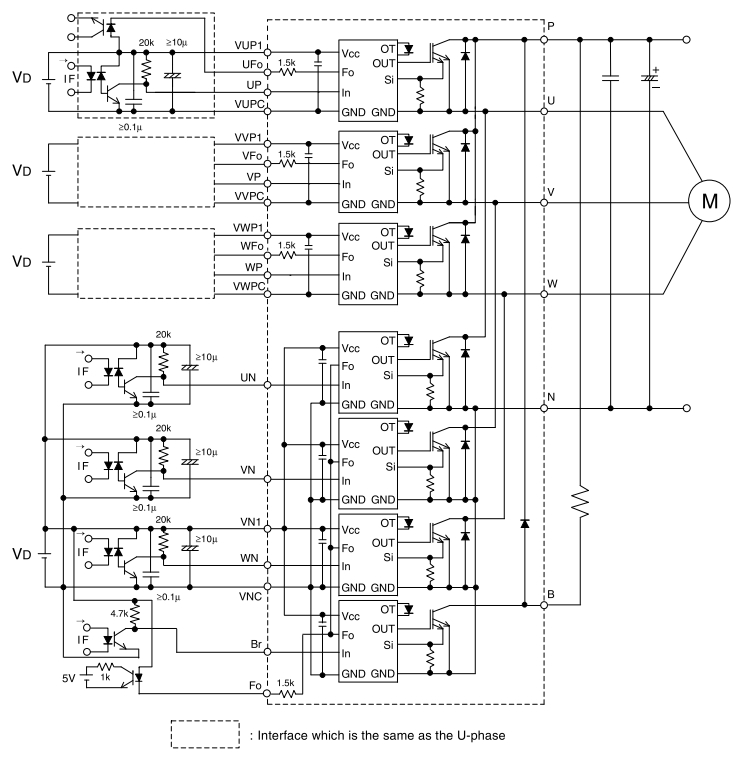

PM50RL1A120 Typical application Circuitry

PM50RL1A120

The PM50RL1A120 is a type of Insulated Gate Bipolar Transistor (IGBT) module designed for use in high voltage and high power applications. IGBTs combine the low-saturation-voltage and high-current capabilities of bipolar transistors with the simple gate driving characteristics of MOSFETs.The PM50RL1A120 is particularly suited for applications such as power inverters, motor drives, and power factor correction circuits. These devices are key in sectors ranging from renewable energy to electric vehicles and industrial motor control.

Key Features and Specifications:

- High Voltage and Current Ratings: The PM50RL1A120 can handle up to 1200 volts (V) and 50 amperes (A), making it suitable for medium to high power applications.

- Low On-Resistance: This feature ensures high efficiency by minimizing power loss when the device is conducting.

- Fast Switching Speed: The ability to switch on and off rapidly reduces transition losses and improves overall efficiency in applications such as PWM (Pulse Width Modulation) inverters.

- Integrated Protection Features: Includes over-current, short-circuit, and over-temperature protection, enhancing system reliability and safety.

- Isolation: By creating an insulated gate, the apparatus enhances noise immunity and safety by offering electrical isolation between the power and control circuits.

Application Scenario: Solar Power Inverter

In a solar power inverter system, the PM50RL1A120 can be used to convert DC power from solar panels into AC power, suitable for use in home electrical systems or for feeding back into the power grid.

Circuit Connection Detailing

- DC Input Connection: The positive and negative terminals from the solar panel array connect to the DC input terminals of the inverter circuit, which feeds into the primary side of the PM50RL1A120 module. This connection is crucial for harnessing solar energy efficiently.

- AC Output Generation: The PM50RL1A120 is configured within an H-bridge circuit to convert the DC input into an AC output. Each IGBT within the module switches in sequence, creating a pseudo-sine wave at the output terminals, marked as U, V, and W, which connect to the AC load or grid.

- Gate Drive Circuits: The gate terminals of each IGBT in the PM50RL1A120 require connection to a gate drive circuit. This circuit controls the timing and duration of the gate signals to switch the IGBTs on and off, optimizing the inverter's efficiency and output waveform quality.

- Feedback and Control: A feedback mechanism is employed to monitor the output voltage and current, ensuring that the inverter output matches the desired AC power characteristics. This feedback connects to a control unit that adjusts the gate drive signals accordingly.

- Protection Circuits: External protection circuits are connected to the PM50RL1A120 to enhance the module's built-in protection features. This includes additional temperature sensing and current monitoring to prevent overheating and overloading.

Design Considerations:

- Heat Dissipation: Effective thermal management is essential to maintain the PM50RL1A120 within safe operating temperatures. Heatsinks, thermal pads, and possibly active cooling techniques are frequently used in this.

- EMI and EMC: Particularly in inverter applications, electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues are crucial.

The design should include filtering and shielding to minimize noise emission and susceptibility.

- Gate Drive Optimization: The gate drive circuit must be carefully designed to provide the appropriate gate voltage and current, ensuring fast and reliable switching of the PM50RL1A120 without inducing excessive gate stress.

- Isolation: Adequate electrical isolation between the control circuitry and the high-power section is necessary to protect the control electronics from high voltages and currents.

- Scalability and Modularity: The system design should consider scalability and modularity, allowing for easy expansion or adaptation based on changing power requirements or technological advancements.

Utilizing the PM50RL1A120 in a solar power inverter illustrates the module's capability to efficiently manage the conversion of solar energy into usable AC power. By addressing the above design considerations, engineers can develop robust, efficient, and safe solar inverter systems that maximize the benefits of renewable energy sources.
