Key Functions

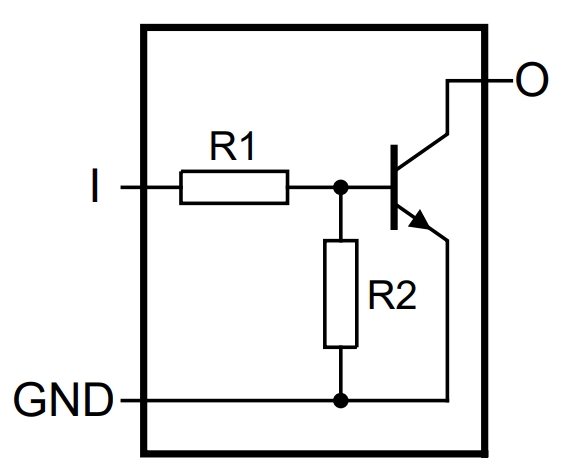

- Integrated Resistor-Transistor Pair: This component integrates a bias resistor and a transistor, facilitating simplified circuit design, particularly in digital and logic applications.
Application Scenarios
- Microcontroller Interfacing: Commonly used in interfacing with microcontrollers for controlling peripherals like motors, LEDs, or sensors.
- Logic Circuits: Ideal for use in digital logic circuits, where it can function as an inverter, buffer, or driver.
Parameter Characteristics
- Input Resistor (R1): The built-in resistor value is critical for determining the base current for the transistor.
- Maximum Collector Current (Ic max): This value indicates the highest current that can flow through the collector, vital for current handling capabilities.
- Collector-Emitter Voltage (Vceo): The maximum voltage that the transistor can tolerate between its collector and emitter, essential for voltage compatibility.
Circuit Connection Example: Microcontroller Interface
- Base Connection (Pin 1): Connect the microcontroller's output pin to Pin 1 of PDTC114ET-QR. This will control the transistor's switching.
- Collector to Load (Pin 3): Connect Pin 3 to the load (e.g., an LED or a motor).
- Emitter Grounding (Pin 2): Ground Pin 2. Ensure that the load's other terminal is also connected to a suitable voltage source or ground, as per the requirements.
- Selecting Supply Voltage: Choose a supply voltage that is compatible with both the PDTC114ET-QR and the connected load.
Design Considerations
- Heat Dissipation: Assess the heat generation and, if necessary, incorporate heat sinks or other cooling methods.
- Biasing Accuracy: Ensure accurate biasing for stable transistor operation.
- Switching Frequency: Consider the transistor's response time if the application involves high-frequency switching.
- Voltage and Current Ratings: Match the voltage and current ratings of the transistor with the overall circuit requirements to prevent damage.
In summary, the PDTC114ET-QR is a versatile digital transistor, suitable for various applications like microcontroller interfaces and logic circuits. Understanding its functionality, key parameters, and a detailed approach to circuit connection, as well as crucial design considerations, is pivotal for effectively integrating this component into electronic designs.
