Nexperia USA Inc. PBSS5350Z/ZLF

Part No.:: PBSS5350Z/ZLF

Manufacturer:: Nexperia USA Inc.

Package:: TO-261-4, TO-261AA

Datasheet:: PBSS5350Z/ZLF.pdf

Description:: TRANS PNP 50V 3A SOT223

In Stock:: 3873

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PBSS5350Z/ZLF Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
TransistorType:
PNP
Current-Collector(Ic)(Max):
3 A
Voltage-CollectorEmitterBreakdown(Max):
50 V
VceSaturation(Max)@IbIc:
300mV @ 200mA, 2A
Current-CollectorCutoff(Max):
100nA (ICBO)
DCCurrentGain(hFE)(Min)@IcVce:
200 @ 1A, 2V
Power-Max:
2 W
Frequency-Transition:
100MHz
OperatingTemperature:
150°C (TJ)
MountingType:
Surface Mount

PBSS5350Z/ZLF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PBSS5350Z/ZLF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PBSS5350Z/ZLF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PBSS5350Z/ZLF information

Views：

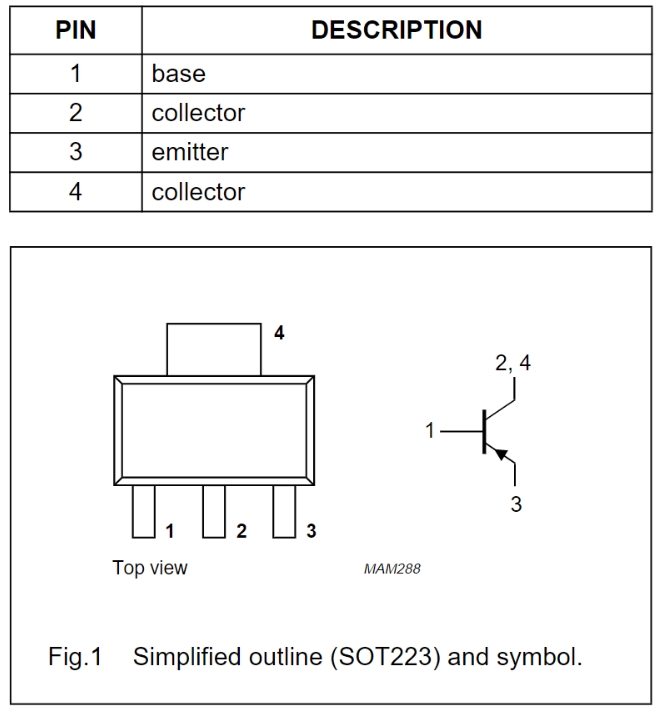

PBSS5350Z/ZLF Typical application Circuitry

PBSS5350Z ZLF

The NPN low VCEsat (BISS) transistor, PBSS5350Z/ZLF, is housed in a tiny plastic Surface-Mounted Device (SMD) packaging. Designated for high-speed, high-efficiency switching applications, power management, switch mode power supplies, and motor driving circuits are typical uses for it.

PBSS5350Z/ZLF Features

1. Low VCEsat: causes the collector-emitter voltage drop across the transistor to be low when the transistor is in the "on" state, which increases efficiency and decreases power dissipation.

2. High Collector Current: It is appropriate for power switching applications since it can handle high currents.

3. High-Speed Switching: Designed for high-speed switching, which is essential in reducing switching losses in circuits.

4. SMD Package: Compact footprint for space-sensitive applications.

Application Scenario: Switch Mode Power Supply (SMPS)

In a Switch Mode Power Supply, the PBSS5350Z/ZLF can be used for high-speed switching in the power regulation process. Here's a detailed guide for connecting this in an SMPS:

Circuit Connection Details

1. Collector (C - Pin 1):

- Load Connection: Connect the collector to the primary side of the transformer or to the load, depending on your SMPS design.

2. Base (B - Pin 2):

- Control Signal Input: Connect the base to the PWM controller output. This pin controls the switching of the PBSS5350Z/ZLF. Use a current-limiting resistor to protect the transistor and to control the base current.

3. Emitter (E - Pin 3):

- Grounding the Emitter: Connect the emitter to the ground or the negative side of the power supply. This completes the current path through the transistor.

Design Considerations

When designing a circuit with the PBSS5350Z/ZLF, consider the following:

1. Thermal Management: Ensure proper heat dissipation, as high-speed switching can generate significant heat. This may involve the use of heat sinks or thermal pads.

2. Drive Current: Provide an adequate drive current to the base to ensure the transistor switches fully on and off. This involves choosing the correct base resistor value.

3. Switching Frequency: Consider the switching frequency. The PBSS5350Z/ZLF is capable of high-speed switching, but the total switching loss must be considered in the thermal design.

4. Signal Integrity: In high-speed applications, ensure that the drive signal to the base is clean and sharp to minimize switching times and avoid transitional losses.

5. Voltage Ratings: Ensure that the voltage ratings of the PBSS5350Z/ZLF are not exceeded. This includes the collector-emitter voltage and the collector-base voltage.

By carefully addressing these considerations and utilizing the features and pin configurations of the PBSS5350Z/ZLF, one can effectively integrate this transistor into sophisticated applications like Switch Mode Power Supplies. The PBSS5350Z/ZLF, with its low VCEsat, high current handling, and high-speed switching capabilities, is an excellent choice for efficient power management and regulation in compact, high-performance circuits.
