Name: PBSS4350Z/ZLF
Brand: Nexperia USA Inc.
SKU: PBSS4350Z/ZLF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. PBSS4350Z/ZLF

Part No.:: PBSS4350Z/ZLF

Manufacturer:: Nexperia USA Inc.

Package:: TO-261-4, TO-261AA

Datasheet:: PBSS4350Z/ZLF.pdf

Description:: TRANS NPN 50V 3A SOT223

In Stock:: 2103

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PBSS4350Z/ZLF Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
TransistorType:
NPN
Current-Collector(Ic)(Max):
3 A
Voltage-CollectorEmitterBreakdown(Max):
50 V
VceSaturation(Max)@IbIc:
290mV @ 200mA, 2A
Current-CollectorCutoff(Max):
100nA (ICBO)
DCCurrentGain(hFE)(Min)@IcVce:
200 @ 1A, 2V
Power-Max:
2 W
Frequency-Transition:
100MHz
OperatingTemperature:
150°C (TJ)
MountingType:
Surface Mount

PBSS4350Z/ZLF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PBSS4350Z/ZLF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PBSS4350Z/ZLF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PBSS4350Z/ZLF information

Views：

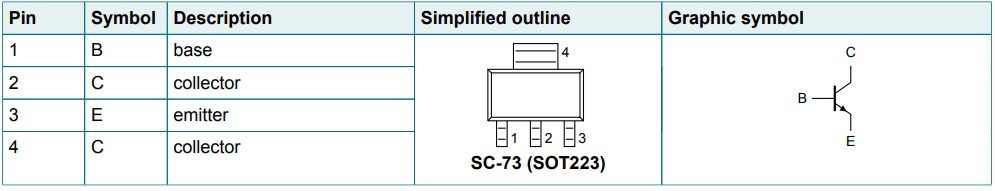

PBSS4350Z/ZLF Typical application Circuitry

PBSS4350Z ZLF

PBSS4350Z/ZLF is a high-performance, low VCEsat (collector-emitter saturation voltage) NPN transistor from NXP Semiconductors, designed for use in high-efficiency switching applications.

Application Scenarios

A practical application for the PBSS4350Z/ZLF is in a power management circuit within a portable electronic device, such as a smartphone or a tablet, where it can be used to switch power to various subsystems efficiently.

Parameter Features

- Low VCEsat: Offers low collector-emitter saturation voltage, which enhances efficiency by minimizing power loss during switching.

- High Current Capability: This feature allows it to handle high current levels, which makes it appropriate for high-power applications.

- Small Package: Available in a small surface-mount package, which is ideal for compact electronic assemblies.

- Wide Operating Temperature Range: Suitable for use in a broad range of environmental conditions, enhancing its applicability in various applications.

Detailed Circuit Connection - Portable Device Power Management

1. Power Switch Configuration

Begin by integrating the PBSS4350Z/ZLF as a power switch in the device's power management circuit. Connect the collector to the power source that needs to be switched, ensuring it can handle the required voltage and current levels.

2. Base Drive Circuitry

Implement a base drive circuit to control the PBSS4350Z/ZLF. This could involve a resistor connected to a GPIO pin of a microcontroller, ensuring the base current is sufficient to fully saturate the transistor when switching the connected load.

3. Emitter Connection

Ensure the emitter is solidly connected to the ground. This establishes a return path for the current and is crucial for the proper operation of the transistor as a switch.

4. Load Connection

Connect the load (such as a subsystem module that requires controlled power) to the collector of the PBSS4350Z/ZLF. To avoid damage, make sure the load does not exceed the transistor's maximum current rating.

Circuit Design Considerations

- Heat Dissipation: Consider the power dissipation in the PBSS4350Z/ZLF, especially when operating at high currents. To keep the transistor running safely within its temperature range, use the proper thermal management measures.

- Current Limiting: Incorporate a current limiting resistor or fuse in series with the collector to protect the PBSS4350Z/ZLF and the load from overcurrent conditions.

- Base Resistor Selection: Choose an appropriate value for the base resistor to ensure that the transistor switches fully on (saturates) during operation, without exceeding the maximum base current rating.

- Voltage Ratings: Ensure that the voltage ratings of the PBSS4350Z/ZLF are not exceeded by the application's power supply voltage to avoid breakdown or damage to the transistor.

By adhering to these considerations, the PBSS4350Z/ZLF can be effectively utilized in a portable device's power management circuit, providing efficient and reliable switching of power to various subsystems, thereby contributing to the overall power efficiency and performance of the device.
