Murata Power Solutions Inc. OKL-T/3-W12N-C

Part No.:: OKL-T/3-W12N-C

Manufacturer:: Murata Power Solutions Inc.

Package:: 12-SMD Module

Datasheet:: OKL-T/3-W12N-C.pdf

Description:: DC DC CONVERTER 0.591-5.5V 15W

In Stock:: 2102

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OKL-T/3-W12N-C Specifications

Package/Case:
12-SMD Module
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Okami™ OKL-T/3-W12
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
14V
Voltage-Output1:
0.591 ~ 5.5V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
3A
Power(Watts):
15 W
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
Remote On/Off, OCP, OTP, SCP, UVLO
OperatingTemperature:
-40°C ~ 85°C
Efficiency:
93%
MountingType:
Surface Mount
Size/Dimension:
0.48 L x 0.48 W x 0.25 H (12.2mm x 12.2mm x 6.4mm)
ControlFeatures:
ApprovalAgency:

OKL-T/3-W12N-C this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OKL-T/3-W12N-C price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OKL-T/3-W12N-C to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OKL-T/3-W12N-C information

Views：

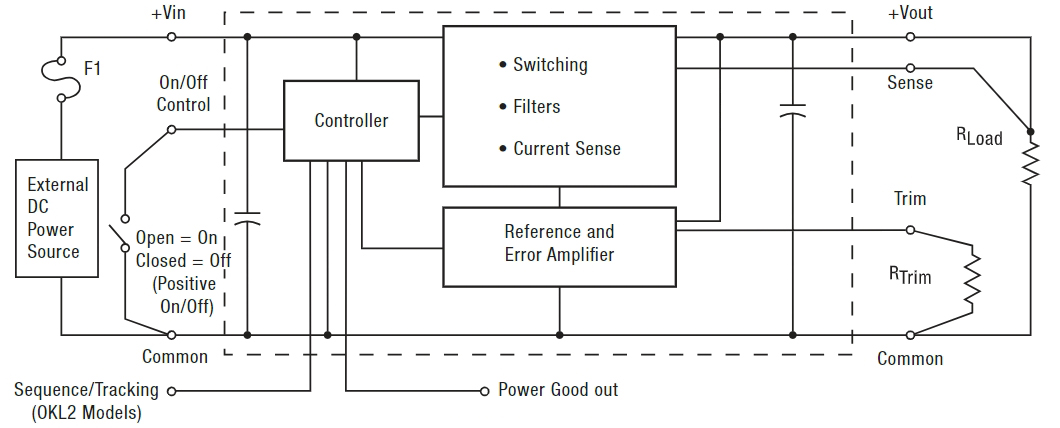

OKL-T/3-W12N-C Typical application Circuitry

OKL-T 3-W12N-C

The OKL-T/3-W12N-C is a highly efficient, programmable output DC-DC converter module, part of the Murata Power Solutions series. It is designed to deliver a high level of performance in terms of voltage regulation, efficiency, and flexibility for a wide range of applications. This module is particularly suited for low-voltage, high-current applications due to its ability to provide up to 3A of output current.

Application Scenarios

The OKL-T/3-W12N-C is versatile and can be used in various electronic systems, including but not limited to telecommunications equipment, industrial control systems, battery-powered devices, and embedded systems where efficient power conversion is required. Its programmable output voltage feature makes it suitable for applications that require precise voltage levels to power different components.

Features and Parameters:

- Programmable output voltage that can be adjusted to meet the demands of a given application. The output voltage range typically covers from 0.8V up to a specified maximum, which depends on the input voltage.

- Input voltage range that accommodates a wide variety of source voltages, typically from 4.5V to 14V, making it suitable for many different types of systems.

- High efficiency, which minimizes energy loss during power conversion, leading to reduced heat generation and lower energy consumption.

- Output current capability of up to 3A, catering to applications that demand significant power.

- Compact size, which facilitates easy integration into space-constrained designs.

- Inbuilt safety features that improve the module's dependability and safety, such as thermal shutdown and overcurrent protection.

Detailed Example of a Circuit Connection

1. Input Voltage Connection: The input voltage (within the 4.5V to 14V range) should be connected to the designated input pins of the OKL-T/3-W12N-C. This voltage source could be a battery, an AC-DC converter, or any other DC source fitting within the specified range.

2. Output Voltage Setting: The output voltage is programmable via an external resistor connected between specific pins (usually the trim pin and the ground).The output voltage is determined by the value of this resistor using a formula found in the datasheet for the module.

3. Output Load Connection: Connect your load to the output pins of the OKL-T/3-W12N-C, ensuring that the load does not exceed the module's maximum output current of 3A.

4. Grounding: Proper grounding is crucial. Connect the ground pin of the module to the common ground of your system to ensure stability and proper operation.

5. Cooling and Ventilation: Although the OKL-T/3-W12N-C is designed for high efficiency, it is still vital to consider thermal management, especially when operating at high loads or in high ambient temperatures. Ensure sufficient airflow or consider additional cooling mechanisms if necessary.

Design Considerations

- Input Voltage: Make sure the input voltage always falls within the specified range to prevent damage to the module.

- Output Voltage Adjustment: Precisely calculate and set the resistor value for the desired output voltage, adhering to the guidelines provided in the datasheet.

- Load Requirements: Confirm that the total power demand of your load does not exceed the output capacity of the OKL-T/3-W12N-C.

- Thermal Management: Evaluate the thermal performance in your specific application environment and implement appropriate cooling solutions if required.

- Protection: Although the module includes basic protection features, consider additional external protection mechanisms, such as input fuses, to safeguard against extreme conditions.

Incorporating the OKL-T/3-W12N-C into your design offers flexibility in voltage regulation, high efficiency in power conversion, and reliability, making it an excellent choice for a wide array of power management applications.
