TDK InvenSense MPU-6500

Part No.:: MPU-6500

Manufacturer:: TDK InvenSense

Package:: 24-VFQFN Module Exposed Pad

Datasheet:: MPU-6500.pdf

Description:: IMU ACCEL/GYRO 3-AXIS I2C 24QFN

In Stock:: 3855

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MPU-6500 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MPU-6500 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MPU-6500 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

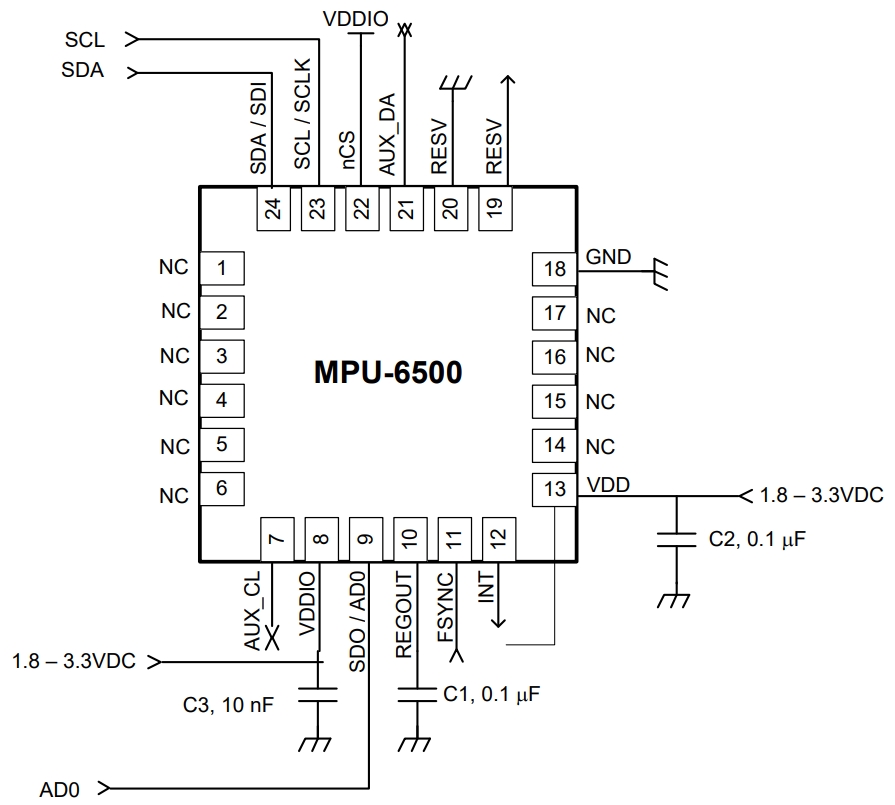

MPU-6500 Typical application Circuitry

MPU-6500

The MPU-6500 is an extremely efficient motion tracking device because it combines an onboard Digital Motion Processor (DMP) that can execute intricate MotionFusion algorithms with an integrated 3-axis accelerometer and gyroscope on the same silicon die.

Features: This device possesses the agility to operate in multiple power supply modes, ensuring optimal power efficiency. It has garnered prominence for its motion-tracking capabilities alongside its responsiveness and precision.

Application Scenarios: The MPU-6500 is integral in applications like augmented reality (AR), where real-time motion tracking is a prerequisite.

Electrical Characteristics: It exhibits remarkable efficiency, backed by its capacity to deliver precise motion tracking while minimizing power consumption.

Application in Detail: Augmented Reality Devices

1. Power Management:

- VCC Pin: The VCC pin should be connected to a 3.3V power supply to enable consistent operation.

- Ground Connection: Establish a solid connection of the GND pin to ensure electrical stability and noise mitigation.

2. Data Interface Configuration:

- Communication Pins: Connect SDA/SCL pins to the MCU, enabling I2C communication and facilitating data exchange.

- Pull-up Resistors: Implement pull-up resistors to maintain data signal integrity.

3. Interrupt Handling:

- INT Pin Connection: Link the INT pin to the MCU's interrupt, ensuring timely data processing.

- Interrupt Service Routine: Develop a responsive ISR to manage data interrupts effectively.

4. Address Selection:

- AD0 Pin: Set the AD0 pin to low or high state to alter the I2C slave address when integrating multiple MPU-6500 units.

- Address Verification: Ensure no address conflict with other I2C devices in the circuit.

Design Concerns

1. Noise Management:

- Bypass Capacitors: Installing bypass capacitors close to VCC and GND pins is essential for filtering out electrical noise.

- Noise Filtering Algorithms: Integrate algorithms in the software to filter out sensor noise effectively.

2. Calibration Protocols:

- Calibration Process: Initiate a calibration routine during startup to correct sensor biases and enhance accuracy.

- Calibration Data Storage: Store calibration data in non-volatile memory for retention across power cycles.

3. Sensor Attachment:

- Position: Place the MPU-6500 in a location free from vibrational interference and temperature variations.

- Mounting: Ensure the device is firmly mounted to avoid unintended movements.

With these configurations, the MPU-6500 can be adeptly incorporated into AR applications. Its precision in motion tracking greatly enhances user experience by ensuring real-time, accurate motion data processing, crucial for the immersive and interactive nature of augmented reality.

MPU-6500 information

MPU-6500 Specifications

Package/Case:
24-VFQFN Module Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
MotionTracking™
ProductStatus:
Not For New Designs
SensorType:
Accelerometer, Gyroscope, 6 Axis
OutputType:
I²C, SPI
OperatingTemperature:
-40°C ~ 85°C (TA)
