TDK InvenSense MPU-6050

The MPU-6050 is a widely used sensor module known for its combination of a 3-axis gyroscope and a 3-axis accelerometer. It is used in various applications like motion sensing, gaming, robotics, and more. In this article, we will explore the MPU-6050 Pinout, provide details from the MPU-6050 datasheet, and showcase how to use the module with Arduino and Python in different projects. Additionally, we will include some helpful resources like the MPU-6050 user manual, schematic, and the MPU-6050 library.

• Introduction to MPU-6050
• MPU-6050 Pinout
• MPU-6050 and Magnetometer Interfacing Circuit
• MPU-6050 Arduino Projects
• MPU-6050 Python Projects
• MPU-6050 ESP32 Integration
• MPU-6050 Register Map
• MPU-6050 Package Details
• Sum up
• Frequently Asked Questions

Introduction to MPU-6050

The MPU-6050 is a motion-tracking device that integrates an accelerometer and a gyroscope into a single chip. By measuring the angular velocity (gyroscope) and linear acceleration (accelerometer), the MPU-6050 provides data to understand an object's orientation and motion. The sensor uses the I2C communication protocol for data exchange with a microcontroller or processor, making it easy to interface with platforms like Arduino and ESP32.

MPU-6050 Features

The MPU-6050 combines a 3-axis accelerometer and 3-axis gyroscope with the following key features:

Accelerometer Range: ±2g to ±16g

Gyroscope Range: ±250 to ±2000 dps

Communication: I2C interface

Low Power Consumption

Built-in Digital Motion Processor (DMP)

Temperature Sensor

MPU-6050 Pinout

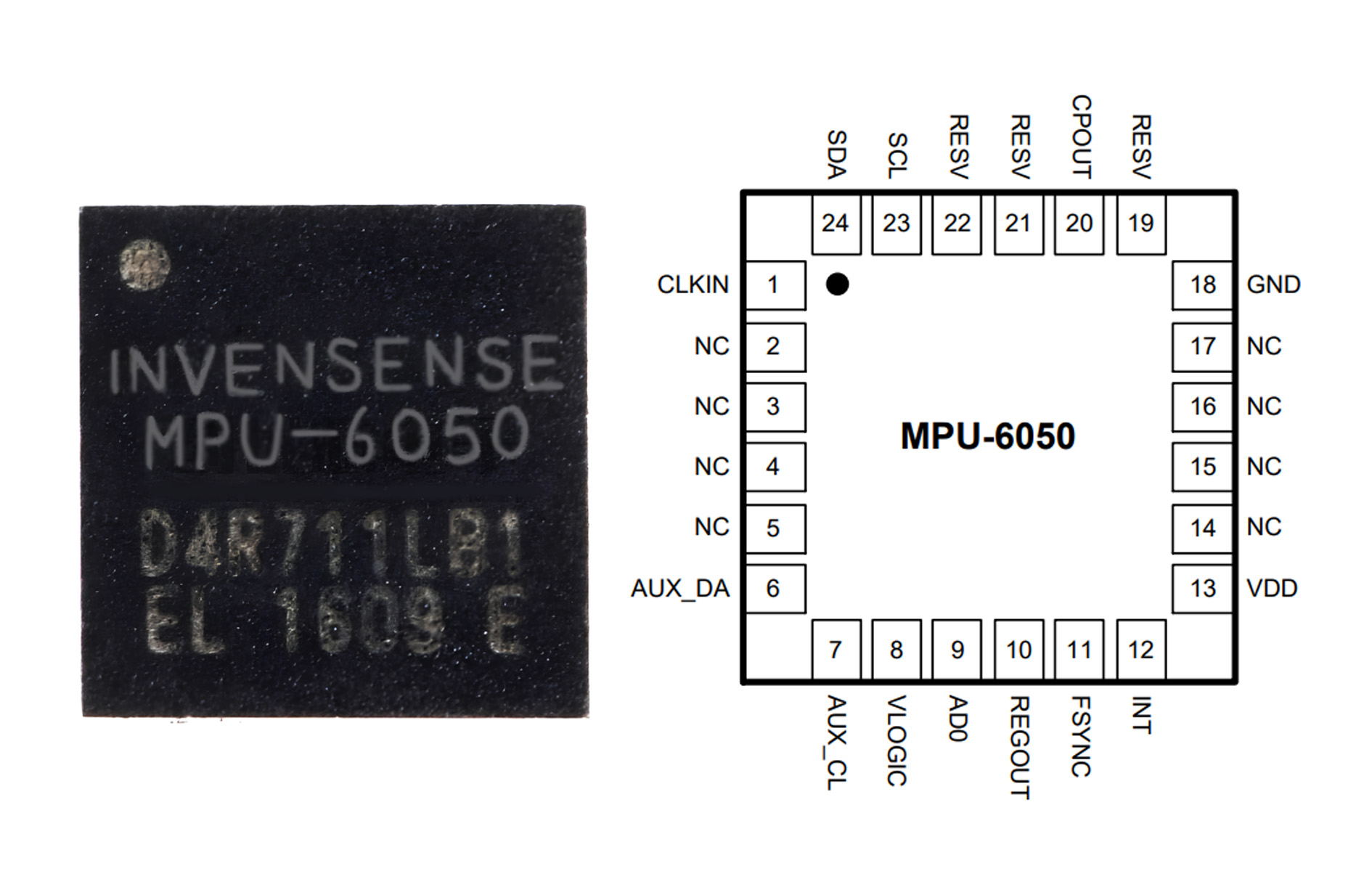

MPU-6050 Pinout

Understanding the MPU-6050 Pinout is essential for correctly wiring the module to a microcontroller. The pinout typically includes the following pins:

These pins are fundamental to the connection between the MPU-6050 sensor and the microcontroller. The MPU-6050 schematic will provide more detailed circuit designs that showcase how to connect the module to various platforms.

MPU-6050 and Magnetometer Interfacing Circuit

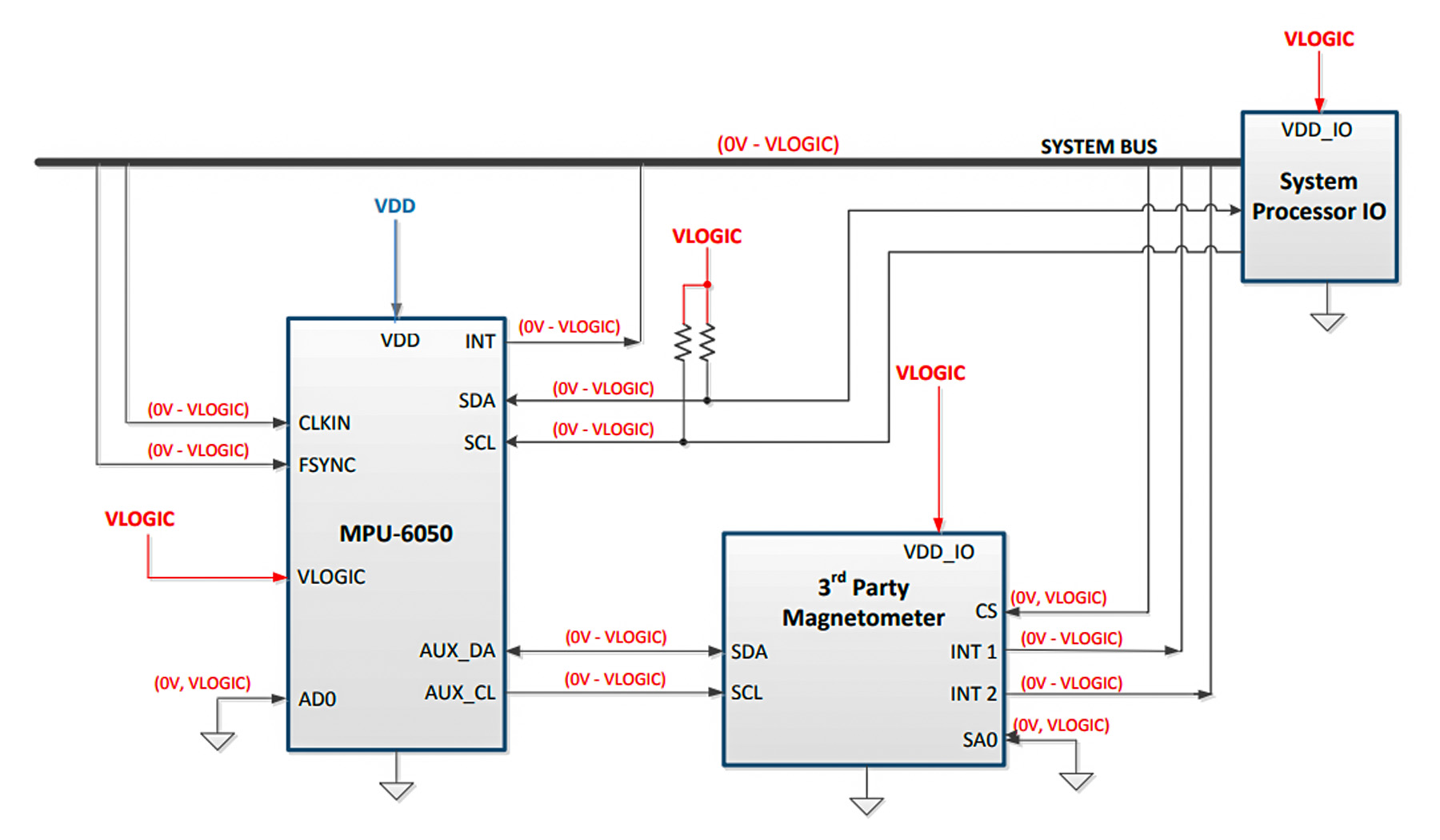

MPU-6050 and Magnetometer Interfacing Circuit

This is a connection diagram of the MPU-6050 with an external magnetometer, showing how the IMU interacts with a system processor and an auxiliary sensor.

MPU-6050:

A 6-axis IMU (accelerometer + gyroscope) measuring motion and rotation.

Communicates via I2C (SDA/SCL) with the system processor.

Auxiliary I2C (AUX_DA/AUX_CL) connects to the external magnetometer.

Interrupt pin (INT) signals events to the processor.

External Magnetometer:

Measures magnetic fields to complement MPU-6050 data.

Shares the I2C bus through the MPU-6050's auxiliary interface.

Can send interrupts (INT1/INT2) to the system processor.

System Processor:

Receives combined motion and magnetic data from MPU-6050 via I2C.

Power and Logic:

All signals operate at VLOGIC levels.

Pull-up resistors ensure stable I2C communication.

MPU-6050 Arduino Projects

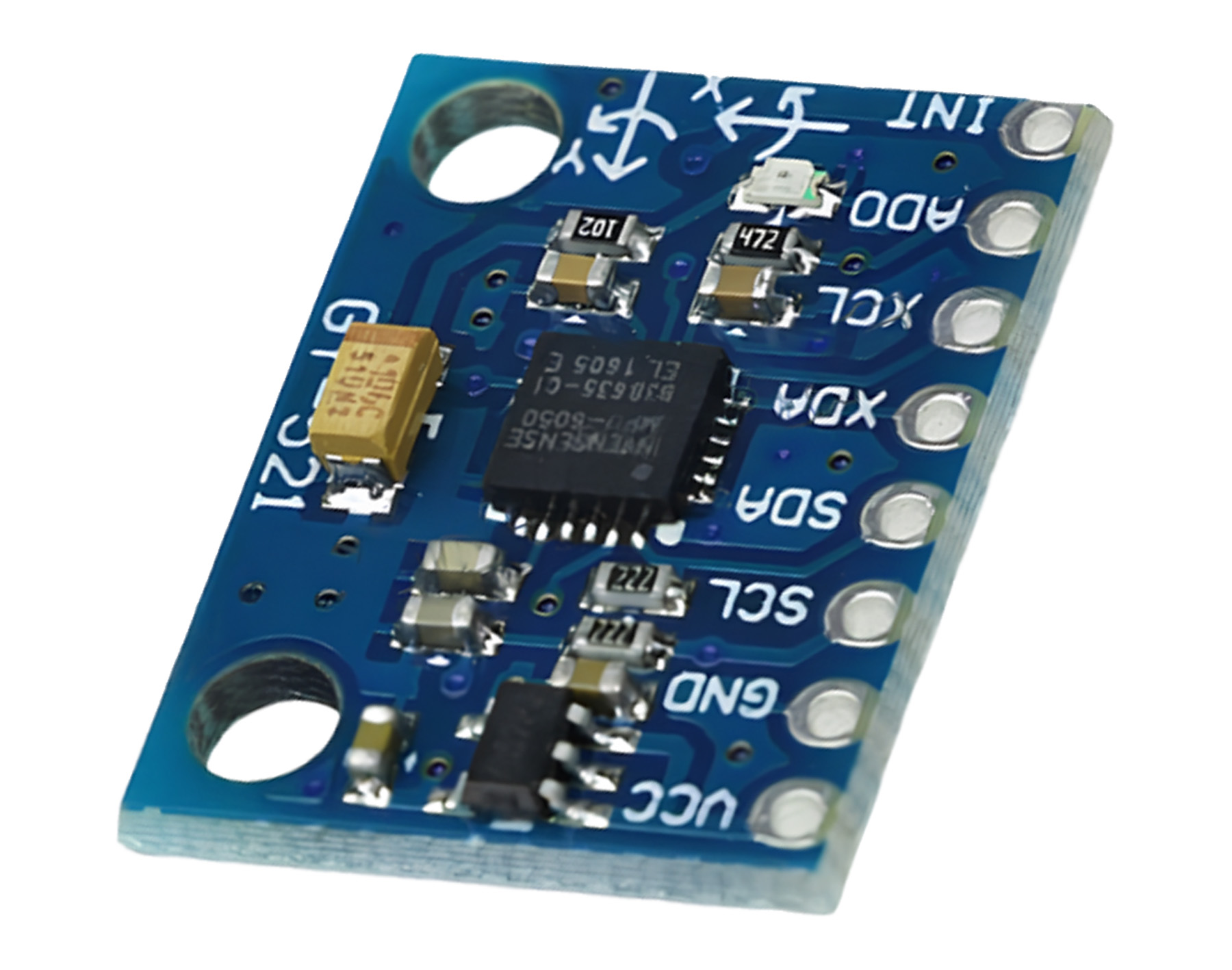

MPU-6050 Arduino

Using the MPU-6050 Arduino combination opens up numerous possibilities for exciting projects. Here are some examples of what you can do:

1. Motion Detection System

With the MPU-6050 sensor, you can create a motion detection system using an Arduino. By continuously reading data from the accelerometer and gyroscope, you can detect changes in position or orientation, triggering events when a specific threshold is crossed.

2. 3D Joystick

One of the most common projects using the MPU-6050 Arduino setup is the 3D joystick. By using the accelerometer and gyroscope, you can control movement in three dimensions, often used in robotics and gaming applications.

3. Drone Stabilization System

Drones rely heavily on motion sensors for stabilization. The MPU-6050 can provide real-time orientation data to help control pitch, roll, and yaw. By feeding this information into the drone's flight controller, you can achieve smoother and more stable flights.

4. Gesture Recognition

By analyzing the data from the accelerometer, the MPU-6050 Arduino can detect specific gestures such as shaking, tilting, or rotating, making it ideal for projects that require gesture control.

For more detailed instructions on setting up your projects, refer to the MPU-6050 tutorial available online.

MPU-6050 Python Projects

The MPU-6050 python library can also be used for working with this sensor on platforms like Raspberry Pi or other Python-based systems. Here's how you can use it:

1. Python Data Logging

You can use the MPU-6050 with Python to log motion data from the accelerometer and gyroscope. This project is useful for analyzing motion patterns, creating charts, or building real-time applications.

2. Real-Time Monitoring

Another popular Python project is real-time motion monitoring, where the MPU-6050 sensor sends its data to a Python program that processes and displays the information on a graphical interface.

To interface with the MPU-6050 using Python, the MPU-6050 library simplifies the task by providing functions to communicate with the sensor, configure settings, and read data.

MPU-6050 ESP32 Integration

Integrating the MPU-6050 ESP32 is an excellent way to utilize the powerful processing capabilities of the ESP32 in conjunction with the MPU-6050 sensor. The MPU-6050 ESP32 setup involves wiring the sensor to the ESP32's I2C pins and configuring the ESP32 to read data from the sensor.

The MPU-6050 esp32 setup can be particularly useful in IoT projects where you need real-time motion data sent to a server or cloud service. With the ESP32's WiFi capabilities, you can build motion-tracking applications that communicate remotely.

MPU-6050 Register Map

The MPU-6050 register map is a critical part of using the sensor. The registers control various aspects of the sensor's operation, such as setting the accelerometer and gyroscope ranges, reading raw data, and configuring interrupts. Understanding the MPU-6050 register map will help you customize the sensor's behavior to suit your project needs.

Important Registers:

0x3B-0x40: Accelerometer data registers (X, Y, Z).

0x43-0x46: Gyroscope data registers (X, Y, Z).

0x6A: Power management register.

0x1A: Configuration register.

Reading and writing to these registers can be done via I2C commands, and the MPU-6050 datasheet provides detailed descriptions of each register.

MPU-6050 Package Details

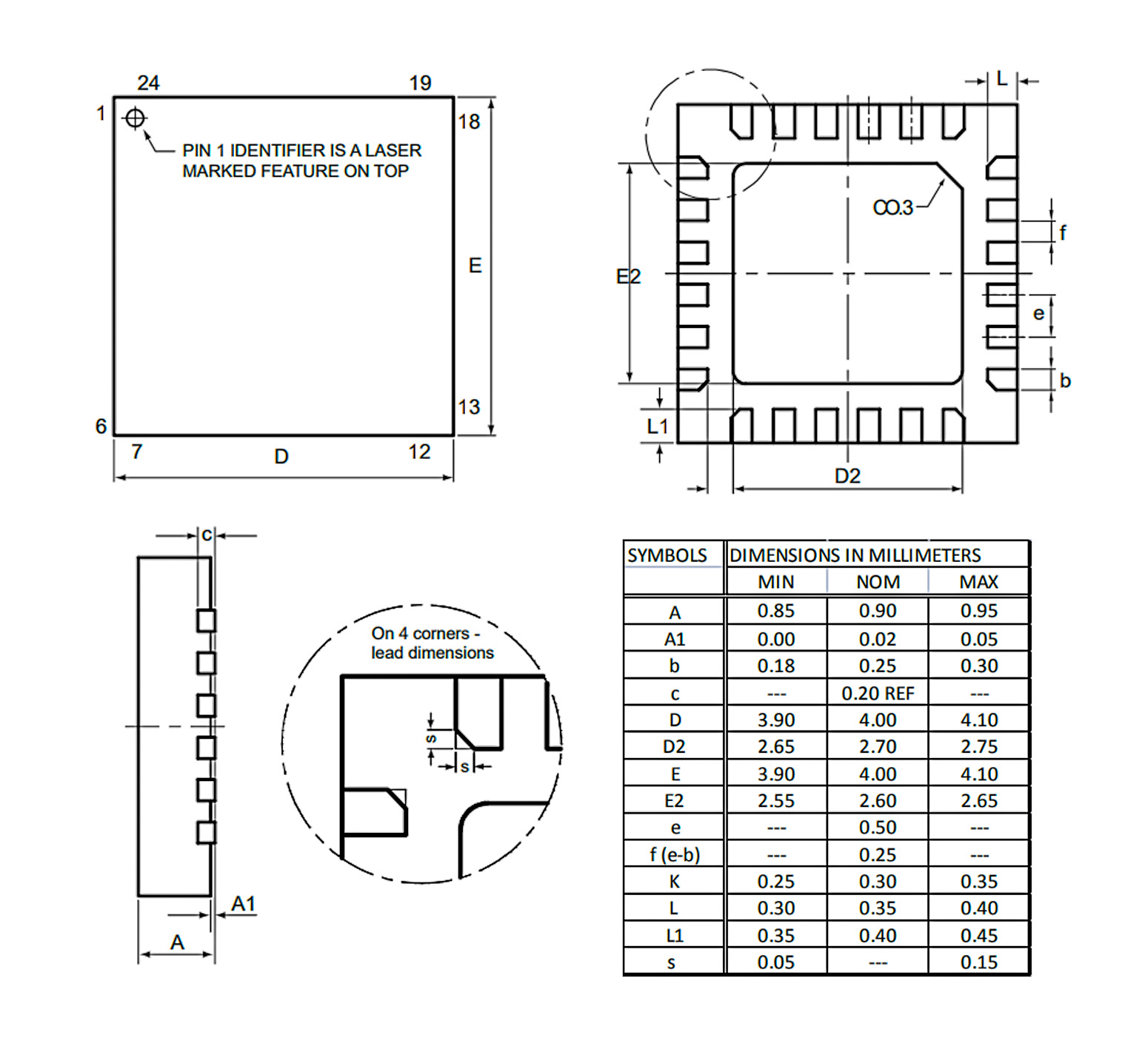

MPU-6050 package

The MPU-6050 comes in a 24-pin QFN package, providing a compact and efficient design for various embedded systems. Key dimensions and features include:

Package Type: QFN (Quad Flat No-lead)

Pin Count: 24

Overall Dimensions (D, E): 4.00 mm x 4.00 mm (nominal)

Pad Size (b): 0.25 mm (nominal)

Lead Pitch (e): 0.50 mm

Height (A): 0.90 mm (nominal)

Thermal Pad (D2, E2): 2.70 mm x 2.60 mm (nominal)

Pin 1 Identifier: A laser-marked feature on the top for orientation.

Sum up

The MPU-6050 sensor is a versatile and powerful device that enables a wide range of applications, from simple motion detection to advanced robotics and IoT systems. By utilizing resources such as the MPU-6050 datasheet, MPU-6050 tutorial, and MPU-6050 library, you can quickly get started with various projects using Arduino, ESP32, and Python.

Frequently Asked Questions

Can I use the MPU-6050 with Raspberry Pi?

Yes, connect it via I2C and use Python to read sensor data for motion tracking or real-time applications.

How accurate is the MPU-6050 sensor?

It provides reasonable accuracy for most applications, but not as precise as higher-end sensors. Calibration and filtering improve accuracy.

What is the average price of the MPU-6050 sensor?

The MPU-6050 typically costs between $2 to $10 USD, depending on the retailer and whether it's sold as a standalone sensor or as part of a breakout board.

What voltage does the MPU-6050 require?

The MPU-6050 operates at 3.3V or 5V, depending on your sensor version. Check your module's specifications for the correct voltage.

What is the MPU-6050 I2C address?

The default I2C address of the MPU-6050 is 0x68. If the AD0 pin is connected to VCC, the address changes to 0x69.
