NXP USA Inc. MPR121QR2

Part No.:: MPR121QR2

Manufacturer:: NXP USA Inc.

Package:: 20-UFQFN

Datasheet:: MPR121QR2.pdf

Description:: IC CTLR TOUCH SENSOR 20-QFN

In Stock:: 3810

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MPR121QR2 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
Buttons, Slider, Wheel
ProximityDetection:
Yes
NumberofInputs:
Up to 12
LEDDriverChannels:
Up to 8
Interface:
I²C
Resolution:
-
Voltage-Supply:
2V ~ 3.6V
Current-Supply:
393µA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MPR121QR2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MPR121QR2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MPR121QR2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MPR121QR2 information

Views：

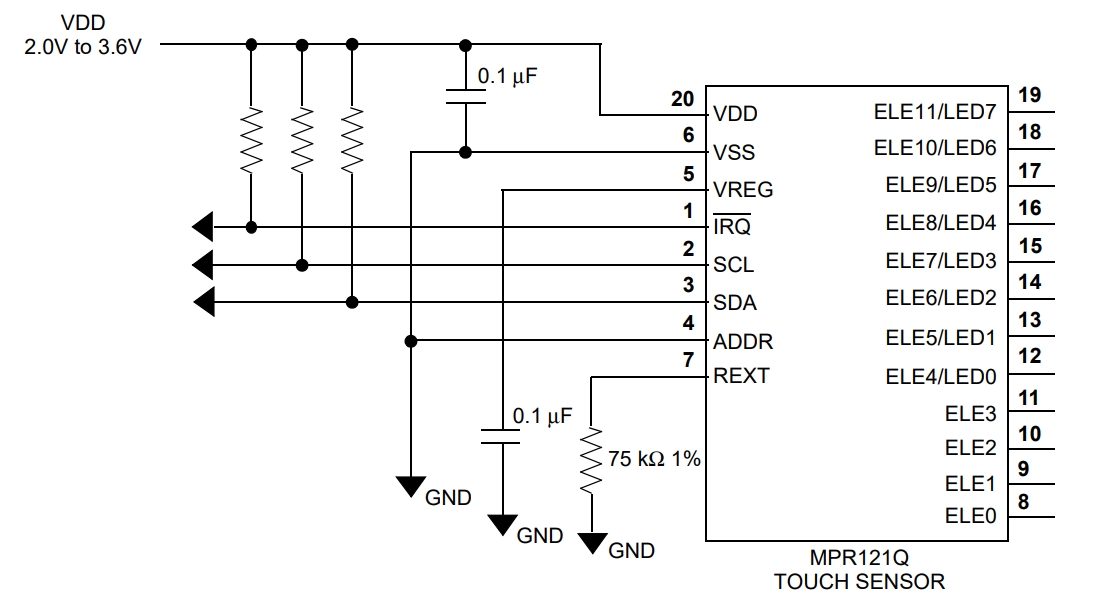

MPR121QR2 Typical application Circuitry

MPR121QR2

The MPR121QR2 is a capacitive touch sensor controller designed to offer an optimal solution for adding touch interfaces, thus elevating user interactivity.

Features: The MPR121QR2 is renowned for its ability to manage up to 12 individual touchpads. It integrates a highly responsive touch detection algorithm, yielding precise and reliable performance.

Applications: The chip's notable features make it ideal for integration in interactive control panels, such as in home appliances, automotive controls, and interactive kiosks.

Key Specifications: MPR121QR2's low power consumption, configurable touch thresholds, and adaptability in varied environmental conditions contribute to its widespread acclaim.

Application Details: Interactive Kiosk Control Panel

1. Touch Pad Connectivity:

- Touch Detection: MPR121QR2's electrodes, denoted as ELE0-ELE11, are individually connected to the respective touchpads on the interactive kiosk's control panel.

- Routing Precautions: Routes connecting these electrodes should avoid crossing high-frequency signals to minimize noise interferences.

2. Power Connections:

- VDD Connection: The VDD pin ensures MPR121QR2 is powered, connecting it to a 3.3V power source.

- Power Smoothing: Place a decoupling capacitor close to the VDD pin to ensure power stability and noise reduction.

3. Data Communication:

- I2C Protocol: Utilize SDA and SCL pins for communication between MPR121QR2 and the microcontroller, ensuring command and data exchange.

- Pull-Up Resistors: Integrate pull-up resistors in the I2C lines for signal integrity.

4. Interrupts and Indications:

- IRQ Functionality: The IRQ pin gets connected to the microcontroller's interrupt input, allowing immediate response to touch detections.

- Indicator LEDs: (Optional) Connect indicator LEDs to electrode outputs to provide visual feedback when touch is detected.

Design Considerations

1. Sensitivity Tuning:

- Threshold Settings: Configure MPR121QR2 touch and release thresholds appropriately to optimize sensitivity and responsiveness.

- Environmental Adaptation: Adjust settings to adapt to various environmental conditions, ensuring consistent performance.

2. Noise Management:

- Filtering: Implement filtering techniques to minimize electrical noise, ensuring accurate touch detection.

- Grounding: Ensure that the grounding is effective to reduce noise and enhance performance.

3. Mechanical Design:

- TouchPad Design: The design, size, and spacing of touchpads should be optimized for user ergonomics and responsiveness.

- Material Selection: Choose materials that allow efficient touch detection while offering durability.

Incorporating the above steps ensures optimal integration of MPR121QR2 into an interactive kiosk. The approach guarantees a responsive, reliable, and user-friendly touch interface, fostering an intuitive user interaction experience.
