Name: MPM3822CGRH-Z
Brand: Monolithic Power Systems Inc.
SKU: MPM3822CGRH-Z
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Monolithic Power Systems Inc. MPM3822CGRH-Z

Part No.:: MPM3822CGRH-Z

Manufacturer:: Monolithic Power Systems Inc.

Package:: 18-PowerLFQFN Module

Datasheet:: MPM3822CGRH-Z.pdf

Description:: DC DC CONVERTER 0.6-6V

In Stock:: 3237

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MPM3822CGRH-Z Specifications

Package/Case:
18-PowerLFQFN Module
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
2.75V
Voltage-Input(Max):
6V
Voltage-Output1:
0.6 ~ 6V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
2A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
OCP, SCP, UVLO
OperatingTemperature:
-40°C ~ 150°C
Efficiency:
82%
MountingType:
Surface Mount
Size/Dimension:
0.14 L x 0.10 W x 0.06 H (3.5mm x 2.5mm x 1.6mm)
ControlFeatures:
ApprovalAgency:

MPM3822CGRH-Z this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MPM3822CGRH-Z price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MPM3822CGRH-Z to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MPM3822CGRH-Z information

Views：

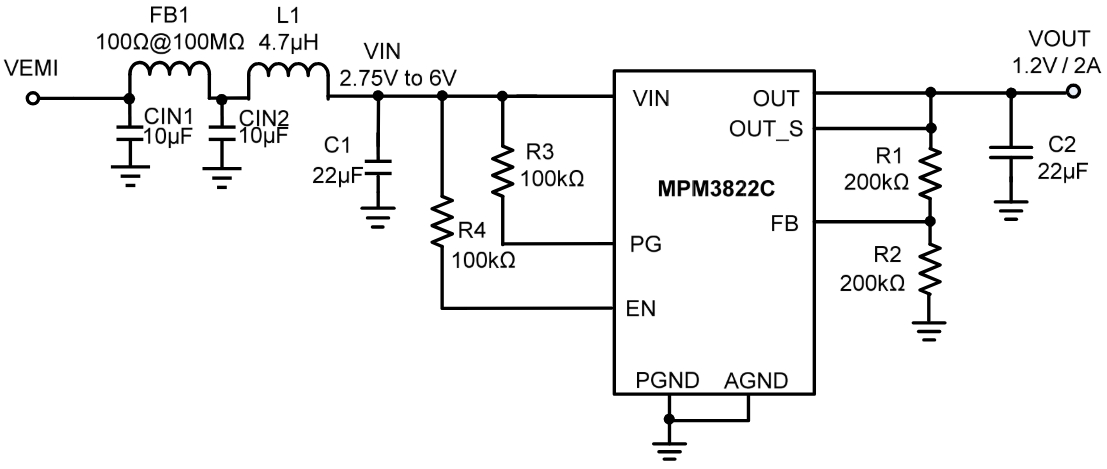

MPM3822CGRH-Z Typical application Circuitry

MPM3822CGRH-Z

The MPM3822CGRH-Z is a specific model of a power management integrated circuit (PMIC) from Monolithic Power Systems (MPS). Unlike the NXP Semiconductors PowerQUICC processors discussed earlier, this device focuses on power delivery and management. The MPM3822CGRH-Z is a synchronous step-down module with integrated power MOSFETs, which makes it highly efficient for converting a higher voltage to a lower voltage directly on the board, supporting applications requiring tight space and high efficiency.

1. Power Supply Requirements: The MPM3822CGRH-Z operates with an input voltage typically ranging from 2.75V to 6V, making it suitable for battery-operated devices or systems using a 5V bus. The input must be connected to a stable and clean voltage source to prevent any operational issues due to power instability.

2. Output Voltage Setup: The output voltage of the MPM3822CGRH-Z can be adjusted via an external resistor divider connected to the FB (feedback) pin. This setup allows you to customize the output voltage to meet the specific needs of the application, whether it's powering a microcontroller, sensor, or other low-power devices.

3. Layout Considerations: When integrating the MPM3822CGRH-Z into a circuit board, careful consideration must be given to the layout to minimize noise and ensure efficient thermal management. Placing input and output capacitors close to the module's pins is recommended to reduce voltage ripple and improve transient response.

4. Thermal Management: Despite its efficiency, the MPM3822CGRH-Z can generate heat during operation, especially at higher output currents or voltages. Ensuring good thermal conductivity through the PCB and considering additional heat sinking measures in space-constrained designs is crucial.

5. Enable and Power Sequencing: The MPM3822CGRH-Z includes an enable (EN) pin that allows the power module to be turned on or off electronically. This feature is useful for power sequencing multiple rails in a system to ensure that sensitive components are powered in the correct order.

6. Protection Features: The device comes with built-in features for protection against over-current, over-voltage, and thermal overload. These features help to safeguard both the power module and downstream components from potential damage due to abnormal operating conditions.

Incorporating the MPM3822CGRH-Z into an electronic system involves careful consideration of these factors to optimize performance and reliability. This PMIC is suitable for a variety of applications where space is limited but efficient power conversion is required, such as portable devices, IoT devices, and small embedded systems.
