Monolithic Power Systems Inc. MPM3630GQV-P

Part No.:: MPM3630GQV-P

Manufacturer:: Monolithic Power Systems Inc.

Package:: 20-PowerLFQFN Module

Datasheet:: MPM3630GQV-P.pdf

Description:: DC DC CONVERTER 0.6-18V

In Stock:: 3456

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MPM3630GQV-P Specifications

Package/Case:
20-PowerLFQFN Module
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
18V
Voltage-Output1:
0.6 ~ 18V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
3A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
OCP, OTP, UVLO
OperatingTemperature:
-40°C ~ 125°C (TJ)
Efficiency:
-
MountingType:
Surface Mount
Size/Dimension:
0.20 L x 0.12 W x 0.06 H (5.0mm x 3.0mm x 1.6mm)
ControlFeatures:
ApprovalAgency:

MPM3630GQV-P this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MPM3630GQV-P price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MPM3630GQV-P to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MPM3630GQV-P information

Views：

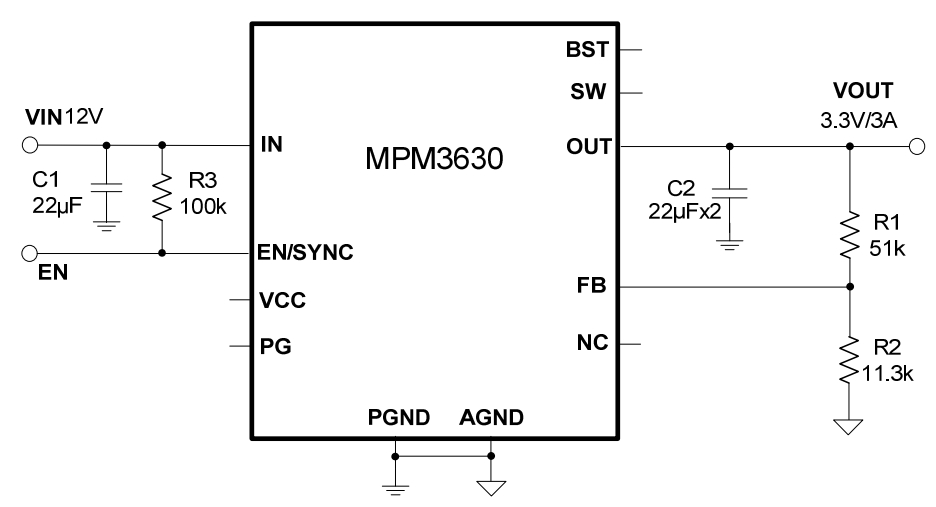

MPM3630GQV-P Typical application Circuitry

MPM3630GQV-P

The MPM3630GQV-P is a high-efficiency, synchronous, step-down converter chip. It's commonly used in scenarios where there is a need to convert a higher voltage to a lower voltage efficiently, such as in portable electronics, networking devices, and embedded systems. The MPM3630GQV-P is a highly adaptable option for a range of power conversion applications due to its integrated inductor, wide input voltage range (2.7V to 17V), and adjustable output voltage.

Let's consider the implementation of the MPM3630GQV-P in a portable Bluetooth speaker system:

1. Input Voltage Connection: The MPM3630GQV-P needs a stable input voltage. Connect the Vin pin (pin 6) to a power source like a rechargeable battery, ensuring it falls within the chip's 2.7V to 17V operating range.

2. Grounding for Operational Stability: The Ground (GND) pins (pins 3, 4, and 5) of the MPM3630GQV-P should be connected to the system's ground. This not only stabilizes the converter but also aids in heat dissipation.

3. Setting Output Voltage: The MPM3630GQV-P allows for adjustable output voltage using external resistors connected to the FB (Feedback) pin (pin 1). Select the resistor values based on the desired output voltage, following the guidelines in the chip's datasheet.

4. Output Voltage Delivery: Connect the Vout pins (pins 7 and 8) to the power inputs of the Bluetooth speaker's circuitry that require the regulated lower voltage. The integrated inductor in the MPM3630GQV-P simplifies the circuit design and minimizes external component requirements.

Design considerations for circuits using the MPM3630GQV-P include:

- Input Voltage Regulation: Ensuring that the input voltage is within the specified range for the MPM3630GQV-P is crucial for proper operation.

- Effective Thermal Management: The MPM3630GQV-P can generate heat, especially when operating at high loads. Adequate thermal management is necessary to maintain efficiency and longevity.

- PCB Layout Precision: A well-thought-out PCB layout is essential, particularly around sensitive areas like the feedback loop and switching nodes, to ensure stability and reduce noise.

- Leveraging Protection Features: The MPM3630GQV-P includes features like over-current protection and thermal shutdown. Utilizing these can enhance the safety and reliability of the application.

In summary, the MPM3630GQV-P is an efficient and compact solution for stepping down voltages in applications such as portable Bluetooth speakers, offering the benefits of integrated components and flexible design.
