STMicroelectronics MP34DT01TR-M

Part No.:: MP34DT01TR-M

Manufacturer:: STMicroelectronics

Package:

Datasheet:: MP34DT01TR-M.pdf

Description:: MICROPHONE MEMS DIGITAL PDM OMNI

In Stock:: 3156

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MP34DT01TR-M Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
Type:
MEMS (Silicon)
OutputType:
Digital, PDM
Direction:
Omnidirectional
FrequencyRange:
20 Hz ~ 10 kHz
Sensitivity:
-26dB ±3dB @ 94dB SPL
S/NRatio:
61dB
Impedance:
-
Voltage-Rated:
1.8 V
VoltageRange:
1.64 V ~ 3.6 V
Current-Supply:
600 µA
PortLocation:
Top
Ratings:
-
Termination:
Solder Pads
Size/Dimension:
0.157 L x 0.118 W (4.00mm x 3.00mm)
Height(Max):
0.046 (1.16mm)

MP34DT01TR-M this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MP34DT01TR-M price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MP34DT01TR-M to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MP34DT01TR-M information

Views：

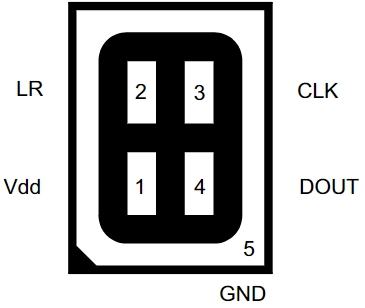

MP34DT01TR-M Typical application Circuitry

MP34DT01TR-M

MP34DT01TR-M is a digital MEMS (MicroElectroMechanical Systems) microphone designed by STMicroelectronics. It incorporates a capacitive sensing element and an IC interface to convert sound into digital signals, making it highly suitable for applications that require compact, high-quality audio input.

Application Scenarios

MP34DT01TR-M is widely used in:

- Smartphones and tablets for voice input and voice commands

- Smart speakers and home assistant devices for voice recognition

- Wearable devices for voice notes and commands

- Conference systems and digital audio recording devices

Parameter Features

Notable features of MP34DT01TR-M include:

- High signal-to-noise ratio (SNR), ensuring clear audio capture

- Omnidirectional sensitivity, capturing sound from all directions

- PDM (Pulse Density Modulation) digital output, facilitating direct interface with digital systems

- Low power usage, perfect for gadgets that run on batteries

Design Factors in the Implementation of Circuits

When integrating MP34DT01TR-M into a circuit, it's essential to consider:

- Power Supply Quality: Providing a clean and stable power supply to minimize noise in audio recordings.

- PCB Layout: Ensuring minimal path resistance and inductance on the digital lines to prevent signal degradation.

- Environmental Protection: Implementing measures to protect the microphone from moisture and dust while ensuring sound can reach the microphone diaphragm.

Example of a Particular Circuit Connection: Smart Speaker

1.Power Supply Connection: Attach the MP34DT01TR-M's VDD pin to a 3.3V power supply that is reliable. In order to remove power supply noise, position a decoupling capacitor in close proximity to the VDD and GND pins.

2.Digital Output Interface: The PDM output from MP34DT01TR-M is connected to the digital microphone interface of the audio processor or microcontroller. It's crucial to ensure the integrity of this digital signal by minimizing the length of the trace and avoiding cross-talk with other high-speed signals.

3.Clock Input: A clock signal must be provided to the CLK pin of MP34DT01TR-M. This clock typically comes from the audio processor and should be stable and clean to ensure accurate digital audio conversion.

4.Mechanical Mounting: To preserve audio quality, MP34DT01TR-M should be mechanically isolated from sources of vibration and mounted in a way that the sound port is unobstructed by the device chassis or other components. 5.Environmental Considerations: If the device is expected to operate in environments with dust or moisture, protective measures such as acoustic mesh or waterproof membranes that do not hinder sound transmission should be used over the microphone port.

Designing a circuit with MP34DT01TR-M for a smart speaker involves careful attention to power and signal integrity, mechanical mounting for optimal sound capture, and environmental protection to maintain performance and longevity.
