TDK InvenSense ICS-40720

Part No.:: ICS-40720

Manufacturer:: TDK InvenSense

Package:

Datasheet:: ICS-40720.pdf

Description:: MICROPHONE MEMS ANALOG OMNI

In Stock:: 3300

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ICS-40720 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ICS-40720 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ICS-40720 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

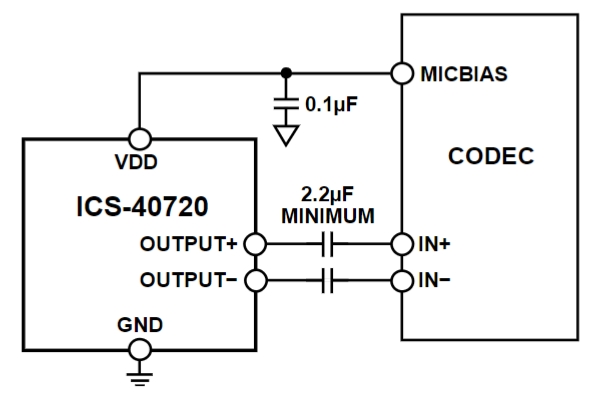

ICS-40720 Typical application Circuitry

ICS-40720

ICS-40720 is a high-performance, low-noise, omnidirectional MEMS microphone designed by TDK InvenSense. It is particularly suited for applications requiring high-quality audio capture, such as smartphones, tablets, digital assistants, and other smart devices. The ICS-40720 is known for its excellent signal-to-noise ratio (SNR), wide dynamic range, and flat wideband frequency response, making it ideal for high-fidelity audio recording.

Application Scenario: Digital Assistants

In digital assistants, such as smart speakers and voice-activated controllers, the ICS-40720 plays a crucial role in capturing voice commands with clarity and precision, even in noisy environments.

Features of Parameters

- High SNR: With a high signal-to-noise ratio provided by the ICS-40720, crisp audio capture with low background noise is guaranteed.

- Broad Dynamic variety: Able to handle a broad variety of sound levels, distortion-free, from soft murmurs to thunderous bangs.

- Flat Frequency Response: Provides uniform sensitivity across a broad frequency spectrum, capturing sound with natural fidelity.

Digital Assistant Microphone Array Circuit Design

Designing a microphone array for a digital assistant using the ICS-40720 involves several critical considerations:

1. Power source Connection: To ensure reliable operation, connect the ICS-40720's VDD pin to a clean, regulated power source, usually 3.3V.

2. Signal Output Connection: The ICS-40720 outputs an analog signal, which should be connected to an analog-to-digital converter (ADC) input of a processing unit or microcontroller. To be processed, the analog signal from the microphone needs to be transformed into a digital format using this link.

3. Grounding: Connect the ground pin (GND) of the ICS-40720 to the system's ground. Proper grounding is required to reduce noise and preserve signal integrity.

4. Mounting Orientation: Mount the ICS-40720 in the optimal orientation as specified in its datasheet, typically with the sound inlet facing towards the sound source, to maximize audio capture quality.

5. Acoustic Design: Incorporate an acoustic port or pathway in the device design that leads to the ICS-40720's sound inlet, ensuring clear sound transmission from the external environment to the microphone.

Design Considerations

When designing the circuit, several factors must be addressed:

- Noise Suppression: Implement noise suppression techniques, such as using low-noise power supplies and placing decoupling capacitors near the ICS-40720 power pins, to minimize system noise that could affect audio quality.

- Environmental Conditions: Consider the effects of environmental factors like temperature and humidity on the ICS-40720, ensuring stable operation under varying conditions.

- Signal Processing: Ensure that the processing unit or microcontroller has sufficient capabilities to handle signal processing tasks such as noise cancellation, echo reduction, and voice recognition algorithms to extract clear voice commands from the captured audio.

By carefully addressing these design aspects, the ICS-40720 can be effectively utilized in digital assistants, providing high-fidelity audio capture that enhances the user experience with voice-controlled devices.

ICS-40720 information

ICS-40720 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
MEMS (Silicon)
OutputType:
Analog
Direction:
Omnidirectional
FrequencyRange:
75 Hz ~ 20 kHz
Sensitivity:
-38dB ±2dB @ 94dB SPL
S/NRatio:
70dB
Impedance:
-
Voltage-Rated:
-
VoltageRange:
1.5 V ~ 3.63 V
Current-Supply:
375 µA
PortLocation:
Bottom
Ratings:
-
Termination:
Solder Pads
Size/Dimension:
0.157 L x 0.118 W (4.00mm x 3.00mm)
Height(Max):
0.051 (1.30mm)
