Name: MP2122GJ-Z
Brand: Monolithic Power Systems Inc.
SKU: MP2122GJ-Z
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Monolithic Power Systems Inc. MP2122GJ-Z

Part No.:: MP2122GJ-Z

Manufacturer:: Monolithic Power Systems Inc.

Package:: SOT-23-8 Thin, TSOT-23-8

Datasheet:: MP2122GJ-Z.pdf

Description:: IC REG BUCK ADJ 2A DL TSOT23-8

In Stock:: 3432

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MP2122GJ-Z Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Not For New Designs
Function:
Step-Down
OutputConfiguration:
Positive
Topology:
Buck
OutputType:
Adjustable
NumberofOutputs:
2
Voltage-Input(Min):
2.7V
Voltage-Input(Max):
6V
Voltage-Output(Min/Fixed):
0.608V
Voltage-Output(Max):
5.5V
Current-Output:
2A
Frequency-Switching:
1MHz
SynchronousRectifier:
Yes
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

MP2122GJ-Z this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MP2122GJ-Z price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MP2122GJ-Z to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MP2122GJ-Z information

Views：

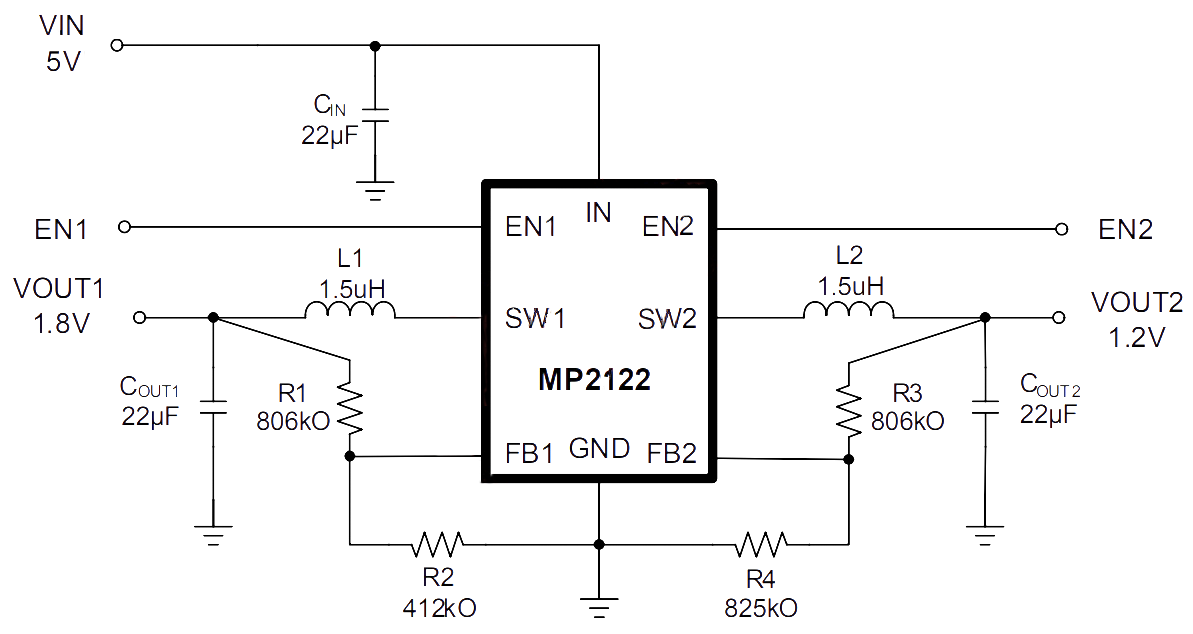

MP2122GJ-Z Typical application Circuitry

MP2122GJ-Z

MP2122GJ-Z is a high-frequency synchronous rectified step-down converter, designed to deliver constant, stable power supply while ensuring high efficiency, particularly in compact and power-sensitive applications.

Functional Insights: MP2122GJ-Z is engineered for power regulation, boasting of a remarkable efficiency that reduces the need for heat sinks and thus saving on both space and cost.

Application Versatility: It finds its applications sprawling across various fields, notably in powering field-programmable gate arrays, microprocessors, and other digital or analog loads.

Technical Characteristics: Key features include an adjustable output from 0.6V, a wide input range, integrated power MOSFETs, and a high switching frequency that facilitates the use of small external components.

Application Illustration: Powering Field-Programmable Gate Arrays (FPGAs)

1. Input Voltage Connection

- Power Source: Attach the power source to the VIN pin (Pin 6, 7, 8) of MP2122GJ-Z ensuring the source voltage is within the specified 2.7V to 6V range to guarantee optimal functionality.

- Decoupling Capacitors: Include decoupling capacitors close to the VIN pins to stabilize the input voltage, reducing voltage noise and ripples.

2. Ground Configuration

- System Integration: Connect the PGND pins (Pin 9, 10) firmly to the system ground. A well-established ground connection ensures stable operations and reduced noise.

- PCB Layout: A multi-layer PCB with a dedicated ground layer is advisable to achieve low ground impedance and enhanced performance.

3. Output Voltage Setting

- Feedback Mechanism: The FB pin (Pin 3) should be connected to the output voltage via a resistor divider network. Precision in the selection of these resistors is vital to achieving the desired output voltage setting.

- Output Capacitors: Attach output capacitors near the FB pin to stabilize the output voltage and enhance transient response.

4. Enable and UVLO Setting

- Enable Pin: Connect the EN pin (Pin 5) to the logic control circuitry or the VIN if not used. Ensure that it's set correctly to enable or disable the MP2122GJ-Z as required.

- UVLO Configuration: The UVLO (under-voltage lockout) can be programmed via the EN pin to ensure the system doesn't operate under insufficient input voltage, ensuring system safety.

Key Design Considerations

1. Component Selection

- Inductor Value: While selecting the inductor, ensure the inductance value and current rating are optimal to ensure MP2122GJ-Z operates efficiently and the inductor does not saturate.

- Capacitor Rating: Capacitors should have appropriate voltage and temperature ratings to ensure longevity and reliable performance.

2. Thermal Management

- Heat Dissipation: Implement strategies for efficient heat dissipation to keep MP2122GJ-Z within operational temperature limits.

- Component Placement: Arrange components in a manner that facilitates airflow and heat dissipation, especially for applications with higher current requirements.

3. Testing and Validation

- Prototype Testing: Develop a prototype and conduct extensive testing under various conditions to validate the design and identify areas for improvement.

- Simulation Tools: Utilize simulation tools to model and analyze the behavior of the circuit under different conditions to optimize the design.

With a well-thought-out design and implementation, the MP2122GJ-Z promises exceptional performance in FPGA power supply applications, marked by its efficiency and reliability.
