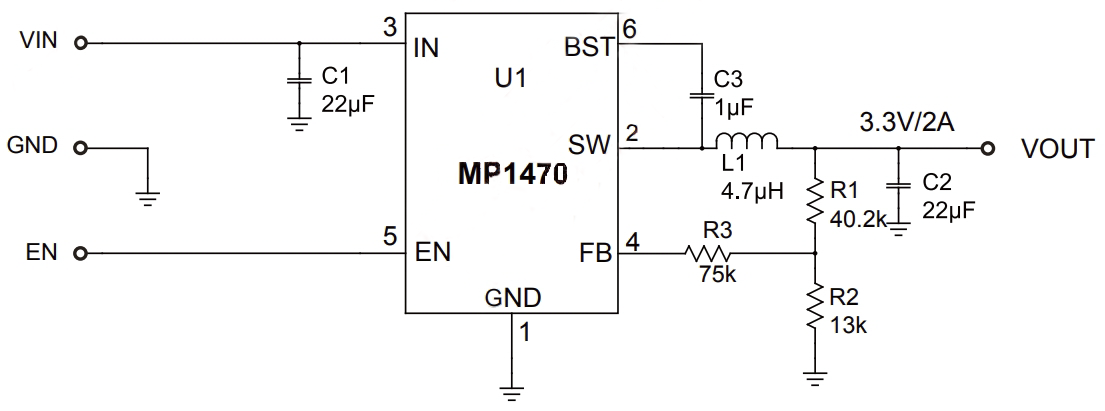

MP1470GJ-Z Typical application Circuitry

MP1470GJ-Z

The MP1470GJ-Z is a high-frequency, step-down converter ideal for a wide variety of applications owing to its compact size and efficiency.

Core Capabilities: MP1470GJ-Z excels in converting higher voltage levels to lower, characterized by its efficiency, low resistance, and compact design, making it a go-to for portable and battery-powered applications.

Niche Utilization: It finds its stride in applications like LED lighting systems, where energy efficiency, compactness, and reliable performance are pivotal.

Specific Attributes: With a high efficiency of up to 93%, a wide operating input voltage, and an ability to deliver up to 2A of continuous load current, the MP1470GJ-Z is a stalwart in power management tasks.

LED Lighting System Integration:

1. Input Power Connection:

- Power Source Integration: Pin 4 should be connected to the input power source. Given MP1470GJ-Z's wide input voltage range, it can be adeptly used in systems with varying power input specifications.

- Filter Implementation: A capacitor can be connected parallel to the input to filter out the noise and ensure a steady input power supply.

2. Output Delivery:

- LED Load: Pin 5, the output pin, should be connected directly to the LED load. It's imperative to ensure the output voltage matches the LED requirements.

- Output Capacitor: Connect a capacitor to this pin to stabilize the output voltage and reduce voltage ripples ensuring smooth lighting without flickers.

3. Grounding Practice:

- System Ground: Pin 2 must be connected to the system ground to establish a common reference point for all circuit components, facilitating a consistent flow and return of current:

- Ground Plane Utilization.

For optimal performance, employing a ground plane is advised to minimize noise and enhance thermal performance.

4. Feedback Loop:

- Voltage Regulation: Pin 6 is the feedback pin. It should be connected to the output through a resistive voltage divider network to set the output voltage and ensure it remains constant under different load conditions.

- Stability Focus: The stability of the feedback loop is crucial to adapt to varying load conditions and ensure consistent LED brightness.

Systematic Considerations:

1. Thermal Management:

- Heat Dissipation: Given its high efficiency, MP1470GJ-Z generates minimal heat. However, adequate measures like heatinks or thermal vias near Pin 2 should still be considered to maintain optimal operating temperatures.

- Ambient Temperature Monitoring: The ambient temperature should be monitored to ensure it aligns with the MP1470GJ-Z's specified operating temperature range.

2. Component Selection:

- Quality and Ratings: Component quality and ratings should be meticulously evaluated to ensure they complement the MP1470GJ-Z's performance, ensuring the LED lighting system's overall reliability and longevity.

- Compatibility Check: Every component, especially resistors and capacitors, should be compatible with the chosen LED's specifications and power requirements.

3. Safety Protocols:

- Circuit Protection: Incorporating protection features like overcurrent and overvoltage protections to safeguard both the MP1470GJ-Z and the LED lights.

- Compliance Adherence: Ensure that the entire system complies with the requisite safety and operational standards pertinent to LED lighting systems.

With precision in implementation and adherence to the above steps, integrating MP1470GJ-Z into an LED lighting system ensures efficient, reliable, and optimal performance characterized by energy efficiency and consistent lighting output.

MP1470GJ-Z information

MP1470GJ-Z Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Not For New Designs
Function:
Step-Down
OutputConfiguration:
Positive
Topology:
Buck
OutputType:
Adjustable
NumberofOutputs:
1
Voltage-Input(Min):
4.7V
Voltage-Input(Max):
16V
Voltage-Output(Min/Fixed):
0.8V
Voltage-Output(Max):
14.4V
Current-Output:
2A
Frequency-Switching:
490kHz
SynchronousRectifier:
Yes
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount
