Fairchild Semiconductor MMBT3906SL

Part No.:: MMBT3906SL

Manufacturer:: Fairchild Semiconductor

Package:: SOT-923F

Datasheet:: MMBT3906SL.pdf

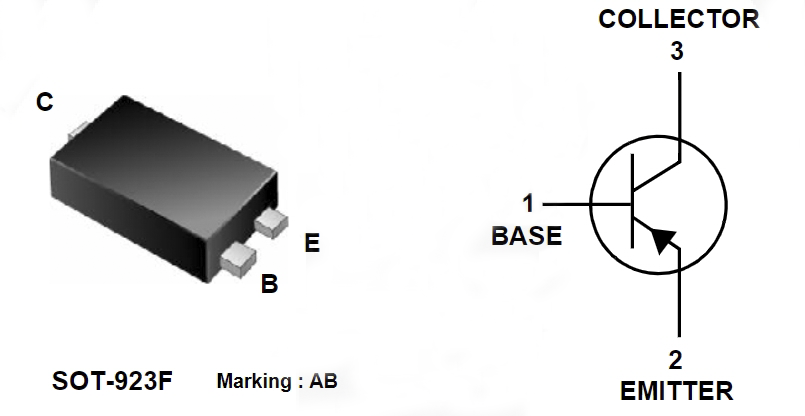

Description:: TRANS PNP 40V 0.2A SOT923F

In Stock:: 2511

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MMBT3906SL Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Active
TransistorType:
PNP
Current-Collector(Ic)(Max):
200 mA
Voltage-CollectorEmitterBreakdown(Max):
40 V
VceSaturation(Max)@IbIc:
400mV @ 5mA, 50mA
Current-CollectorCutoff(Max):
50nA
DCCurrentGain(hFE)(Min)@IcVce:
100 @ 10mA, 1V
Power-Max:
227 mW
Frequency-Transition:
250MHz
OperatingTemperature:
150°C (TJ)
MountingType:
Surface Mount
