Name: MC10XS3412CHFKR2
Brand: NXP USA Inc.
SKU: MC10XS3412CHFKR2
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. MC10XS3412CHFKR2

Part No.:: MC10XS3412CHFKR2

Manufacturer:: NXP USA Inc.

Package:: 24-PQFN (12x12)

Datasheet:: MC10XS3412CHFKR2.pdf

Description:: IC PWR SWITCH N-CHAN 1:1 24PQFN

In Stock:: 2430

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MC10XS3412CHFKR2 Specifications

Package/Case:
24-PQFN (12x12)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
SwitchType:
General Purpose
NumberofOutputs:
4
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
SPI
Voltage-Load:
6V ~ 20V
Voltage-Supply(Vcc/Vdd):
3V ~ 5.5V
Current-Output(Max):
-
RdsOn(Typ):
10mOhm, 12mOhm
InputType:
-
Features:
Internal PWM, Slew Rate Controlled, Watchdog Timer
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

MC10XS3412CHFKR2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MC10XS3412CHFKR2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MC10XS3412CHFKR2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MC10XS3412CHFKR2 information

Views：

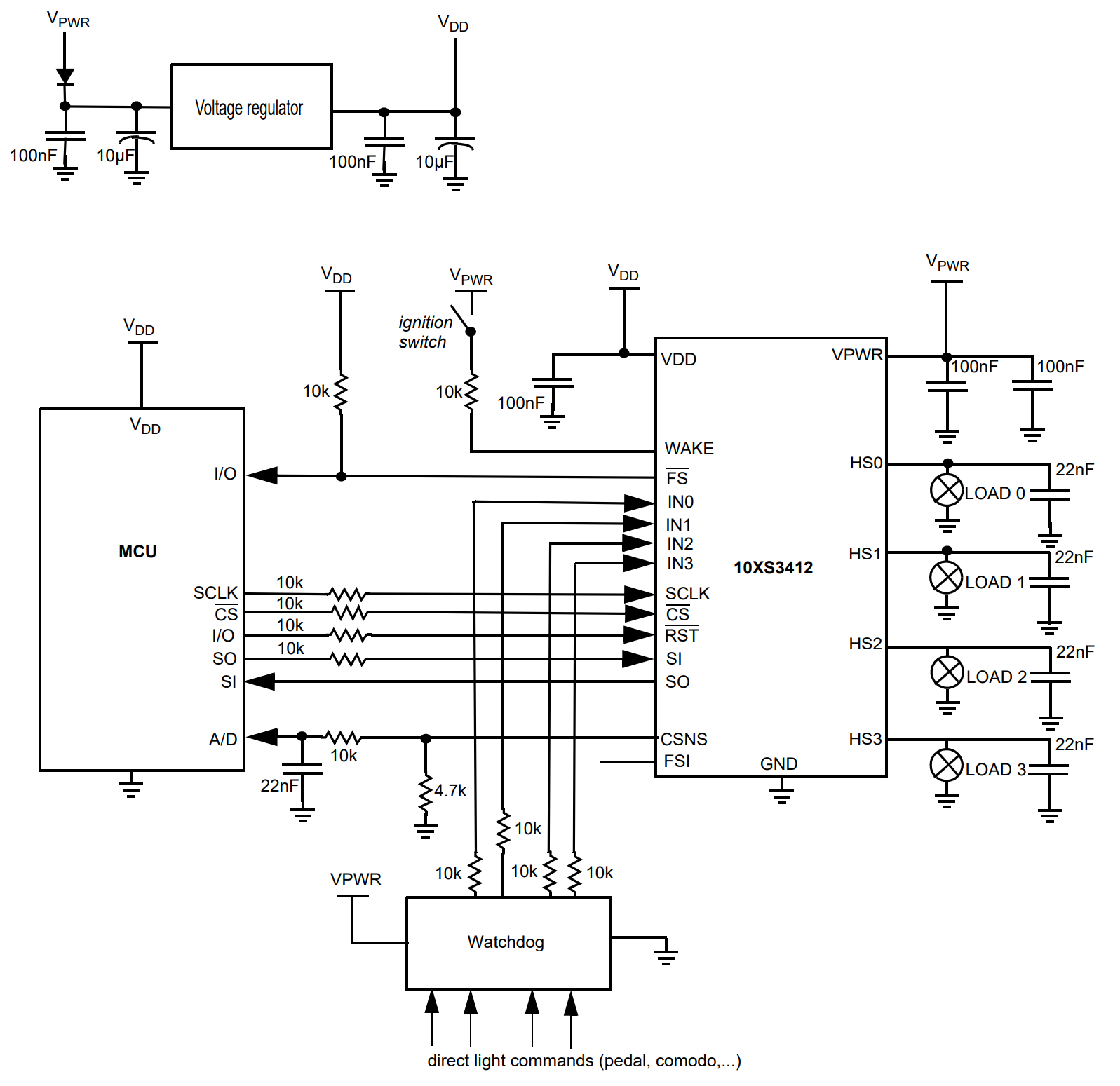

MC10XS3412CHFKR2 Typical application Circuitry

MC10XS3412CHFKR2

The MC10XS3412CHFKR2 is a highly sophisticated device from NXP Semiconductors, typically utilized for the safe management and controlling of low voltage automotive lighting applications. For effective operation, this system basis chip needs to be wired accurately. Let's examine the essential pin connections for this device.

1. Power Supply Pins (VDD, VSS): Pin 24 should be connected to the system's positive voltage supply rail, while Pin 25 should be connected to ground. To reduce noise on the power lines, add decoupling capacitors nearby.

2. Battery Voltage Input (BAT): Pin 23 is the battery voltage input. This pin should be connected to the battery's positive terminal.

3. Output Pins (OUT0-OUT3): Pins 15, 16, 17, and 18 are the high side switch outputs of the chip. These are usually connected to your load (such as LEDs for lighting applications).

4. Enable and Diagnostic Pins (EN, IN, IS, FS): The EN and IN pins (Pins 8, 9, 10, 11) are used to enable the corresponding high side switches. The IS pins (Pins 13 and 14) provide current feedback, and the FS pin (Pin 5) provides fault feedback. These should be connected to the corresponding input/output pins of your microcontroller.

5. Reset and Interrupt Pins (RST, INT): The RST pin (Pin 6) is used to reset the device. This can be connected to a reset button or a microcontroller pin. The interrupt output pin (Pin 7) should be linked to an interrupt input on your microcontroller.

6. Mode Pins (M0, M1): The M0 and M1 pins (Pins 1 and 2) are used to set the operational mode of the device. These pins should be configured according to your specific needs.

7. SPI Interface: The SPI interface allows the chip to communicate with a microcontroller. The SPI pins include SCLK (Pin 3), SI (Pin 4), and SO (Pin 12).

Remember to always refer to the MC10XS3412CHFKR2 data sheet for precise information and to configure the device as per your specific requirements.
