Analog Devices Inc. LTM4650IY-1B

Part No.:: LTM4650IY-1B

Manufacturer:: Analog Devices Inc.

Package:: 144-BBGA Module

Datasheet:: LTM4650IY-1B.pdf

Description:: DC DC CNVRTR 0.6-1.8V 0.6-1.8V

In Stock:: 3255

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTM4650IY-1B Specifications

Package/Case:
144-BBGA Module
Packaging:
Tray
Series:
µModule®
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
2
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
15V
Voltage-Output1:
0.6 ~ 1.8V
Voltage-Output2:
0.6 ~ 1.8V
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
25A, 25A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
OCP, SCP, UVLO
OperatingTemperature:
-40°C ~ 125°C
Efficiency:
-
MountingType:
Surface Mount
Size/Dimension:
0.63 L x 0.63 W x 0.20 H (16.0mm x 16.0mm x 5.0mm)
ControlFeatures:
ApprovalAgency:

LTM4650IY-1B this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTM4650IY-1B price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTM4650IY-1B to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTM4650IY-1B information

Views：

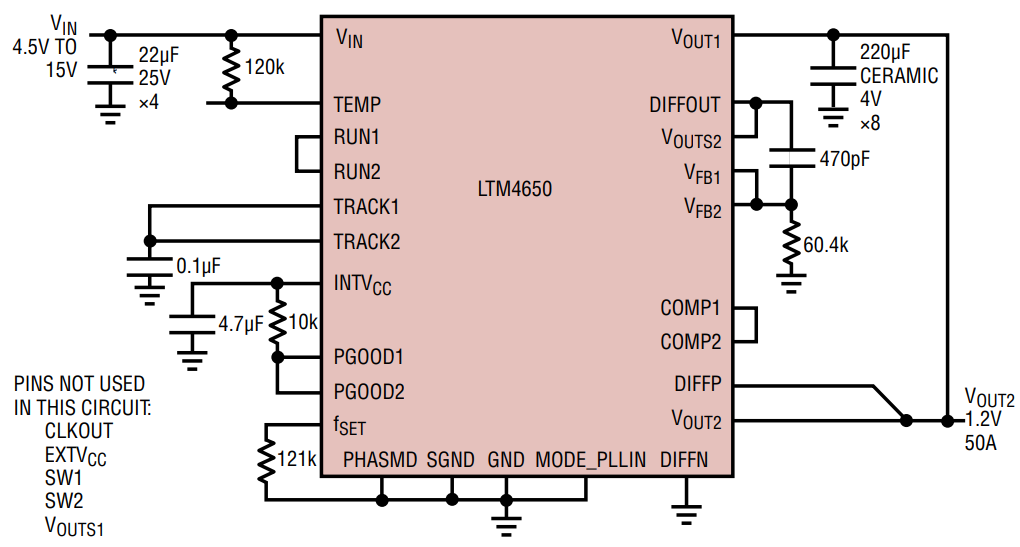

LTM4650IY-1B Typical application Circuitry

LTM4650IY-1B

The LTM4650IY-1B is a member of the LTM4650 series by Linear Technology. This series is notable for its high-efficiency, dual-output step-down µModule (micro-module) regulators. The LTM4650IY-1B is specifically tailored for delivering two independent output voltages from a higher input voltage. It is an ideal solution for applications requiring compact, efficient, and high-power density power supply solutions with dual outputs.

1. Input Voltage (VIN): The primary power supply is linked to the VIN pins. It is crucial to ensure that the supplied voltage is within the operational range of the LTM4650IY-1B.

2. Output Voltages (VOUT0, VOUT1): The VOUT0 and VOUT1 pins provide the module's two regulated output voltages. These outputs are connected to the respective loads the module is designed to power.

3. Ground (GND): The GND pins need to be connected to the system's ground for consistent operation. This grounding is essential for the module's effective functioning.

4. Feedback (FB0, FB1): The FB0 and FB1 pins are utilized for feedback control, regulating each output voltage. They are typically connected to resistor divider networks that sense the output voltages.

5. Run Control (RUN0, RUN1): The RUN0 and RUN1 pins control the operation of each output channel. Applying the appropriate logic levels to these pins enables or disables the corresponding outputs.

6. Soft-Start/Tracking (SS/TRK0, SS/TRK1): The SS/TRK0 and SS/TRK1 pins manage soft-start and tracking for each output, controlling the startup behavior and power sequencing.

7. Compensation (COMP0, COMP1): The COMP0 and COMP1 pins are for loop compensation, which can be optimized using external components to tailor the transient response of each output.

8. Power Good (PGOOD0, PGOOD1): The PGOOD0 and PGOOD1 pins provide status signals indicating whether each output voltage is within the specified range, useful for monitoring and power sequencing.

For a comprehensive understanding of the LTM4650IY-1B, including pin configurations, electrical characteristics, and typical applications, consulting the datasheet is crucial. This document offers essential guidance for correctly integrating the LTM4650IY-1B into dual-output power supply designs.

When designing with the LTM4650IY-1B, considerations such as input and output voltage specifications, load requirements, and the configuration of control features like run control and soft-start are key to ensuring the efficient and reliable operation of this dual-output DC/DC power regulator in various applications.
