Name: LTM4644IY-1#PBF
Brand: Analog Devices Inc.
SKU: LTM4644IY-1#PBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. LTM4644IY-1#PBF

Part No.:: LTM4644IY-1#PBF

Manufacturer:: Analog Devices Inc.

Package:: 77-BBGA Module

Datasheet:: LTM4644IY-1#PBF.pdf

Description:: DC DC CONVERTER 4X0.6-5.5V

In Stock:: 507

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTM4644IY-1#PBF Specifications

Package/Case:
77-BBGA Module
Packaging:
Tray
Series:
µModule®
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
4
Voltage-Input(Min):
4V
Voltage-Input(Max):
14V
Voltage-Output1:
0.6 ~ 5.5V
Voltage-Output2:
0.6 ~ 5.5V
Voltage-Output3:
0.6 ~ 5.5V
Voltage-Output4:
0.6 ~ 5.5V
Current-Output(Max):
4A, 4A, 4A, 4A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
OCP, OTP, OVP
OperatingTemperature:
-40°C ~ 125°C
Efficiency:
-
MountingType:
Surface Mount
Size/Dimension:
0.59 L x 0.35 W x 0.20 H (15.0mm x 9.0mm x 5.0mm)
ControlFeatures:
ApprovalAgency:

LTM4644IY-1#PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTM4644IY-1#PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTM4644IY-1#PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTM4644IY-1#PBF information

Views：

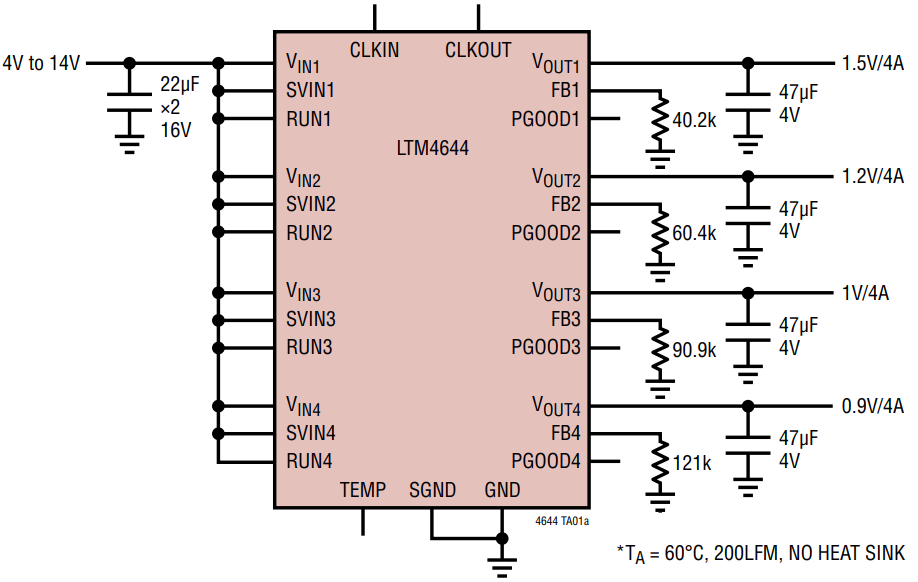

LTM4644IY-1#PBF Typical application Circuitry

LTM4644IY-1 PBF

The LTM4644IY-1#PBF is a hallmark of the LTM4644 series, encapsulating a quad DC/DC µModule (micromodule) regulator system known for its exceptional efficiency and compactness. This series is specifically engineered to accommodate the rigorous demands of high-performance applications such as network equipment, servers, and industrial devices, offering precise voltage regulation and integration of multiple components within a single package for streamlined design and implementation.

1. Power Input (VIN Pins): The LTM4644IY-1#PBF operates efficiently across an input voltage range from 4V to 14V, making it adaptable to a wide array of power environments. This flexibility ensures the LTM4644IY-1#PBF can be seamlessly integrated into systems with varying power requirements, with the provision that the input voltage does not exceed the specified maximum to maintain the regulator's optimal functionality.

2. Voltage Regulation Outputs (VOUT Pins): Each of the LTM4644IY-1#PBF's four channels can be individually configured to deliver a specific output voltage, tailored to the needs of the target application. This customization is facilitated through the connection of external resistors to the VOUT pins, allowing for a tailored voltage output range that aligns with the requirements of the connected load.

3. System Grounding (GND Pins): The GND pins of the LTM4644IY-1#PBF establish a critical reference point for all electrical circuits within the module, ensuring consistent operation. A secure grounding connection is crucial for maintaining signal integrity and the overall stability of the power supply configuration.

4. Channel Enablement (ENx Pins): The LTM4644IY-1#PBF features individual enable pins (ENx) for each of its four channels, offering granular control over the operational state of each regulator. This functionality permits selective engagement or disengagement of the regulators, optimizing power management and efficiency within the electronic system.

5. Feedback Loops and Stability (FBx and COMPx Pins): To ensure the stability and accuracy of output voltages, the LTM4644IY-1#PBF employs feedback (FBx) and compensation (COMPx) pins. These connections are instrumental in the dynamic adjustment and stabilization of the output voltage, ensuring the protection and consistent performance of downstream components.

6. Frequency Synchronization (SYNC Pin): The synchronization capabilities of the LTM4644IY-1#PBF, facilitated through the SYNC pin, allow the module to align its switching frequency with an external clock. This synchronization is key in reducing electromagnetic interference, enhancing the module's suitability for applications where EMI must be minimized.

7. Operational Status Indication (PGOOD Pins): The power good (PGOOD) pins provide immediate feedback on the status of each channel's output voltage. A high signal on these pins signifies that the output voltage is within the desired range, offering a straightforward method for monitoring the operational health of the power supply.

8. Controlled Startup (SS/TRK Pins): The soft-start (SS/TRK) functionality of the LTM4644IY-1#PBF ensures a controlled and gradual increase in output voltage during startup, mitigating the risks associated with inrush currents and ensuring a smooth power-up sequence for the system.
