Analog Devices Inc. LTM4633IY#PBF

Part No.:: LTM4633IY#PBF

Manufacturer:: Analog Devices Inc.

Package:: 144-BBGA Module

Datasheet:: LTM4633IY#PBF.pdf

Description:: DC DC CNVRTR 2X0.8-1.8V 0.8-5.5V

In Stock:: 3518

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTM4633IY#PBF Specifications

Package/Case:
144-BBGA Module
Packaging:
Tray
Series:
µModule®
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
3
Voltage-Input(Min):
4.7V
Voltage-Input(Max):
16V
Voltage-Output1:
0.8 ~ 1.8V
Voltage-Output2:
0.8 ~ 1.8V
Voltage-Output3:
0.8 ~ 5.5V
Voltage-Output4:
-
Current-Output(Max):
10A, 10A, 10A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
OCP, OVP
OperatingTemperature:
-40°C ~ 125°C
Efficiency:
-
MountingType:
Surface Mount
Size/Dimension:
0.59 L x 0.59 W x 0.20 H (15.0mm x 15.0mm x 5.0mm)
ControlFeatures:
ApprovalAgency:

LTM4633IY#PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTM4633IY#PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTM4633IY#PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTM4633IY#PBF information

Views：

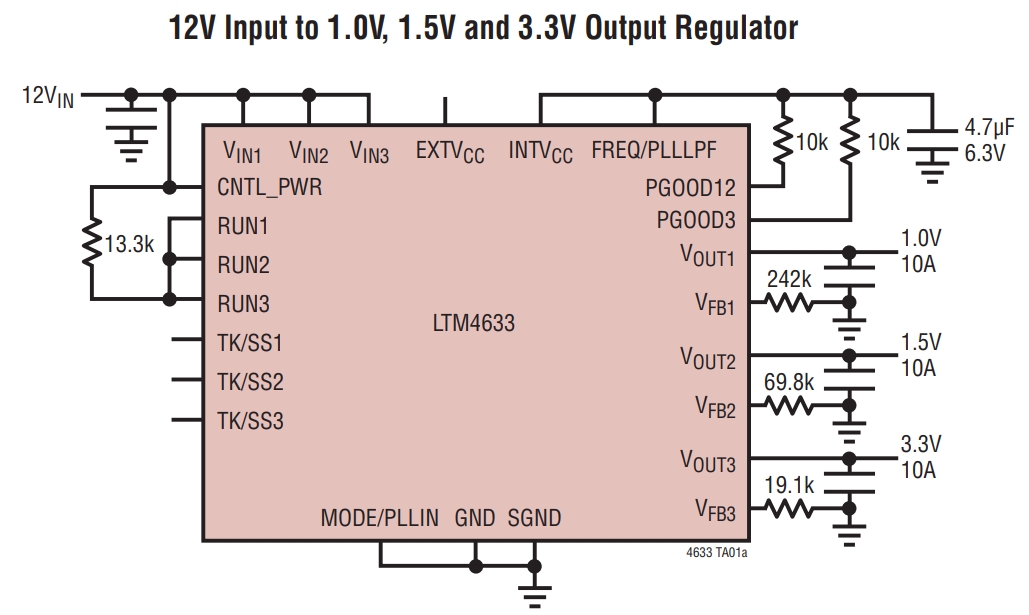

LTM4633IY#PBF Typical application Circuitry

LTM4633IY PBF

The LTM4633IY#PBF is an integrated circuit known for its functionality as a triple-output DC/DC μModule regulator system.

LTM4633IY#PBF's Primary Function

The LTM4633IY#PBF operates as a triple-output, high-efficiency, synchronous step-down DC/DC converter, designed to deliver multiple regulated voltages in a compact form factor, making it ideal for applications requiring high power density and efficiency.

Application in Technology

A common use of the LTM4633IY#PBF is in server power supplies, specifically for providing multiple voltage rails required by server components such as processors, memory, and peripheral devices.

Key Parameters

- Output Channels: Triple-output design for three separate regulated voltages.

- Input Voltage Range: Typically operates between 4.5V to 16V.

- Output Current: Up to 10A for each channel, providing ample power for various loads.

- High Efficiency: Synchronous step-down architecture for improved power efficiency.

Circuit Design: Server Power Supply

1. Design Objective:

To develop a power supply circuit for a server using the LTM4633IY#PBF.

2. Necessary Components:

- LTM4633IY#PBF as the main DC/DC regulator.

- Power source compatible with the regulator's input voltage range.

- External capacitors and resistors for setting output voltages and filtering.

3. Detailed Circuit Connections:

- Power Supply Integration: Connect the power source to LTM4633IY#PBF pin 49 (VIN).

- Output Voltage Setup: Attach external resistors to pins 12, 24, and 36 (VOUT0, VOUT1, and VOUT2) to set the desired output voltages.

- Ground Connection: Link pin 25 (PGND) to the system ground.

- Feedback and Compensation: Utilize pins 13, 25, and 37 (FB0, FB1, and FB2) for feedback and compensation networks to stabilize the outputs.

4. Optimizing the Circuit:

- Select external components like resistors and capacitors based on the desired output voltage and filtering requirements.

- Ensure the power source voltage is within the LTM4633IY#PBF's specified input range.

Design Considerations

- Thermal Management: Crucial for maintaining performance and reliability in high-power applications.

- Voltage Stability: Essential for precise regulation of output voltages.

- Component Selection: Accurate selection of external components for desired voltage settings and filtering.

The LTM4633IY#PBF, with its triple-output configuration and high-efficiency design, is exceptionally suited for applications like server power supplies. This guide provides a comprehensive overview of the LTM4633IY#PBF's features and a detailed approach to designing a power supply circuit, emphasizing its utility in high-performance server environments.
