Analog Devices Inc. LTC2642CMS-16#TRPBF

Part No.:: LTC2642CMS-16#TRPBF

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: LTC2642CMS-16#TRPBF.pdf

Description:: IC DAC 16BIT V-OUT 10MSOP

In Stock:: 2584

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTC2642CMS-16#TRPBF Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
1µs (Typ)
OutputType:
Voltage - Unbuffered
DifferentialOutput:
No
DataInterface:
SPI
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.5
Architecture:
R-2R
OperatingTemperature:
0°C ~ 70°C

LTC2642CMS-16#TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTC2642CMS-16#TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTC2642CMS-16#TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTC2642CMS-16#TRPBF information

Views：

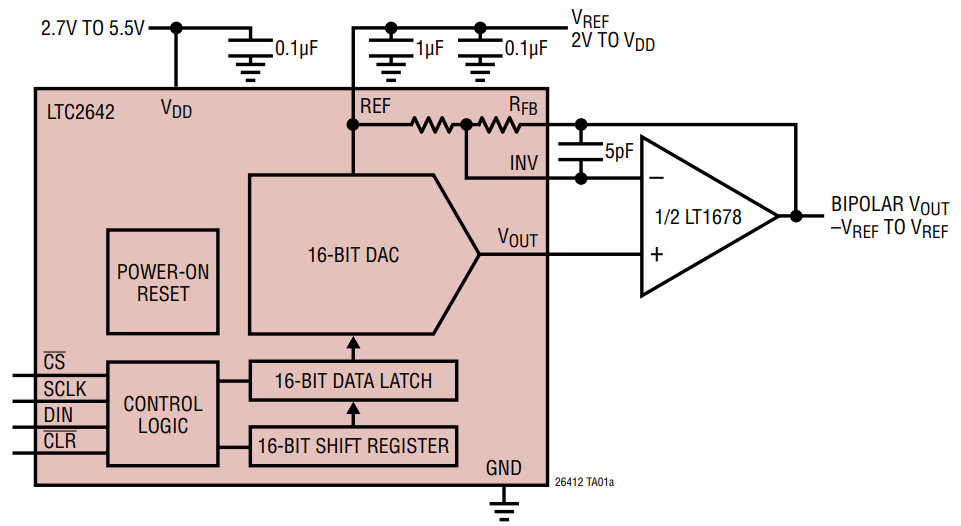

LTC2642CMS-16#TRPBF Typical application Circuitry

LTC2642CMS-16 TRPBF

The LTC2642CMS-16#TRPBF is part of the LTC2642 series, designed by Linear Technology. This series is known for its high-quality Digital-to-Analog Converters (DACs), with the LTC2642CMS-16#TRPBF being a specific variant that offers 16-bit resolution. It's widely used in applications that demand high precision in digital-to-analog conversion.

1. Power Supply Connections: The LTC2642CMS-16#TRPBF requires a power source connected to its VDD pin. This pin should be supplied with a stable voltage that aligns with the LTC2642CMS-16#TRPBF's specifications. It is recommended that the ground (GND) pin be connected to your system's common ground.

2. SPI Interface Configuration: The LTC2642CMS-16#TRPBF utilizes a Serial Peripheral Interface (SPI) for digital input. The Serial Data Input (SDI), Serial Clock (SCK), and Chip Select (CS) pins need to be connected to the corresponding pins on the master device, typically a microcontroller or processor.

3. Analog Output Pin (VOUT): The DAC's converted analog voltage is provided at the VOUT pin of the LTC2642CMS-16#TRPBF. The digital value entered through the SPI interface is directly represented by this output.

4. External Reference Voltage (REFIN/REFOUT): If the LTC2642CMS-16#TRPBF model you are using requires an external reference voltage, connect a stable and accurate reference voltage source to this pin. The DAC's output range is set by the reference voltage.

5. Control Pins for Specific Functions: The LTC2642CMS-16#TRPBF may feature additional control pins like LDAC and CLR, which are used for triggering DAC output updates or resetting the output, respectively. The way these pins are linked depends on how your program works.

For a complete understanding of the LTC2642CMS-16#TRPBF, including its pinout, electrical characteristics, and application information, the datasheet is an essential resource. The datasheet offers detailed insights, ensuring proper integration of this DAC into your electronic designs.

While incorporating the LTC2642CMS-16#TRPBF into a circuit, critical design aspects such as power supply stability, signal integrity, and thermal management need to be considered. This approach guarantees that the LTC2642CMS-16#TRPBF performs optimally within your system.
