Name: LT5560EDD#TRPBF
Brand: Analog Devices Inc.
SKU: LT5560EDD#TRPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. LT5560EDD#TRPBF

Part No.:: LT5560EDD#TRPBF

Manufacturer:: Analog Devices Inc.

Package:: 8-WFDFN Exposed Pad

Datasheet:: LT5560EDD#TRPBF.pdf

Description:: IC MIXER 10KHZ-4GHZ UP/DWN 8DFN

In Stock:: 3052

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LT5560EDD#TRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
LT5560
ProductStatus:
Active
RFType:
CATV, DBS, PHS, UHF, VHF
Frequency:
10kHz ~ 4GHz
NumberofMixers:
1
Gain:
2.4dB
NoiseFigure:
9.3dB
SecondaryAttributes:
Up/Down Converter
Current-Supply:
12mA
Voltage-Supply:
2.7V ~ 5.3V
MountingType:
Surface Mount

LT5560EDD#TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LT5560EDD#TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LT5560EDD#TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LT5560EDD#TRPBF information

Views：

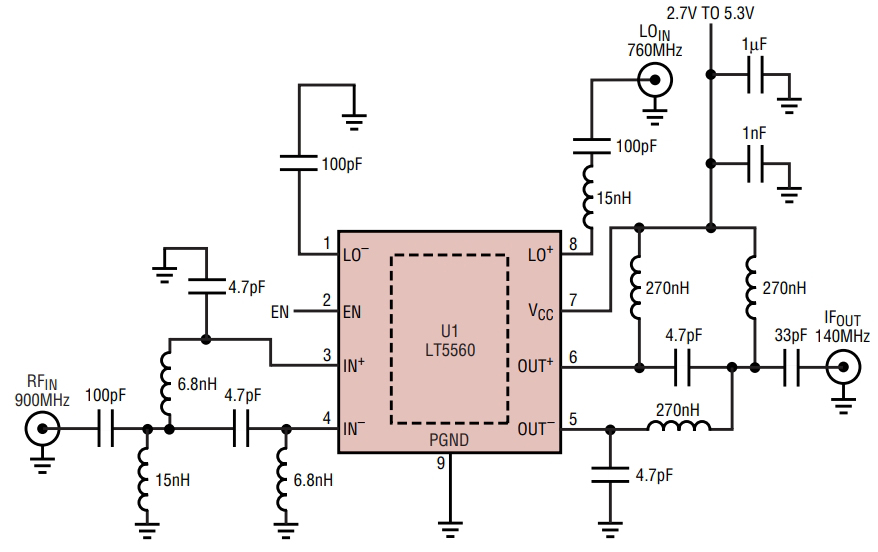

LT5560EDD#TRPBF Typical application Circuitry

LT5560EDD TRPBF

The LT5560EDD#TRPBF is a high-performance, low-power RF mixer IC from Linear Technology, tailored for a wide range of frequency mixing applications. Its design is optimized for use in modern communication systems, where efficient signal processing with minimal power consumption is essential.

Utilization Context: RF Signal Processing in Test Equipment

A notable application for the LT5560EDD#TRPBF is in RF signal processing within test and measurement equipment. In these systems, the mixer is used to modulate or demodulate signals, facilitating the analysis and testing of various RF components and systems.

Characteristic Features

- Broad Frequency Operation: The LT5560EDD#TRPBF is capable of operating over a wide frequency range, making it versatile for different RF applications.

- Efficiency: Its low power consumption design is essential for equipment that runs on batteries or is energy-conscious.

- Noise Figure: The mixer maintains a low noise figure, ensuring the clarity and integrity of the processed signals.

- Linearity: High linearity of the LT5560EDD#TRPBF minimizes signal distortion, a critical factor in accurate RF testing and measurement.

Circuit Design: Implementation in RF Test Equipment

Incorporating the LT5560EDD#TRPBF into RF test equipment involves a comprehensive approach to circuit connections:

1. RF Input Management: The RF input pin (RF+) should be connected to the signal source under test, ensuring that the LT5560EDD#TRPBF receives the signal intended for modulation or demodulation.

2. Local Oscillator (LO) Configuration: The LO input pin (LO+) must be linked to a precise and stable local oscillator source. The LO signal is critical for the mixing process, affecting the accuracy and reliability of signal processing.

3. Intermediate Frequency (IF) Output: Connect the IF output pin (IF+) to the analysis or measurement section of the test equipment. This step is crucial for delivering the processed signal for further evaluation.

4. Stable Power Supply: Provide a clean and stable voltage to the supply pin (V+) of the LT5560EDD#TRPBF. In order to minimize signal artifacts and ensure optimal mixer performance, a reliable power supply is necessary.

5. Effective Grounding: To reduce noise and guarantee steady functioning, adequate grounding is required. It's also important to use decoupling capacitors close to the ground pin (GND) to reduce noise and interference.

Design Challenges

- Impedance Matching: Proper impedance matching at the RF, LO, and IF ports is crucial for maximizing signal transfer and minimizing signal loss or reflections.

- Thermal Management: To disperse heat and guarantee steady operation, even though the LT5560EDD#TRPBF is intended for low power consumption, good thermal management is still required.

- LO Drive Strength: The level of the LO signal should be optimized to ensure efficient mixing without introducing distortion or consuming excessive power.

- PCB Layout Considerations: The layout should be designed to minimize signal path lengths and avoid interference between the RF, LO, and IF signals, ensuring the integrity of the mixed signal.

Integrating the LT5560EDD#TRPBF into RF test equipment or other signal processing applications requires meticulous attention to circuit design, signal integrity, power management, and thermal considerations to fully utilize the mixer's capabilities for efficient and high-fidelity signal processing.
