Texas Instruments LMZM23601V5SILR

Part No.:: LMZM23601V5SILR

Manufacturer:: Texas Instruments

Package:: 10-LDFN Exposed Pad, Module

Datasheet:: LMZM23601V5SILR.pdf

Description:: DC DC CONVERTER 5V

In Stock:: 3337

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMZM23601V5SILR Specifications

Package/Case:
10-LDFN Exposed Pad, Module
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
4V
Voltage-Input(Max):
36V
Voltage-Output1:
5V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
1A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
OCP, SCP, UVLO
OperatingTemperature:
-40°C ~ 125°C
Efficiency:
87%
MountingType:
Surface Mount
Size/Dimension:
0.15 L x 0.12 W x 0.06 H (3.8mm x 3.0mm x 1.6mm)
ControlFeatures:
ApprovalAgency:

LMZM23601V5SILR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMZM23601V5SILR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMZM23601V5SILR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMZM23601V5SILR information

Views：

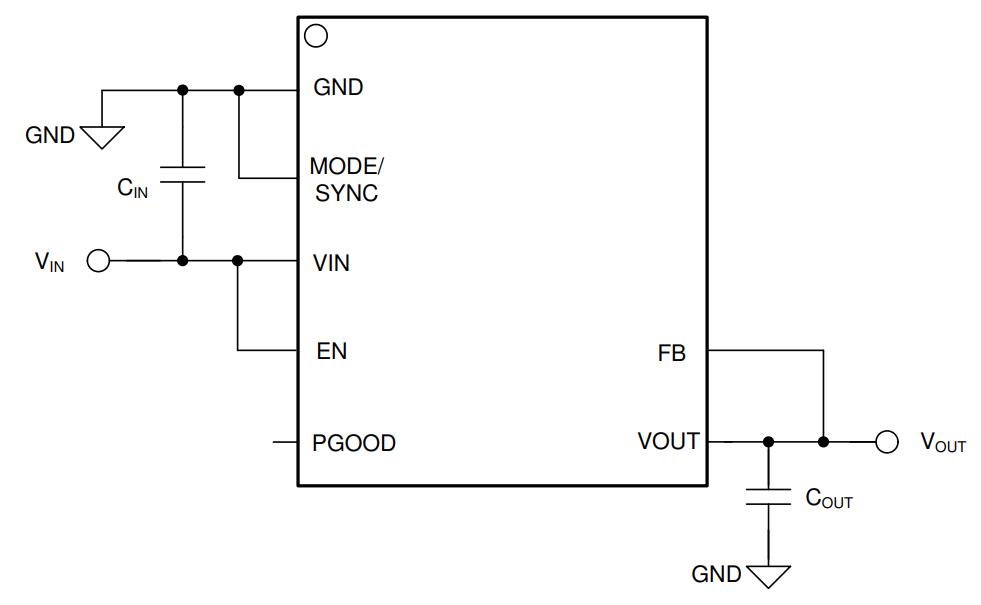

LMZM23601V5SILR Typical application Circuitry

LMZM23601V5SILR

When designing an application circuit with the LMZM23601V5SILR, a power module from Texas Instruments, certain crucial elements need to be considered:

1. Power Input: The LMZM23601V5SILR is designed for an input voltage range of 4V to 36V. In order to protect the component, it's crucial to make sure your power supply stays within this range.

2. Output Voltage: This power module can provide an adjustable output voltage from 1V to 24V. In your design, you will need a feedback mechanism to set the desired output voltage, which is typically done with two resistors.

3. Decoupling Capacitors: Implementing capacitors on both the input and output sides of the power module is beneficial to mitigate any voltage spikes or dips. This is particularly important when the power module is driving a load with a rapidly changing current demand.

4. Thermal Management: The LMZM23601V5SILR is housed in a TOPPED package, which has an integrated heat sink. Despite this, you still need to ensure proper thermal management in your design, especially if the module will be operating near its maximum current rating.

5. Enable Pin: The LMZM23601V5SILR includes an Enable pin that allows the module to be switched on and off digitally. This can be connected to a microcontroller or similar digital logic device if required in your design.

6. Soft-Start Feature: This module has a built-in soft-start feature that ramps up the output voltage gradually when the module is first enabled, thus reducing the inrush current. This is important to prevent any damaging current spikes.

7. Protection Features: The LMZM23601V5SILR comes with a suite of protection features, including over temperature and under voltage lockout. You should ensure your circuit design takes full advantage of these.

8. PCB Layout: A well-designed PCB layout is crucial to ensure stable operation of the power module. To lower EMI, minimize the size of the loop created by the input capacitors, the power module, and the ground plane.

9. Load Consideration: Keep in mind the current rating of the power module, which for the LMZM23601V5SILR is 1A.

10. Grounding: Be careful with your grounding scheme, a solid ground plane on the PCB can help reduce ground noise.

Remember to refer to the LMZM23601V5SILR datasheet and any available reference designs for the most specific and detailed design guidelines.
