Name: LMZ36002RVQR
Brand: Texas Instruments
SKU: LMZ36002RVQR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LMZ36002RVQR

Part No.:: LMZ36002RVQR

Manufacturer:: Texas Instruments

Package:: 43-BQFN Exposed Pad

Datasheet:

Description:: DC DC CONVERTER 2.5-7.5V

In Stock:: 2129

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMZ36002RVQR Specifications

Package/Case:
43-BQFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
SIMPLE SWITCHER®
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
60V
Voltage-Output1:
2.5 ~ 7.5V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
2A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
OCP, OTP, UVLO
OperatingTemperature:
-40°C ~ 105°C
Efficiency:
95%
MountingType:
Surface Mount
Size/Dimension:
0.40 L x 0.40 W x 0.17 H (10.2mm x 10.2mm x 4.4mm)
ControlFeatures:
ApprovalAgency:

LMZ36002RVQR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMZ36002RVQR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMZ36002RVQR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMZ36002RVQR information

Views：

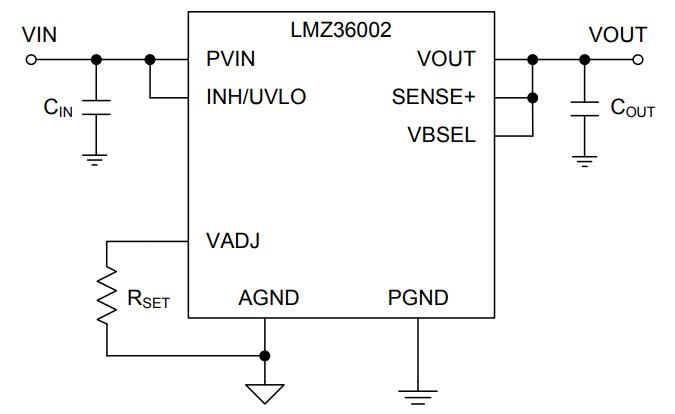

LMZ36002RVQR Typical application Circuitry

LMZ36002RVQR

The LMZ36002RVQR is a power management IC (Integrated Circuit) developed to handle the regulation and conversion of voltage levels in electronic systems.

1. Functionality: This IC operates as a switching voltage regulator, more specifically, a DC-DC step-down (or buck) converter. The primary role of the LMZ36002RVQR is to convert an input voltage to a lower, steady output voltage with high efficiency.

2. Applications: Due to its high efficiency, compact size, and wide input voltage range, the LMZ36002RVQR is employed in a variety of scenarios such as industrial applications, telecommunications equipment, enterprise IT systems, distributed power systems, and general-purpose point-of-load regulation.

3. Key Features: The LMZ36002RVQR boasts a wide input voltage range (4.5V to 60V), an adjustable output voltage, and an output current capability up to 2A. Other notable features include over-temperature protection, adjustable switching frequency, synchronization to an external clock, and an enable pin for system power sequencing.

Considering the broad range of applications, let's pick distributed power architectures as an example scenario to provide a circuit design approach.

Circuit Description:

1. Input Power Connection: The LMZ36002RVQR is VIN pin (Pin 1) should be connected to your power supply. This supply can range between 4.5V and 60V.

2. Output Power Extraction: The regulated output power can be extracted from the VOUT pin (Pin 3). The resistance ratio attached to the FB pin (Pin 2) determines the output voltage.

3. Regulation Support: The regulator can be turned on or off using the EN pin (Pin 4). The regulator should be turned on by pulling this pin high, and off by pulling it low.

4. Feedback Connection: The FB pin (Pin 2) is used to set the desired output voltage by connecting to a network of two resistors.

5. Ground Reference: The PGND pin (Pin 5) provides the ground reference for the module.

Key Design Considerations:

1. Input and Output Capacitors: Proper choice of input and output capacitors is crucial for the stable operation of the LMZ36002RVQR. It's recommended to use low ESR (Equivalent Series Resistance) capacitors that can handle the ripple currents.

2. Thermal Management: Effective heat management strategies need to be considered since power ICs can generate significant heat under heavy load conditions.

3. PCB Layout: The PCB layout should be carefully crafted. It is beneficial to place input and output capacitors close to their respective pins to reduce parasitic resistance and inductance.

4. Protection: The LMZ36002RVQR comes equipped with features such as over-temperature and over-current protection which should be factored in during the design process to prevent potential damage.

Ensure to consult the LMZ36002RVQR is datasheet for precise information when designing and implementing your circuit. Adherence to the device's parameters and capabilities will guarantee optimal performance.
