Texas Instruments LMZ21701SILR

Part No.:: LMZ21701SILR

Manufacturer:: Texas Instruments

Package:: 8-SMD Module

Datasheet:: LMZ21701SILR.pdf

Description:: DC DC CONVERTER 0.9-6V 6W

In Stock:: 2157

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMZ21701SILR Specifications

Package/Case:
8-SMD Module
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SIMPLE SWITCHER® Nano
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
3V
Voltage-Input(Max):
17V
Voltage-Output1:
0.9 ~ 6V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
1A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
OTP, SCP, UVLO
OperatingTemperature:
-40°C ~ 125°C
Efficiency:
95%
MountingType:
Surface Mount
Size/Dimension:
0.14 L x 0.14 W x 0.07 H (3.5mm x 3.5mm x 1.8mm)
ControlFeatures:
ApprovalAgency:

LMZ21701SILR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMZ21701SILR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMZ21701SILR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMZ21701SILR information

Views：

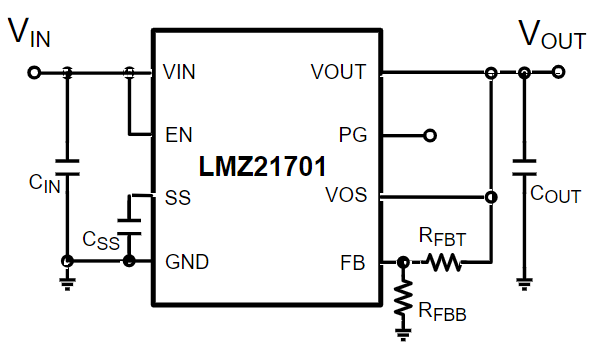

LMZ21701SILR Typical application Circuitry

LMZ21701SILR

The LMZ21701SILR is part of Texas Instruments' LMZ series, which consists of power modules that integrate a step-down (buck) regulator with power inductor and passives into a single package. This particular module is designed for space-constrained applications that require efficient power conversion with minimal external components.

1. Input Voltage (VIN Pin): Connect the VIN pin to your power source. The LMZ21701SILR is capable of handling a range of input voltages, but the specific level should match the requirements of your application, in line with the module's datasheet.

2. Output Voltage (VOUT Pin): The controlled output voltage is supplied by the VOUT pin. It should be connected to the load or the part of the circuit that requires power. The output voltage is typically determined by the internal circuitry of the module and external feedback components, if applicable.

3. Ground (GND Pin): The system's ground must be linked to the GND pin. This is essential for the proper operation of the power module.

4. Enable (EN Pin): The EN pin is used to turn the module on or off. Applying a high logic signal enables the module, while a low signal disables it. This can be connected to a control signal or tied to VIN if the module should always be on when power is applied.

5. Feedback (FB Pin): The FB pin is used for feedback in adjustable output versions of the module. The resistor divider network that controls the output voltage is linked to it. For fixed output versions, this may not be applicable.

6. Soft-Start (SS/TR Pin): This pin controls the soft-start functionality, which limits inrush current during startup. A capacitor can be connected to this pin to set the soft-start time.

7. Additional Pins: Depending on the specific model, there may be additional pins for functions such as power good (PG), synchronization (SYNC), or other features. These ought to be utilized in accordance with your application's specifications.

The LMZ21701SILR is known for its compact size and ease of use, providing an integrated solution for power regulation in space-limited applications. Because to its high degree of integration, fewer external components are required, which makes circuit design and layout simpler.

In summary, the LMZ21701SILR, a member of the LMZ series, is a highly integrated power module designed for efficient voltage regulation in compact spaces. Proper connection of each pin is crucial for the module to function effectively. For detailed electrical characteristics and specific connection guidance, the datasheet of the LMZ21701SILR is an indispensable reference.
