Texas Instruments LMV7239M5X

Part No.:: LMV7239M5X

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LMV7239M5X.pdf

Description:: IC COMP ULP R-R INPUT SOT23-5

In Stock:: 2499

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMV7239M5X Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Not For New Designs
Type:
General Purpose
NumberofElements:
1
OutputType:
Push-Pull, Rail-to-Rail
Voltage-SupplySingle/Dual(±):
2.7V ~ 5.5V
Voltage-InputOffset(Max):
6mV @ 5V
Current-InputBias(Max):
0.4µA @ 5V
Current-Output(Typ):
-
Current-Quiescent(Max):
95µA
CMRRPSRR(Typ):
67dB CMRR, 85dB PSRR
PropagationDelay(Max):
62ns
Hysteresis:
-
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LMV7239M5X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMV7239M5X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMV7239M5X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMV7239M5X information

Views：

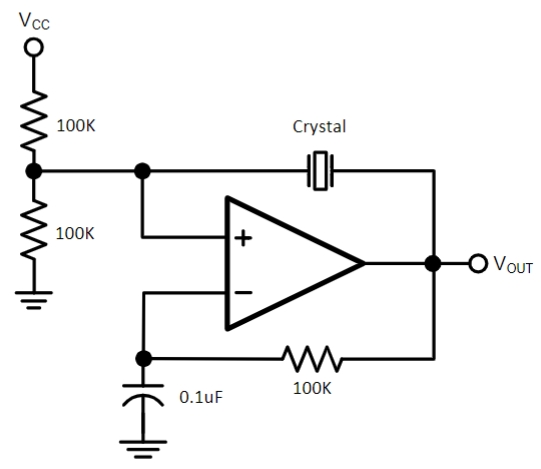

LMV7239M5X Typical application Circuitry

LMV7239M5X

LMV7239M5X is a low-power, low-voltage comparator from Texas Instruments, featuring a rail-to-rail input and an open-drain output. It operates with a supply voltage range from 2.7V to 5.5V, making it an excellent choice for battery-operated devices, portable electronics, and systems where power efficiency is critical. The device comes in a tiny SOT-23-5 package, which is ideal for space-constrained applications.

Application Scenario

A typical application for LMV7239M5X is in a power management system for a portable device, where it can be used to monitor the charge status of the battery and signal when the battery voltage falls below a predetermined threshold, indicating a low battery condition.

Parameter Features

- Supply Voltage Range: 2.7V to 5.5V, accommodating a wide array of low-voltage applications.

- Low Power Consumption: Ensures minimal drain on the battery, extending the operational life of portable devices.

- Output Type: Open-drain, facilitating easy interface with different logic levels and allowing for wired-OR configurations.

- Rail-to-Rail Input: Enables the comparator to handle input signals that extend all the way to the supply rails.

Circuit Design Considerations

When integrating LMV7239M5X into a circuit, it's important to consider the input signal levels, ensuring they do not exceed the supply voltage. Additionally, the selection of an appropriate pull-up resistor for the open-drain output is crucial, as is the stability of the power supply and the cleanliness of the input signals to avoid false triggering.

Detailed Circuit Connection

Supply Voltage

Connect the device's VCC pin (pin 5) to a clean, stable power source within the 2.7V to 5.5V range. This ensures proper operation within the specified supply voltage range of LMV7239M5X.

Reference Voltage

Establish a reference voltage at the non-inverting input (IN+, pin 3) using a stable voltage reference or a resistor divider network from the supply voltage. This reference voltage will serve as the threshold for battery voltage monitoring.

Monitoring Input

Connect the battery voltage, possibly through a voltage divider to scale the voltage appropriately, to the inverting input (IN-, pin 2). This configuration allows LMV7239M5X to compare the battery voltage against the set reference threshold.

Output Configuration

Since the OUT pin (pin 1) is open-drain, attach a pull-up resistor to this pin, leading to VCC or another acceptable voltage level within the device's operating range. The choice of the pull-up resistor value influences the output logic level and should be compatible with the input logic levels of subsequent stages in the circuit.

Ground Connection

The GND pin (pin 4) must be securely connected to the system's ground to ensure a stable reference point for the comparator's operations.

In circuits utilizing LMV7239M5X, careful attention should be paid to the layout to minimize noise, particularly on the input and supply lines, as noise can lead to spurious comparator outputs. The design of the voltage divider (if used) should balance between minimizing power consumption and maintaining sufficient accuracy for the battery voltage monitoring function. Proper decoupling near the power supply pin is also recommended to ensure stable operation of the comparator.
