Texas Instruments LMR36506MSC5RPERQ1

Part No.:: LMR36506MSC5RPERQ1

Manufacturer:: Texas Instruments

Package:: 9-VFQFN

Datasheet:: LMR36506MSC5RPERQ1.pdf

Description:: 3-V TO 65-V, 0.6-A BUCK CONVERTE

In Stock:: 3177

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMR36506MSC5RPERQ1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
Function:
Step-Down
OutputConfiguration:
Positive
Topology:
Buck
OutputType:
Fixed
NumberofOutputs:
1
Voltage-Input(Min):
3V
Voltage-Input(Max):
65V
Voltage-Output(Min/Fixed):
5V
Voltage-Output(Max):
-
Current-Output:
600mA
Frequency-Switching:
2.2MHz
SynchronousRectifier:
Yes
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount, Wettable Flank

LMR36506MSC5RPERQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMR36506MSC5RPERQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMR36506MSC5RPERQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMR36506MSC5RPERQ1 information

Views：

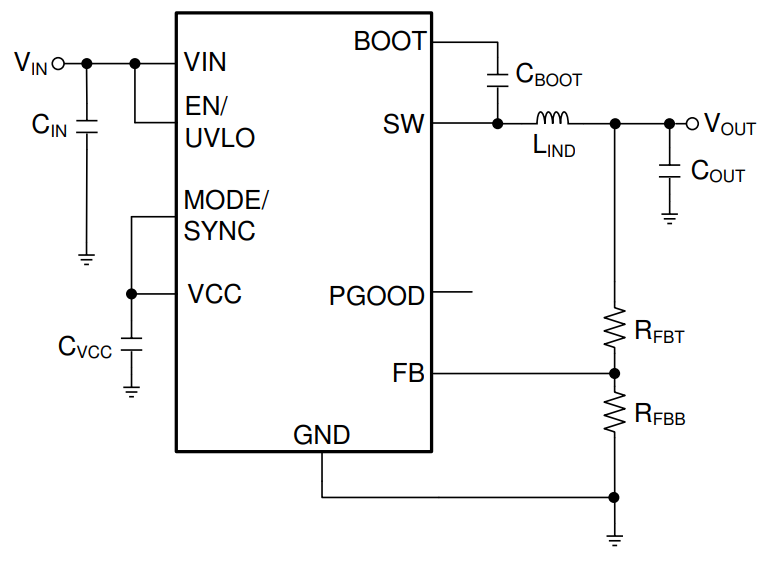

LMR36506MSC5RPERQ1 Typical application Circuitry

The LMR36506MSC5RPERQ1 is a step-down, buck converter integrated circuit (IC), designed to efficiently reduce a higher direct current (DC) voltage to a lower DC voltage.

Functionalities: The LMR36506MSC5RPERQ1 provides a simple, cost-effective solution for stepping down DC voltages, making it ideal for a wide range of applications requiring lower voltages.

Application Scenarios: The LMR36506MSC5RPERQ1 finds its utility in a variety of applications. For instance, automotive systems, power supply for microcontrollers and microprocessors, telecommunications systems, and battery-powered devices often employ this chip due to its high efficiency and wide input voltage range.

Key Features and Parameters: This chip operates with an input voltage range from 3.8V to 65V and can deliver an output current up to 0.6A. Its high efficiency (up to 92%), frequency spread spectrum operation for low EMI, and internal compensation make it a handy device in various circumstances. It also offers features for over-temperature, over-voltage, and under-voltage safety in addition to an adjustable soft start.

Circuit Design:

- Input and Output Pins (VIN, Pin 6; SW, Pin 1): VIN is the supply voltage input, and SW is the switching node, connected to the inductor.

- Feedback and Compensation Pins (FB, Pin 2; COMP, Pin 4): FB is the feedback voltage pin. A resistor divider from the output voltage to this pin sets the output voltage. The control loop is stabilized using COMP.

- Soft Start and Enable Pins (SS, Pin 3; EN, Pin 5): SS controls the startup behavior of the IC. EN is used to enable the IC.

Design Considerations: When using LMR36506MSC5RPERQ1, the selection of inductor and capacitors plays a crucial role. These should be chosen keeping in mind the application requirements and the IC's operational limits. Also, the PCB layout should minimize the loop area of the high-frequency switching current path to reduce noise and EMI.

Another significant aspect to consider is thermal management. Care should be taken to ensure the IC doesn't exceed its maximum junction temperature. The power dissipation, ambient temperature, and thermal resistance of the package need consideration.

To wrap it up, always refer to the datasheet of the LMR36506MSC5RPERQ1 for a comprehensive understanding of its functionality and requirements.
