Texas Instruments LM46001PWP

Part No.:: LM46001PWP

Manufacturer:: Texas Instruments

Package:: 16-PowerTSSOP (0.173, 4.40mm Width)

Datasheet:: LM46001PWP.pdf

Description:: IC REG BUCK ADJ 1A 16HTSSOP

In Stock:: 2495

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM46001PWP Specifications

Packaging:
Tube
Series:
SIMPLE SWITCHER®
ProductStatus:
Active
Function:
Step-Down
OutputConfiguration:
Positive
Topology:
Buck
OutputType:
Adjustable
NumberofOutputs:
1
Voltage-Input(Min):
3.5V
Voltage-Input(Max):
60V
Voltage-Output(Min/Fixed):
1V
Voltage-Output(Max):
28V
Current-Output:
1A
Frequency-Switching:
200kHz ~ 2.2MHz
SynchronousRectifier:
Yes
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

LM46001PWP this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM46001PWP price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM46001PWP to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM46001PWP information

Views：

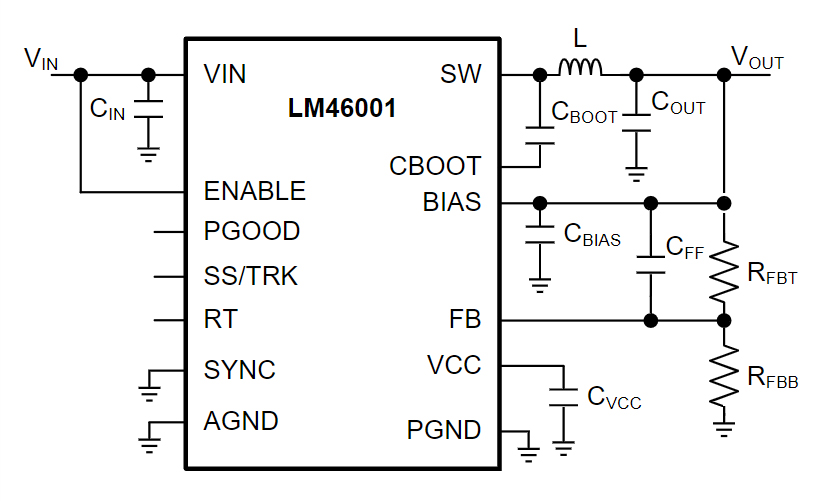

LM46001PWP Typical application Circuitry

LM46001PWP

The LM46001PWP is a wide input voltage range, synchronous step-down DC-DC regulator, well-suited for a variety of applications. Here is a detailed guide to connecting this IC in your circuit, focusing on specific pins.

1. Input Voltage (VIN, Pin 1): Hook up this pin to the source voltage, ensuring it falls within the recommended input voltage range. For noise suppression, a ceramic capacitor of about 22uF should be connected very close to this pin and the ground.

2. Switch Node (SW, Pin 6 and Pin 7): These pins connect to the internal switching node of the LM46001PWP. Connect your output inductor here; typically, a 2.2uH to 10uH inductor is used, depending on the output voltage and current.

3. Ground (GND, Pin 4): This is the ground pin for the entire LM46001PWP circuit. To minimize noise and ensure accurate voltage readings, make sure this pin is properly connected to your system's ground plane.

4. Feedback (FB, Pin 9): The voltage feedback loop uses this pin. To control the output voltage level, it is linked to a resistive divider from the output voltage. The resistor values can be determined based on the formulas available in the LM46001PWP datasheet.

5. Enable (EN, Pin 10): This pin serves as the enable/disable control for the LM46001PWP. To activate the regulator, apply a logic high to this pin. To deactivate, apply a logic low.

6. Power Good (PG, Pin 11): The 'Power Good' pin goes high when the output reaches its specified voltage. You can connect this pin to a microcontroller for system monitoring, although this is optional.

7. Soft-Start (SS/TR, Pin 8): The soft-start pin is used to manage the inrush current. The soft-start time may be adjusted by connecting a capacitor between this pin and ground.

8. Bootstrap (BOOT, Pin 5): Connect a small ceramic capacitor (usually 0.1uF) between this pin and the SW pin. This is necessary for the driving of the high-side gate.

9. Adjustable Frequency (RT, Pin 3): A resistor to ground sets the oscillator frequency for the LM46001PWP. The value can be determined based on your application's requirements and the guidelines in the datasheet.

To achieve the best performance from your LM46001PWP, make sure to also follow best practices for PCB layout, particularly concerning thermal management and capacitor placements. Consult the official LM46001PWP datasheet for additional details and application notes.
