Name: LM4040A25IDBZR
Brand: Texas Instruments
SKU: LM4040A25IDBZR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM4040A25IDBZR

Part No.:: LM4040A25IDBZR

Manufacturer:: Texas Instruments

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: LM4040A25IDBZR.pdf

Description:: IC VREF SHUNT 0.1% SOT23-3

In Stock:: 2262

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM4040A25IDBZR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
ReferenceType:
Shunt
OutputType:
Fixed
Voltage-Output(Min/Fixed):
2.5V
Voltage-Output(Max):
-
Current-Output:
15 mA
Tolerance:
±0.1%
TemperatureCoefficient:
100ppm/°C
Noise-01Hzto10Hz:
-
Noise-10Hzto10kHz:
35µVrms
Voltage-Input:
-
Current-Supply:
-
Current-Cathode:
80 µA
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

LM4040A25IDBZR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM4040A25IDBZR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM4040A25IDBZR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM4040A25IDBZR information

Views：

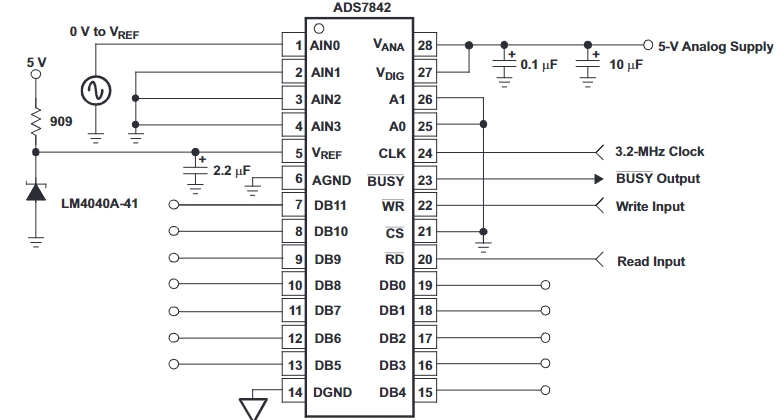

LM4040A25IDBZR Typical application Circuitry

LM4040A25IDBZR

The LM4040A25IDBZR is a precision, shunt-mode voltage reference chip. With its excellent accuracy and stability, it produces a fixed voltage output that is perfect for use in reference voltage applications.

Applications: This chip is commonly used in applications such as power supply monitoring, battery-operated devices, data acquisition systems, and instrumentation where a stable reference voltage is crucial.

Parameters: Key features of the LM4040A25IDBZR include a fixed output voltage of 2.5V, low temperature coefficient, low dynamic impedance, and wide operating current range. It also provides low noise performance and outstanding long term stability.

Circuit Design for a Typical Application

Let's consider designing a simple voltage reference circuit for a data acquisition system using the LM4040A25IDBZR chip.

1. Voltage Reference Selection: Choose the LM4040A25IDBZR for its 2.5V output, which is suitable for many analog-to-digital converters (ADCs) as a reference voltage.

2. Power Supply Connection: Connect the anode of the LM4040A25IDBZR (pin 1) to the ground of the circuit. This is a critical step as the device operates in a shunt mode.

3. Output Voltage Connection: Connect the cathode of the LM4040A25IDBZR (pin 2) to the positive input of the ADC or any other component requiring a reference voltage. This pin provides the stable 2.5V output.

4. Bypass Capacitor: Place a bypass capacitor (C1) between the cathode of the LM4040A25IDBZR and ground to filter out any noise and ensure stability. A value of 0.1µF to 1µF is typically sufficient.

5. Current Limiting Resistor: Connect a resistor (R1) in series with the LM4040A25IDBZR to limit the current through the device. The value of R1 depends on the input voltage and the desired operating current. For example, if the input voltage is 5V and the desired current is 1mA, R1 would be calculated as (5V - 2.5V) / 1mA = 2.5kΩ.

Design Considerations

- Operating Current: Ensure that the operating current through the LM4040A25IDBZR is within the specified range for optimal performance and stability.

- Thermal Considerations: Manage heat dissipation, especially in high-current applications, to maintain accuracy and prevent thermal drift.

- Input Voltage: The input voltage should be sufficiently higher than the output voltage to ensure proper operation but within the maximum specified limit to avoid damage.

- Noise Filtering: Use appropriate bypass capacitors to minimize noise and ripple on the reference voltage.

You can use the LM4040A25IDBZR chip in your voltage reference design to ensure precise and steady performance by carefully following these guidelines and taking your application's requirements into account.
