Texas Instruments LM397MFX/NOPB

Part No.:: LM397MFX/NOPB

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LM397MFX/NOPB.pdf

Description:: IC COMPARATOR VOLT SGL SOT23-5

In Stock:: 186

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM397MFX/NOPB Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
General Purpose
NumberofElements:
1
OutputType:
CMOS, Open-Collector, TTL
Voltage-SupplySingle/Dual(±):
5V ~ 30V, ±2.5V ~ 15V
Voltage-InputOffset(Max):
7mV @ 30V
Current-InputBias(Max):
0.25µA @ 5V
Current-Output(Typ):
13mA @ 5V
Current-Quiescent(Max):
2mA
CMRRPSRR(Typ):
-
PropagationDelay(Max):
940µs
Hysteresis:
-
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LM397MFX/NOPB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM397MFX/NOPB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM397MFX/NOPB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM397MFX/NOPB information

Views：

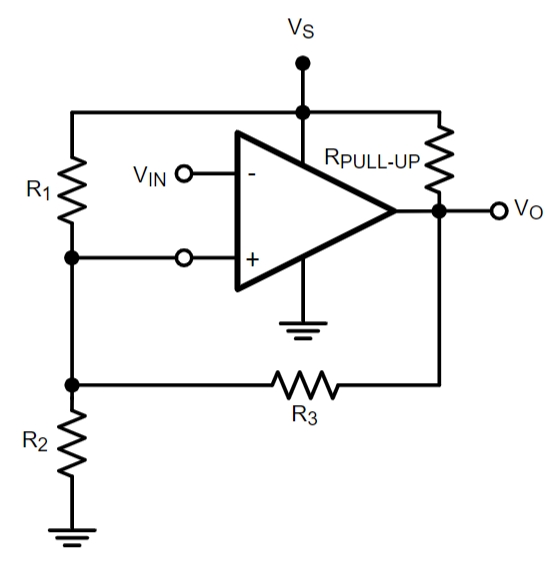

LM397MFX/NOPB Typical application Circuitry

LM397MFX NOPB

The LM397MFX/NOPB is a single voltage comparator designed for applications requiring a simple, cost-effective solution for comparing voltages to determine the larger of two inputs. It is widely used in applications such as battery chargers, switch-mode power supplies, and general signal detection where a decision needs to be made based on the comparison of two voltages.

Application Scenario: Battery Charge Level Indicator

A common application for the LM397MFX/NOPB is in a battery charge level indicator circuit, where it can be used to monitor the voltage level of a battery and indicate whether the battery is above or below a certain voltage threshold.

Detailed Circuit Connection for Battery Charge Level Indicator

To use the LM397MFX/NOPB in a battery charge level indicator, the following detailed connections should be made:

- Voltage Reference Connection: Connect a stable voltage reference to pin 3 (Non-Inverting Input) of the LM397MFX/NOPB. The threshold value that the battery voltage is measured against is established by this reference voltage.

- Battery Voltage Input: Connect the battery voltage (through a voltage divider if necessary to scale the voltage) to pin 2 (Inverting Input) of the LM397MFX/NOPB. This allows the comparator to monitor the battery voltage.

- Output Indicator: Connect pin 1 (Output) of the LM397MFX/NOPB to an LED (or other visual/audible indicator) through a current-limiting resistor. Depending on whether the battery voltage is above or below the threshold, the output will go high or low, turning on or off the LED.

- Power Supply and Grounding: Connect the positive supply voltage to pin 5 (Vcc) and the ground to pin 4 (GND) of the LM397MFX/NOPB.Make that the supplied voltage is within the LM397MFX/NOPB's designated operating range.

Design Considerations

When designing a circuit with the LM397MFX/NOPB, several important factors should be considered:

- Hysteresis Addition: To prevent rapid switching near the threshold voltage due to noise or small voltage fluctuations, add hysteresis to the comparator circuit.Refeeding a tiny percentage of the output voltage to the non-inverting input will accomplish this.

- Input Voltage Range: Ensure that the input voltages at the inverting and non-inverting inputs are within the common-mode range specified for the LM397MFX/NOPB.

- Power Supply Decoupling: Place a decoupling capacitor close to the LM397MFX/NOPB's power supply pins to filter out noise and provide a stable operating environment for the comparator.

- Load Considerations: The output of the LM397MFX/NOPB may need to drive a load (such as an LED indicator). Ensure that the output current does not exceed the maximum specified for the LM397MFX/NOPB, and use an appropriate current-limiting resistor for LEDs.

By carefully implementing these design considerations and understanding the specific connections required for the battery charge level indicator application, the LM397MFX/NOPB can be effectively utilized to provide a simple and reliable indication of battery status.
